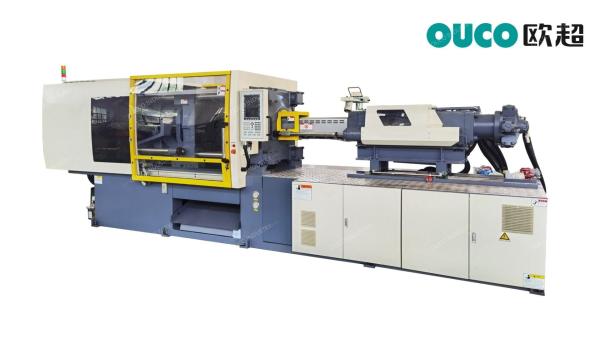

SGS High Speed Injection Machine CWI-110GF Quiet Plastic Injection Molding Machine
SGS High Speed Injection Machine CWI-110GF Quiet Plastic Injection Molding Machine
Specifications
Brand Name :
OUCO
Model Number :
OUCO-CWI-110GF
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
High Speed Injection Molding Machine CWI-110GF High Injection Speed But Quiet
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

High Speed Injection Molding Machine CWI-110GF High Injection Speed But Quiet

Product Advantages

High-speed, high pressure and high response suits molding high precision and thin goods.

High rigied single-cylinder injection unit make the respond faster and repeated injection more precision.

Movable injection unit is convenient for changing screw.

Long mold opeining stroke and long space between Tie-Bars can contain bigger molds.

Movable platen with self-lubricant axletree makes the machine quiet, smooth and clean.

Parameters

MODEL CWI-110GF
CLAMPING UNIT clamping force (kN) 1100
Tie bar distance W×L (mm) 420x420
Max.Daylight(mm) 400
Max. mold thickness (mm) 450
Min. mold thickness(mm) 150
Platen Dimensions W×L (mm) 605x605
Ejector Stroke(mm) 110
Ejector Force(Kn) 38
Ejector Quantily 5
Injection unit 310I
Injection Unit Screw Diameter(mm) 28 32 35
Screw L/D ratio 23 23 21
Theoretical injection volume (cm3) 89 117 140
Shot Weight (PS) g 82 108 129
Injection Pressure(MPa) 319 244 204
Injection Speed (mm/s) 190
Injection Rate (cm3/s) 117 153 183
Screw Speed (rpm) 400
Other Motor Power (Kw) 24
pump capacity(L/min) 138
Heater Power (Kw) 7.11
Machine size L×W×H (mm) 4255x1430x1690
