Specifications
Brand Name :
Elite
Model Number :
Semi-Automatic
Certification :
Iso9001
Place of Origin :
China
MOQ :
1
Price :
4500USD/UNIT
Payment Terms :
D/P,T/T,Western Union
Supply Ability :
10000unit/month
Delivery Time :
3-10days
Packaging Details :
wooden package
plastic processed :
PET, PE/PP
voltage :
Acoording customer country
core components :
Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, other
warranty :
1 Year
neck diameter(mm) :
38
max.bottle diameter(mm) :
350
clamping force (kn) :
80
weight (kg) :
600
dimension(l*w*h) :
1600*610*1580mm
Description

Semi Automatic PET Bottle Blow Moulding Machine Price Used HDPE Bottle Making Line


1: DA-23 semi-automatic bottle blowing machine is suitable for 10ml-3L of various shapes of mineral water bottles, beverage bottles, daily chemical bottles,etc.

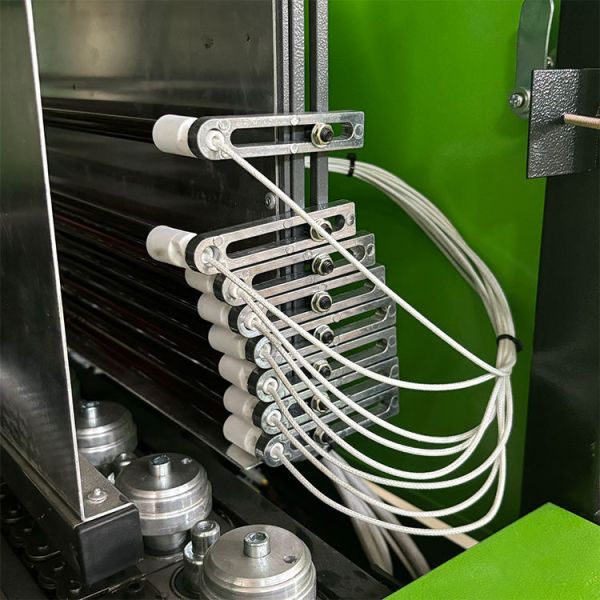

2: The machine adopts far infrared rotary oven,frequency control, constant temperature control, uniform heating, so as to achieve the best blowing effect.

3: The use of hyperbolic arm four pull rod mold structure, cross balance fixed sliding, to ensure that the machine under high pressure does not expand the pressure blow bottle forming.

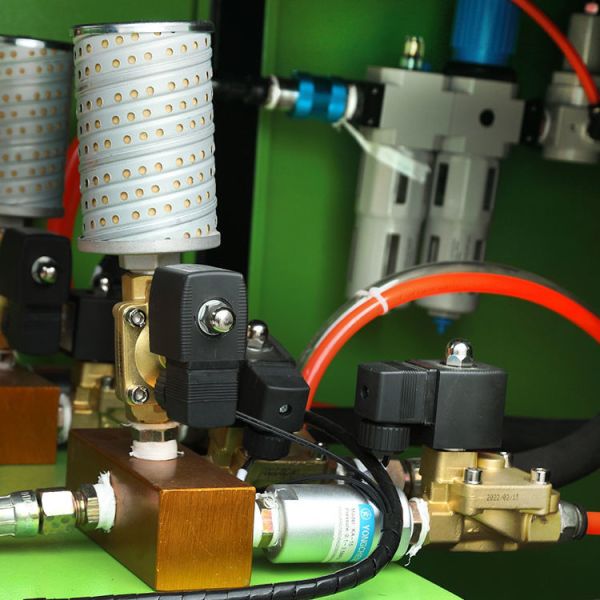

4: Gas path is divided into high pressure blowing and low pressure action tow pares, low pressure mechanical die closing, sealing, stretching; High pressure blow bottle forming. 5: Computer automatic control, easy operation, small size, less investment, one person operation, simple and safe.





Molding
Clamping force
80KG
Clamping stroke
140mm

Stretching stroke
360mm
Min mould thickness
120mm
Max mould thickness
200mm
Template effective area
340*350mm
Number of cavity
2cavities
Theoretical output
800-1100bph

Electrical System
Power of machine
0.1kw
Installed Power of heater
9kw
Number of Lamp Layers
10Layers


Air Compressor
Operating Pressure
7-9kg/cm²
Low pressure air consumption
800ltr/min
Blowing Pressure
≤30kg/cm²
High pressure air consumption
1600ltr/min


Container
Container volume
0.1-3L
Bottle height
≤350mm
Preform inner diameter
12-75mm
Product material
PET
Blower machine
Blower size
1600*610*1580mm
Blower weight
600kg
Heater machine
Heater size
1710*570*1360mm
Heater weight
200kg
