120x90 Resolution 12μm Pixel Pitch Infrared Thermal Camera Core for Smart Home Integration
120x90 Resolution 12μm Pixel Pitch Infrared Thermal Camera Core for Smart Home Integration
120x90 Resolution 12μm Pixel Pitch Infrared Thermal Camera Core for Smart Home Integration
120x90 Resolution 12μm Pixel Pitch Infrared Thermal Camera Core for Smart Home Integration
Specifications
Brand Name :
SensorMicro
Model Number :
TIMO112
Certification :
ISO9001:2015; RoHS; Reach
Place of Origin :
Wuhan, Hubei Province, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T
Resolution :
120x90
Pixel Pitch :
12μm
Spectral Range :
8~14μm
Temperature Measurement Range :
-20℃~+550℃
Weight (g) :
1.8g
Size (mm, without FPC) :
12.6mm×12.6mm×8.8mm
Description

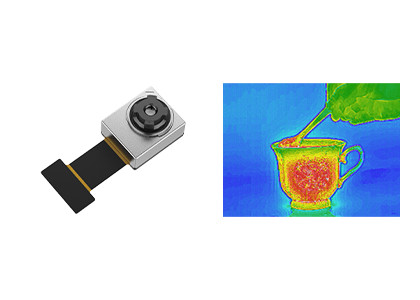

Micro Infrared Thermal Camera Core 120x90/12μm for Smart Home
Product Overview

TIMO112 infrared thermal module integrates 120x90/12μm wafer level package (WLP) infrared detector and is optimized for applications requiring minimal size, weight, power, and cost (SWaP-C). Its ultra-compact structure enables easy integration into various smart devices, thermal imagers, or mobile terminals with strict requirements on cost, size, and weight.

Compared with traditional temperature measuring tools, the TIMO112 IR sensor module offers greater sensitivity than common thermopile arrays. Utilizing wafer level packaging technology, this thermal camera module provides exceptional value for infrared imaging applications with stringent cost, size, and weight requirements.

Main Features
  • Ultra-Miniature Module with Ultimate SWaP-C Optimization
    Wafer-level packaged detector + wafer-level optics + micro-electromagnetic valve shutter
  • Proven Performance and Rapid Response
    Ultra-low power design (as low as 9mW) with smooth 25Hz frame rate imaging
  • Flexible and Eco-friendly
    Supports SPI image interface, compatible with various embedded platforms
Product Specifications
Model TIMO112
Resolution 120×90
Pixel Size 12μm
Spectral Response 8~14μm
Focus Mode Focus Free
Lens (HFOV/FL) 50°/1.6mm
Weight 1.8g
Size (without FPC) 12.6mm×12.6mm×8.8mm
Number of PINs 40PIN
Output Data 14bit Raw
Frame Rate 25Hz
Temperature Measurement Range -20℃~+550℃ (-20℃~+150℃ | +100℃~550℃)
Temperature Measurement Accuracy Greater of ±2℃ / ±2%
Operating Temperature -20℃~+60℃
Humidity 5%~85%
Storage Temperature -45℃~+85℃
Certification RoHS 2.0 / Reach
Industrial Applications

The TIMO112 thermal camera module is widely used in thermography, intelligent hardware, smart building, smart home, AIoT, and various other industrial applications.

120x90 Resolution 12μm Pixel Pitch Infrared Thermal Camera Core for Smart Home Integration
Our Service Approach
Pre-Sales
  • Requirement Analysis
  • Scenario Assessment
  • Product Selection
  • Customized Solutions
Deployment
  • Rapid Delivery
  • System Integration & Testing
  • Technical Training
  • Application Guidance
After-Sales
  • Remote Diagnostics
  • Warranty Service
  • Firmware Upgrades
  • Technical Maintenance
Frequently Asked Questions
What is infrared thermal imaging?

In nature, all objects with temperatures above absolute zero (-273℃) radiate infrared rays. By measuring the infrared radiation temperature difference between targets and their background using an infrared camera detector, different infrared images (thermal images) can be obtained.

How do infrared detectors work?

Infrared radiation emitted by targets enters the thermal detector's sensing range. The infrared detector converts radiation signals of varying intensity into corresponding electrical signals, which are then amplified and processed to form infrared images visible to the naked eye.

What's the advantage of uncooled infrared detectors?

Uncooled infrared focal plane detectors operate at room temperature without requiring Integrated Dewar Cooler Assembly (IDCA) devices. They offer advantages including fast startup, low power consumption, small size, light weight, long lifespan, and low cost. While sensitivity may not match cooled detectors, their cost-effectiveness makes them ideal for broader applications.
