Thermal Camera Core with 640x512 Resolution 8μm Pixel Pitch and ≤30mK NETD Uncooled LWIR Infrared Detector
Thermal Camera Core with 640x512 Resolution 8μm Pixel Pitch and ≤30mK NETD Uncooled LWIR Infrared Detector
Thermal Camera Core with 640x512 Resolution 8μm Pixel Pitch and ≤30mK NETD Uncooled LWIR Infrared Detector
Thermal Camera Core with 640x512 Resolution 8μm Pixel Pitch and ≤30mK NETD Uncooled LWIR Infrared Detector
Thermal Camera Core with 640x512 Resolution 8μm Pixel Pitch and ≤30mK NETD Uncooled LWIR Infrared Detector
Thermal Camera Core with 640x512 Resolution 8μm Pixel Pitch and ≤30mK NETD Uncooled LWIR Infrared Detector
Thermal Camera Core with 640x512 Resolution 8μm Pixel Pitch and ≤30mK NETD Uncooled LWIR Infrared Detector
Thermal Camera Core with 640x512 Resolution 8μm Pixel Pitch and ≤30mK NETD Uncooled LWIR Infrared Detector
Thermal Camera Core with 640x512 Resolution 8μm Pixel Pitch and ≤30mK NETD Uncooled LWIR Infrared Detector
Thermal Camera Core with 640x512 Resolution 8μm Pixel Pitch and ≤30mK NETD Uncooled LWIR Infrared Detector
Specifications
Resolution :
640x512
Pixel Pitch :
8μm
Brand Name :
SensorMicro
Model Number :
iTL608
Certification :
ISO9001:2015; RoHS; Reach
Place of Origin :
Wuhan, Hubei Province, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T
Supply Voltage :
4-5.5V
Power Consumption :
0.4W
Frame Rate :
30/50Hz
Typical NETD :
≤30mK
Description
Thermal Camera Core with Uncooled 640x512/8μm Wafer Level Package Infrared Detector
Product Overview

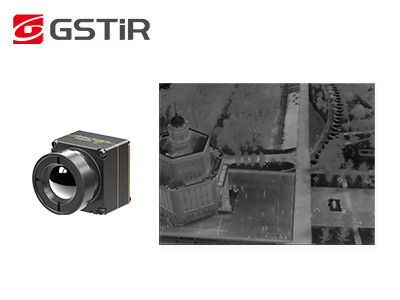

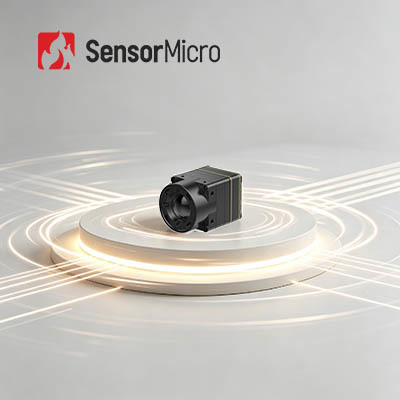

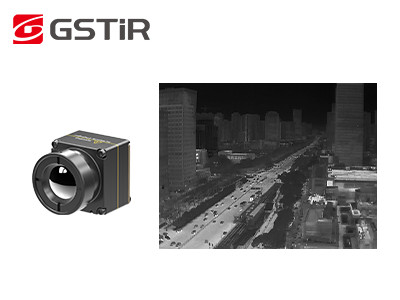

The iTL608 is a high-performance VOx uncooled LWIR thermal camera core with industry-leading integration and stability. Dimensionally, it features a compact size of 13 * 13 * 18.3 mm and a total weight of 6.7 ±1.5 g (6mm lens included), minimizing payload and space occupation for portable systems. In terms of imaging performance, it utilizes an 8μm ultra-fine pixel sensor with 640 * 512 native resolution and achieves an ultra-low NETD of ≤30mK, providing outstanding temperature discrimination capability for ambient target detection in the 8-14μm LWIR spectrum. Integrated NUC non-uniformity correction and 3DNR 3D noise reduction algorithms effectively optimize image flatness and suppress image artifacts. For development compatibility, it offers optional optical lenses, multiple video output interfaces (MIPI/USB 2.0/BT.656), RAW/YUV dual data output, and serial/I2C control protocols, facilitating efficient customization and integration for industrial and commercial thermal imaging systems.

Main Features
  • Extreme Lightweight Design
    Compact size of 13 * 13 * 18.3 mm and a weight of 6.7 ±1.5 g (including a 6 mm lens)
    Among the highest levels of integration in its class
  • High Sensitivity, Precise Detection
    8μm ultra-small pixel size with 640 * 512 resolution, delivering fine detail and clear images
    Typical NETD ≤ 30mK, enabling reliable detection of subtle temperature differences
  • Simplified Development, Fast Integration
    Multiple optical lens options available to meet diverse application requirements
    Supports multiple image output interfaces, including MIPI/USB 2.0/BT.656
    RAW and YUV image data output, with control via serial port/I2C
Product Specifications
Model iTL608
IR Detectors Indicators
Sensitive Material VOx
Resolution 640*512
Pixel Size 8μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤30mK
Image Processing
Digital Frame Rate 30/50Hz
Start-up Time ≤6s
Digital Video RAW/YUV/TMP
Image Algorithm NUC/3DNR/DNS/DRC/EE
Image Display 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
PC Software
Software Module Control & Video Display
Electrical
Standard External Interface 34Pin_Connector Interface: BP04SD-34-0065-R0
Communication Interface TTL-232/USB2.0/I2C
Digital Video Interface MIPI/USB2.0/BT.656
Supply Voltage 4-5.5V
Typical Power Consumption 0.4W
Mechanical
Size (including lens) With 6mm lens: 13 * 13 * 18.3 mm (lens outer diameter Φ12.3 mm)
With 8.7mm lens: 13 * 13 * 19.8 mm (lens outer diameter Φ15.6 mm)
With 16.7mm lens: 13 * 13 * 27.9 mm (lens outer diameter Φ22.2 mm)
With 30mm lens: 13 * 13 * 39 mm (lens outer diameter Φ36 mm)
Weight (including lens) 6.7±1.5g (6mm lens)
7.5±1.5g (8.7mm lens)
17±1.5g (16.7mm lens)
42.7±1.5g (30mm lens)
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35grms, Random Vibration, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times
Certification ROHS2.0/REACH
Optical Lens Fixed Focus Athermal: 6/8.7/16.7/30mm
Industrial Applications
The iTL612R Pro thermal imaging module can be used in fields of Forest Firefighting, Power Maintenance, Photovoltaic Inspection, Security Monitoring, Wearable Devices, Portable Devices etc.
Our Product Line
High sensitivity and excellent performance
World-leading technology in infrared industry
Various infrared detectors available
Both uncooled and cooled IR detectors in different formats and pixel size
Volume production to ensure fast delivery
Three production lines with annual production capability up to millions of detectors
Frequently Asked Questions
What is infrared thermal imaging?
In nature, all objects whose temperature is higher than absolute zero (- 273 ℃) can radiate infrared rays. By using the infrared camera detector to measure the infrared radiation temperature difference between the target itself and the background, you can get different infrared images, which are also called thermal images.
How do infrared detectors work?
Infrared radiation that emitted by target enters the sensing range of the thermal detector, then the infrared detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.
What are the advantages of cooled infrared detectors?
The cooled infrared focal plane detector operates at a low temperature which is provided by a detector dewar cooler (ddc). It has high sensitivity and can distinguish more subtle temperature difference than uncooled infrared detector. It can detect, identify and recognize objects at a very long range which is more than ten kilometers away. The structure of cooled detector is very complex which results in a relatively high cost than uncooled detector.
