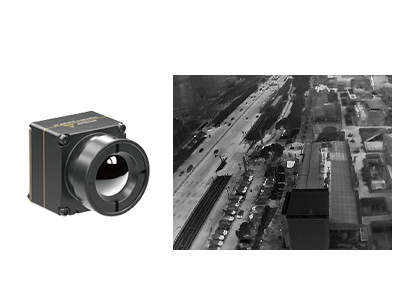

Engineered for portable thermal imaging system integration, the iTL608 is a high-integration uncooled LWIR thermal camera core with superior size-weight-performance balance. Measuring merely 13 * 13 * 18.3 mm and weighing 6.7±1.5g with a 6mm lens, it minimizes device volume and load for portable product design.

Integrated with a premium VOx infrared detector, it offers 640 * 512 resolution at 8μm pixel pitch and outstanding thermal sensitivity under 30mK, ensuring accurate detection of minor temperature variations in ambient scenarios. It supports rapid 6-second boot-up, 30/50Hz switchable frame rates, and built-in NUC and 3DNR image optimization to deliver consistent, low-noise thermal footage.

With a full working temperature range of -40°C to +70°C, it sustains stable operation in harsh outdoor and industrial environments. Compatible with multiple lenses and mainstream interfaces including MIPI, USB 2.0 and BT.656, and supporting RAW/YUV output plus serial/I2C control, the iTL608 cuts R&D costs and shortens time-to-market for wearable devices, night vision and security surveillance devices.

• Extreme Lightweight Design - Compact size of 13 * 13 * 18.3 mm and weight of 6.7 ±1.5 g (including 6 mm lens) with among the highest levels of integration in its class
• High Sensitivity, Precise Detection - 8μm ultra-small pixel size with 640 * 512 resolution delivering fine detail and clear images, with typical NETD ≤ 30mK enabling reliable detection of subtle temperature differences
• Simplified Development, Fast Integration - Multiple optical lens options available to meet diverse application requirements, supports multiple image output interfaces including MIPI/USB 2.0/BT.656, with RAW and YUV image data output and control via serial port/I2C

• Forest Firefighting
• Power Maintenance
• Photovoltaic Inspection
• Security Monitoring
• Wearable Devices
• Portable Devices
