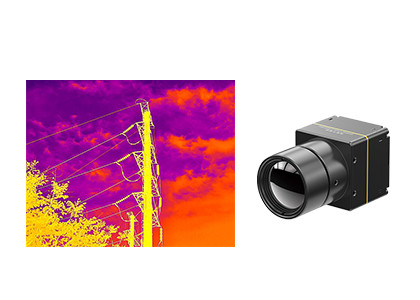

OEM Uncooled Thermal Imaging Module with 640x512 Resolution 12μm Pixel Pitch and 0.65W Power Consumption LWIR Camera Core
OEM Uncooled Thermal Imaging Module with 640x512 Resolution 12μm Pixel Pitch and 0.65W Power Consumption LWIR Camera Core
OEM Uncooled Thermal Imaging Module with 640x512 Resolution 12μm Pixel Pitch and 0.65W Power Consumption LWIR Camera Core
OEM Uncooled Thermal Imaging Module with 640x512 Resolution 12μm Pixel Pitch and 0.65W Power Consumption LWIR Camera Core
Specifications
Power Consumption :
0.65W
NETD :
≤25mK/F1.0/25℃
Pixel Pitch :
12μm
Frame Rate :
25/30/50Hz
Resolution :
640x512
Spectral Range :
8~14μm
Brand Name :
SensorMicro
Model Number :
COIN612G2
Certification :
ISO9001:2015; RoHS; Reach
Place of Origin :
China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T
Description
OEM Uncooled Thermal Imaging Module with LWIR 640x512 12μm Infrared Detector
Product Overview

The COIN612G2 infrared camera core is built around a 640×512/12μm ApexCore wafer-level infrared detector, embedded with advanced signal processing hardware and image enhancement algorithms (NETD ≤25mK). It integrates universal serial communication, multi-format video outputs and a full lens lineup. The unit spots heat anomalies instantly and outputs crisp thermal frames, greatly simplifying integration development workflows. Ideal as a plug-and-play thermal imaging core for industrial vision, night security monitoring, outdoor observation and AIoT equipment.

Key Features
  • All-Round Functions & Cost Efficiency: High-performance ApexCore wafer-level detector with NETD ≤25mK balances top-tier imaging and low procurement cost. Optimized focal plane array plus proprietary image algorithms for refined thermal image quality.
  • Miniature & Lightweight Mechanical Design: Compact footprint: 25.4×25.4×15.7mm. Ultra-light weight: 15±1g; ultra-low power draw ≤0.65W.
  • Flexible Configuration for Rapid System Integration: Rich interchangeable lens portfolio for multi-scene customization. Mainstream digital video interfaces built-in. RAW/YUV data output with full serial command control.
Technical Specifications
Model COIN612G2
IR Detectors Indicators
Sensitive Material VOx
Resolution 640×512
Pixel Size 12μm
Spectral Response 8μm ~ 14μm
Typical NETD ≤25mK/F1.0/25℃
Image Processing
Digital Frame Rate 25/30/50Hz
Start-up Time 6s
Analog Video PAL/NTSC
Digital Video RAW/YUV422
Image Algorithm Non-uniformity Correction (NUC)
3D Noise Reduction (3DNR)
2D Noise Suppression (DNS)
Dynamic Range Compression (DRC)
Edge Enhancement (EE)
Image Display 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot)
PC Software
ICC Software Module Control & Video Display
Electrical
Standard External Interface 50pin: DF40C-50DP-0.4V(51), (HRS,Male)
Extension Board USB3.0/USB2.0/VPC/USB2.0&VPC
Communication Interface TTL-232/USB2.0
Digital Video Interface DVP8/DVP16/USB2.0/BT.656/LVDS
Supply Voltage 4.5~5.5V
Typical Power Consumption 0.65W
Mechanical
Bare Core Size(mm) 25.4×25.4×15.7
Bare Core Weight(g) 15±1g
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35grms, Random Vibration, 3-axis
Impact Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times
Certification ROHS2.0/REACH
Optical Lens
Optical Lens Fixed Focus Athermal: 4.8mm/7mm/9.1mm/13mm/19mm/25mm/35mm/50mm/70mm
Protection Level IP67(Front Lens)
Industrial Applications

The COIN612G2 thermal imaging module is applied in the field of Security Monitoring, Industrial Vision, Outdoor Observation, Firefighting & Rescue, ADAS, Machine Vision etc.

Company Information

Our Vision: To push the boundaries of sensing and transform the way people connect with the world around them.

Our Mission: To harness the power of infrared sensing technology to transform industries worldwide, enabling smarter decisions, safer environments, and a more connected future.

Our Value: To create advanced infrared technology that makes the world a better place.

Frequently Asked Questions
In which industries are focal plane array infrared detectors used?

Infrared focal plane detector is the core component of thermal imaging system, and is the key to detect, identify and analyze infrared information of objects. It has a wide range of applications in traffic, inspection, security monitoring, meteorology, medicine and other industries.

What are the characteristics of cooled & uncooled infrared focal plane detectors?

Infrared focal plane detectors can be divided into cooled infrared focal plane detector and uncooled infrared focal plane detector. Cooled infrared detector works at a low temperature vacuum environment with high sensitivity and can distinguish more subtle temperature differences, while uncooled infrared focal plane detector does not need a cryogenic environment and can work at room temperature.
