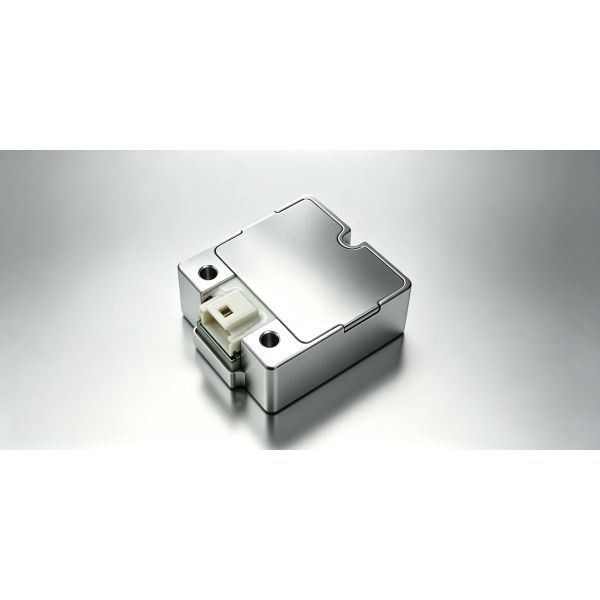

SI‑MIMU‑K High‑Precision Inertial Measurement Unit | 10°/h Zero‑Bias Stability for UAV, Autonomous Driving, Robotics & Survey Mapping
SI‑MIMU‑K High‑Precision Inertial Measurement Unit | 10°/h Zero‑Bias Stability for UAV, Autonomous Driving, Robotics & Survey Mapping
Specifications
Brand Name :
SI
Bias stability :
≤10°/h
Delivery Time :
5-8 work days
Applications :
Drones, Robotics, Automotive, Consumer Electronics
MOQ :
1set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Model Number :
SI-MIMU-K
Customized Support :
OEM, ODM
Interface :
UART
Dimension :
22.4×22.4×9 mm
Description

The SI-MIMU-K Micro Inertial Measurement Unit (IMU) is a compact, high-performance, and cost-effective MEMS-based inertial sensor that measures 3D angular velocity and acceleration of moving carrier.
SI-MIMU-K integrates full-temperature compensation, misalignment angle compensation, nonlinear compensation algorithms, and compensation software, ensuring stable and excellent performance under both static and vehicular dynamic conditions. It provides users with highly reliable measurement data even in harsh environments.

Main performance Parameters

Indicator Type

Specification

Unit
Gyroscope

Range

±450

°/s

Bias(Full Temperature)

≤150

°/h

Bias Stability(1σ)

≤10

°/h

Bias Repeatability(1σ)

≤10

°/h

Angular Random Walk

≤0.25

°/√h

Bias Instability

≤2.5

°/h

Scale Factor Nonlinearity

≤50

ppm

Bandwidth

≥150

Hz

Accelerometer

Range

ppm

≤10

Bias(Full Temperature)

ppm

≤5

Bias Stability(1σ)

ppm

≤10

Bias Repeatability(1σ)

(°)/h

≤0.01


Angular Random Walk


(°)/h

≤0.01

Bias Instability

Hz

≥500

Scale Factor Nonlinearity

℃

-45～+70

Bandwidth

℃

-55～+85

Electrical Characteristics

Voltage

5±0.3

V

Current

≤0.05

A
Others

Weight

≤20

g

Dimension

22.4×22.4×9

mm

Interface

UART

-
