7F2C25-AAGCCAACAAAD2SKA1+AK Proline Prowirl F 200 vortex flowmeter
7F2C25-AAGCCAACAAAD2SKA1+AK Proline Prowirl F 200 vortex flowmeter
7F2C25-AAGCCAACAAAD2SKA1+AK Proline Prowirl F 200 vortex flowmeter
7F2C25-AAGCCAACAAAD2SKA1+AK Proline Prowirl F 200 vortex flowmeter
Specifications
Payment Terms :
T/T
Approval: :
Non-hazardous Area
Warranty: :
1 Year
Cable Entry: :
Gland M20x1,5
Brand Name :
Endress Hauser
Main Wetted Parts: :
316L, PEEK, PTFE, Polyamid
Packaging Details :
Original packing
Trace: :
0 To 5 Mg/l HOCl
Model Number :
7F2C25-AAGCCAACAAAD2SKA1+AK
Analogue Output: :
4x 0/4...20mA
MOQ :
1PC
Delivery Time :
on request
Display: :
LCD
Material: :
In Contact With Medium: Virgin PEEK
Price :
Negotiable
Measuring Tube: :
1.4539 (904L)
Shaft Length: :
120mm
Supply Ability :
50PCS/MONTH
Sensor Range: :
500mbar/50kPa/7.5psi
Measuring Cell: :
100 Mbar...40 Bar
Certification :
Rohs
Sensor Adaption: :
Fixed Cable; Crimp Sleeves
Accuracy: :
±0.5%
Place of Origin :
DE
Temperature Sensor: :
Pt1000
Description

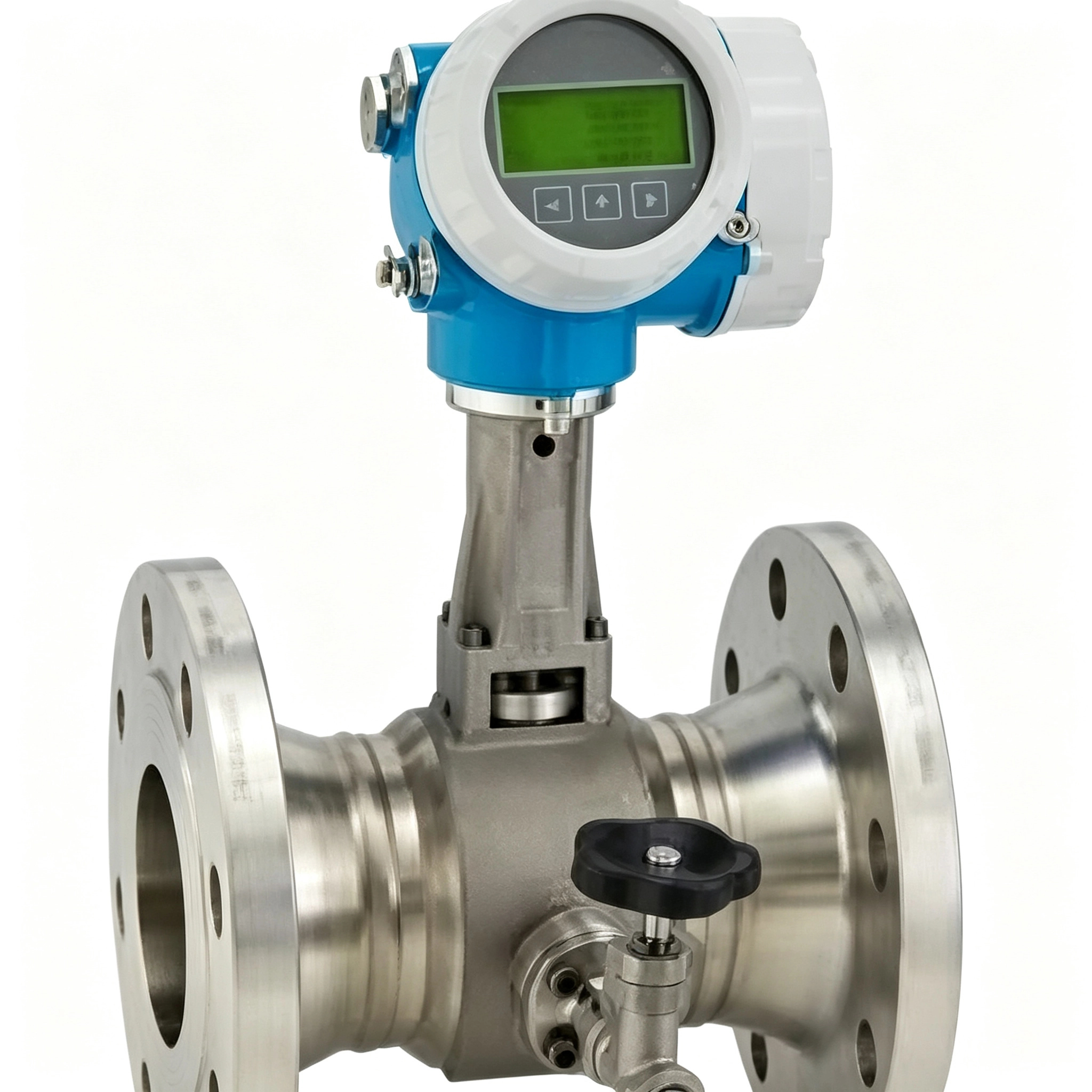

7F2C25-AAGCCAACAAAD2SKA1+AK Proline Prowirl F 200 Vortex Flowmeter
Product Overview

The Proline Prowirl F 200 is a multivariable vortex flowmeter with inline wet steam measurement capability, designed for industrial applications with genuine loop-powered technology.

Model Number
7F2C25-AAGCCAACAAAD2SKA1+AK
Brand
Endress Hauser
Origin
Germany (DE)
Certification
Rohs
Warranty
1 Year
Key Specifications
Main Wetted Parts
316L, PEEK, PTFE, Polyamid
Analogue Output
4x 0/4...20mA
Temperature Sensor
Pt1000
Display
LCD
Measuring Tube
1.4539 (904L)
Accuracy
±0.5%
Shaft Length
120mm
Cable Entry
Gland M20x1,5
Performance Specifications
Max. Measurement Error
Volume flow (liquid): ±0.75%
Volume flow (optional): ±0.65%
Volume flow (steam, gas): ±1.00%
Mass flow (saturated steam): ±1.7% (temperature compensated); ±1.5% (temperature/pressure compensated)
Mass flow (superheated steam, gas): ±1.5% (temperature/pressure compensated); ±1.7% (temperature compensated + external pressure compensation)
Mass flow (liquid): ±0.85%
Measuring Range
Liquid: 0.2 to 2100 m³/h (0.15 to 1520 ft³/min)
Steam, gas: 1.5 to 28000 m³/h (0.9 to 16600 ft³/min)
Medium Temperature Range
Standard: -40 to +260 °C (-40 to +500 °F)
High/low temperature (option): -200 to +400 °C (-328 to +752 °F)
Max. Process Pressure
PN 100, Class 600, 20K
Field of Application

Prowirl F is the multivariable flowmeter with inline wet steam measurement. Its calibration option PremiumCal guarantees excellent measuring accuracy and highest plant availability at low flow rates of gas, steam and liquids. With genuine loop-powered technology, Prowirl F 200 enables cost-effective and seamless integration into existing infrastructures. It offers highest operational safety in hazardous areas. Heartbeat Technology enables process safety at all times.

  • Preferred measuring principle for wet/saturated/superheated steam, gases & liquids (also cryogenic)
  • Suitable for a wide range of applications; optimized for steam applications
Device Properties
  • Wet steam capabilities for DN 25 to 300 (1 to 12")
  • Flexible positioning of pressure cell
  • Industrial siphon design for pressure measurement
  • Display module with data transfer function
  • Robust dual-compartment housing
  • Plant safety: worldwide approvals (SIL, Haz. area)
7F2C25-AAGCCAACAAAD2SKA1+AK Proline Prowirl F 200 vortex flowmeter
