5P3B65-C3V1/0 Proline Promag P 300 Electromagnetic Flowmeter
5P3B65-C3V1/0 Proline Promag P 300 Electromagnetic Flowmeter
5P3B65-C3V1/0 Proline Promag P 300 Electromagnetic Flowmeter
5P3B65-C3V1/0 Proline Promag P 300 Electromagnetic Flowmeter
5P3B65-C3V1/0 Proline Promag P 300 Electromagnetic Flowmeter
5P3B65-C3V1/0 Proline Promag P 300 Electromagnetic Flowmeter
Specifications
Certification :
ROHS
Measured Variables: :
Volume Flow
Model Number :
5P3B65-C3V1/0
Wetted Materials: :
Liner: PFA; PTFE
MOQ :
1PC
Delivery Time :
on request
Inputs: :
Status Input 4-20 MA Input
Payment Terms :
T/T
Price :
negotiable
Material Certificates: :
3.1 Material
Supply Ability :
500pcs/month
Place of Origin :
DE
Max. Process Pressure: :
PN 40, Class 300, 20K
Brand Name :
Endress Hauser
Nominal Diameter Range: :
DN 15 To 600 (½ To 24")
Packaging Details :
Original packing
Description

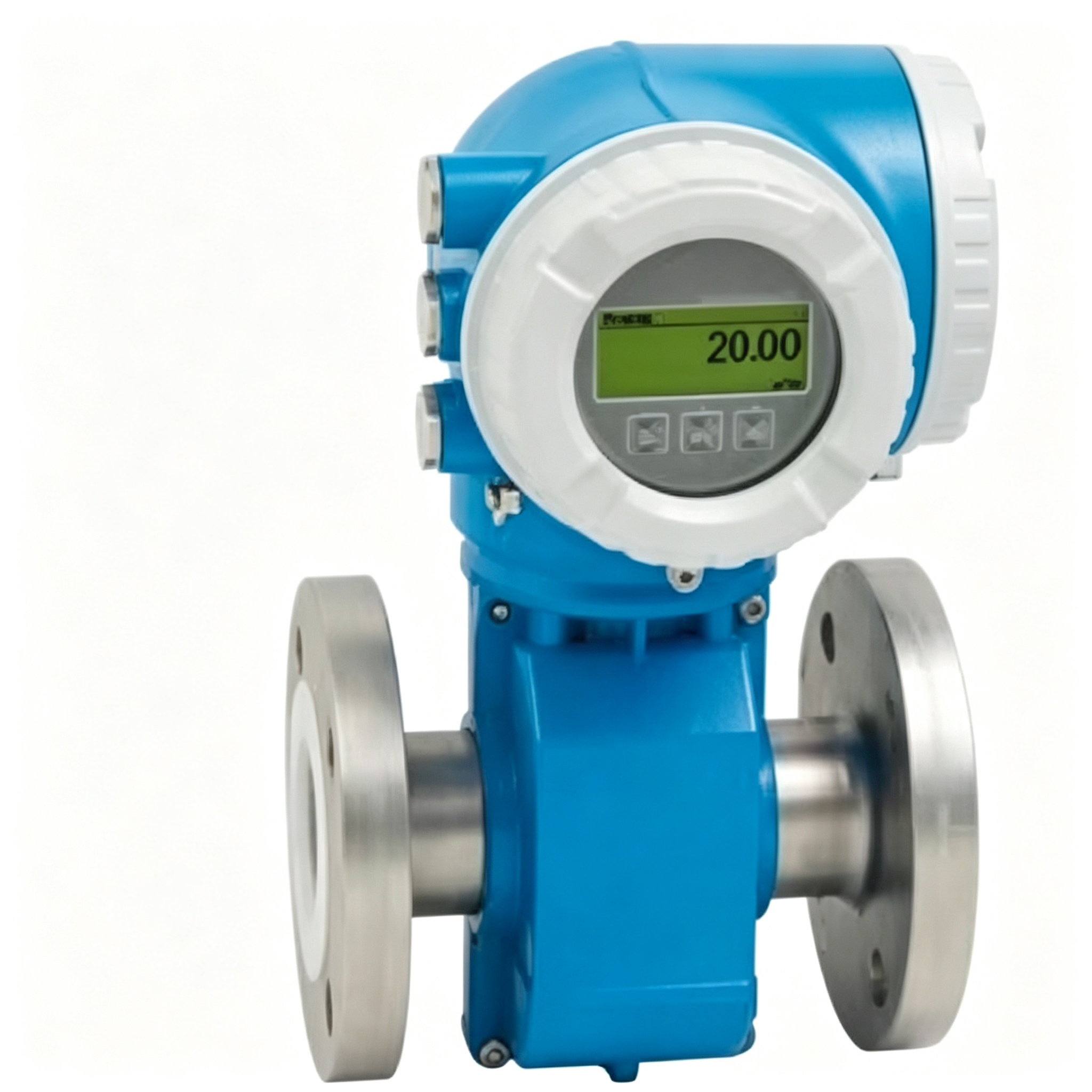

5P3B65-C3V1/0 Proline Promag P 300 Electromagnetic Flowmeter
Product Overview

Power Supply: DC 24 V. The Promag P 300 electromagnetic flowmeter is designed for chemical and process applications with corrosive liquids and highest medium temperatures.

Technical Specifications
Place of Origin: DE
Brand Name: Endress Hauser
Certification: Rohs
Model Number: 5P3B65-C3V1/0
Nominal Diameter Range: DN 15 to 600 (½" to 24")
Wetted Materials: Liner: PFA; PTFE
Measured Variables: Volume Flow
Max. Process Pressure: PN 40, Class 300, 20K
Inputs: Status Input 4-20 mA Input
Material Certificates: 3.1 Material
Approvals and Certificates
Pressure Approvals PED, CRN
Hygienic Approvals ACS, NSF 61, WRAS
Safety Approvals SIL
Field of Application

Promag P is dedicated to chemical and process applications with corrosive liquids and highest medium temperatures. With its compact transmitter, Promag P 300 offers high flexibility in terms of operation and system integration: access from one side, remote display and improved connectivity options. Heartbeat Technology enables compliance and process safety at all times.

  • The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity
  • Dedicated to chemical and process applications with corrosive liquids and high medium temperatures
Device Properties
  • Nominal diameter: max. DN 600 (24")
  • All common Ex approvals
  • Liner made of PTFE or PFA
  • Compact dual-compartment housing with up to 3 I/Os
  • Backlit display with touch control and WLAN access
  • Remote display available
Key Benefits
  • Diverse applications - wide variety of wetted materials
  • Energy-saving flow measurement - no pressure loss due to cross-section constriction
  • Maintenance-free - no moving parts
  • Full access to process and diagnostic information - numerous, freely combinable I/Os and Ethernet
  • Reduced complexity and variety - freely configurable I/O functionality
  • Integrated verification - Heartbeat Technology
