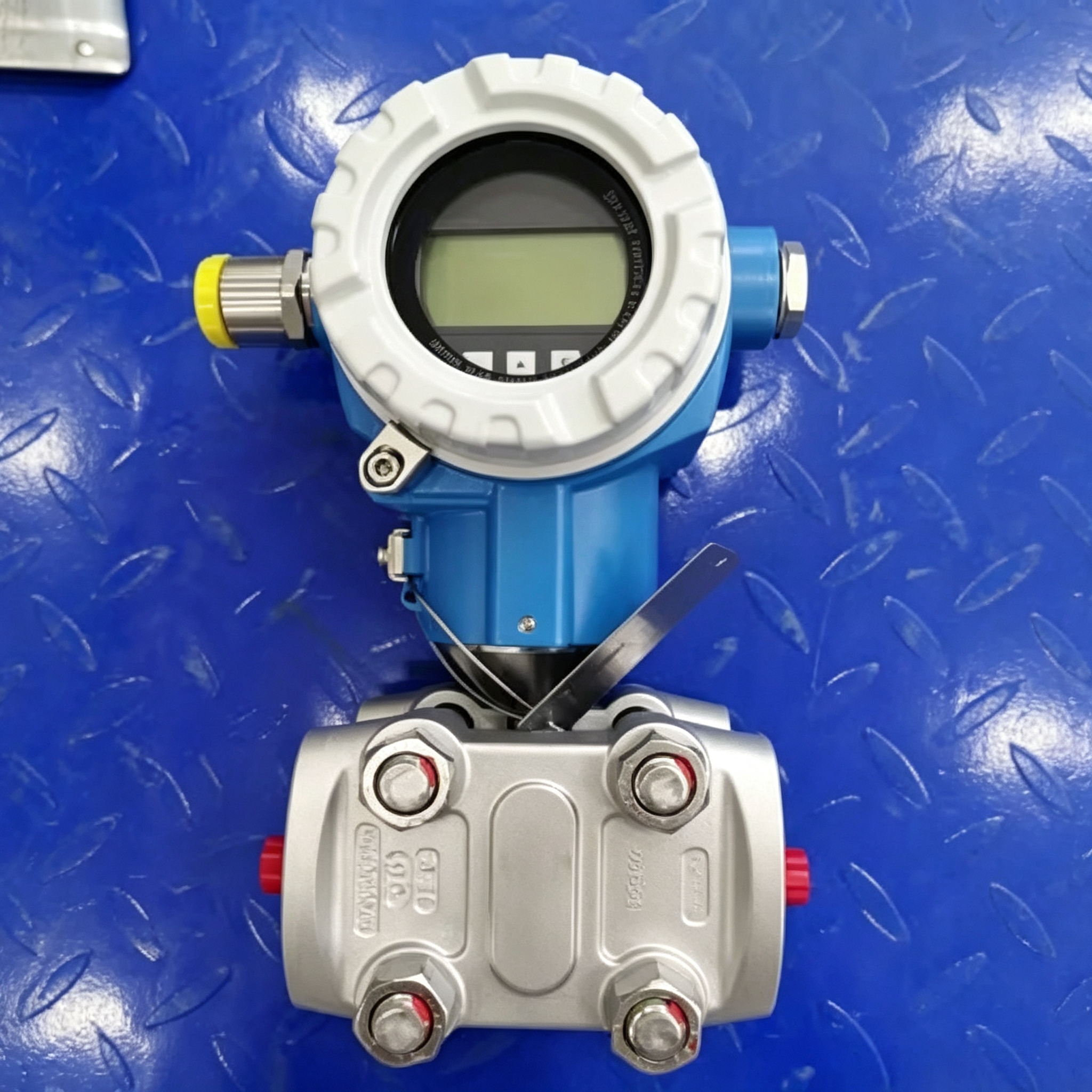

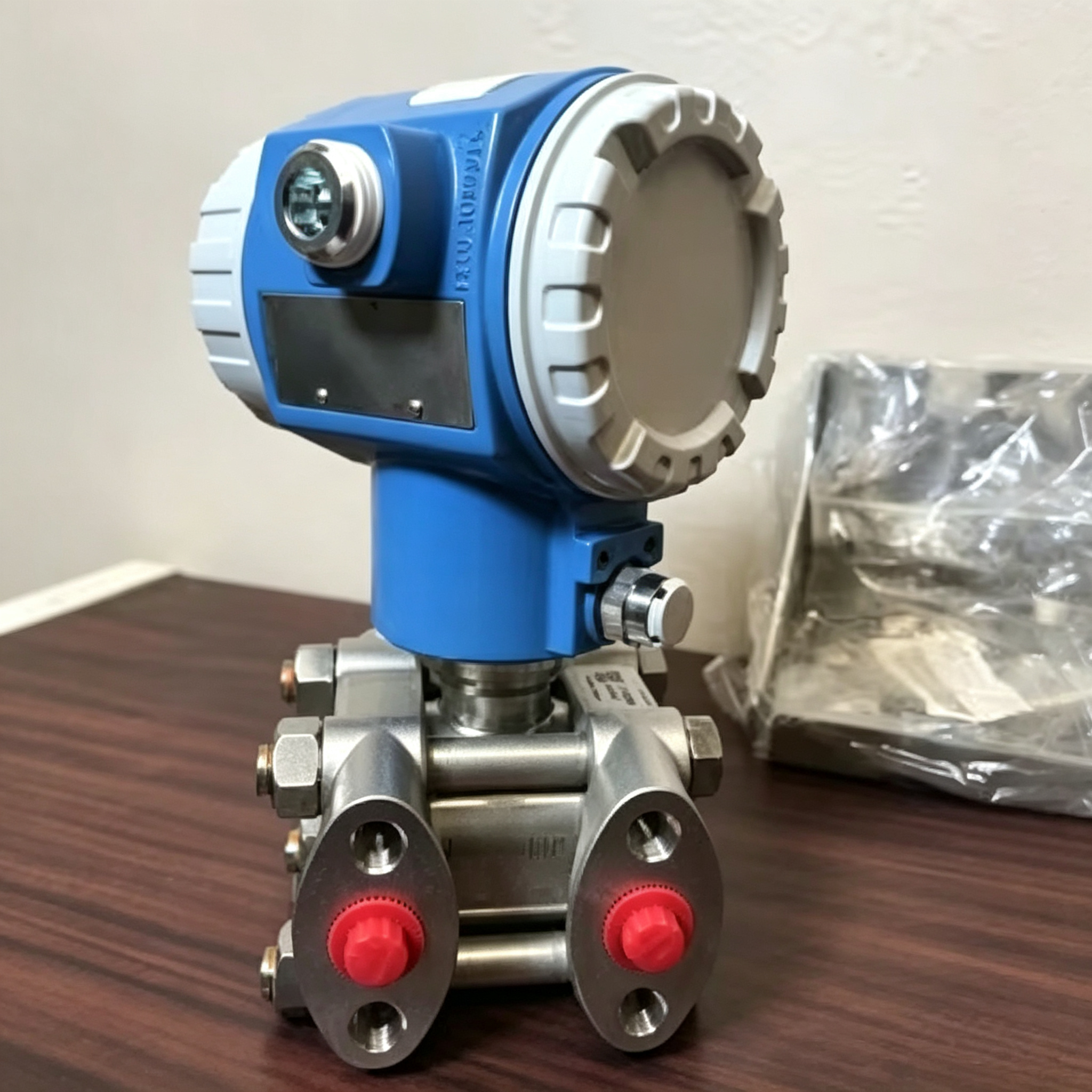

E+H Deltabar PMD75 Differential Pressure Transmitter With 0.05% Accuracy 24 VDC Power Supply And 0.25mbar To 40bar Measuring Range
E+H Deltabar PMD75 Differential Pressure Transmitter With 0.05% Accuracy 24 VDC Power Supply And 0.25mbar To 40bar Measuring Range
E+H Deltabar PMD75 Differential Pressure Transmitter With 0.05% Accuracy 24 VDC Power Supply And 0.25mbar To 40bar Measuring Range
E+H Deltabar PMD75 Differential Pressure Transmitter With 0.05% Accuracy 24 VDC Power Supply And 0.25mbar To 40bar Measuring Range
E+H Deltabar PMD75 Differential Pressure Transmitter With 0.05% Accuracy 24 VDC Power Supply And 0.25mbar To 40bar Measuring Range
E+H Deltabar PMD75 Differential Pressure Transmitter With 0.05% Accuracy 24 VDC Power Supply And 0.25mbar To 40bar Measuring Range
Specifications
Power Supply: :
24 VDC
Certification :
CE
Name: :
PMD75
Model Number :
PMD75-BBC7F32FCB4+N5PD
Standard: :
0.05%
MOQ :
1PC
Delivery Time :
5-8works
Payment Terms :
T/T
Price :
USD2310/PCS
Supply Ability :
On request
Warranty: :
1 Year
Brand Name :
Endress Hauser
Packaging Details :
carton
Measuring Ranges: :
0.25mbar To 40bar
Place of Origin :
DE
Description
E+H PMD75-BBC7F32FCB4+N5PD Differential Pressure Deltabar PMD75
Product Overview
Place of Origin Germany Brand Name E+H Certification CE Model Number PMD75-BBC7F32FCB4+N5PD Warranty 1 Year Power Supply 24 VDC Measuring Ranges 0.25 mbar to 40 bar Standard Accuracy 0.05%
Technical Specifications
Accuracy
Standard: 0.05%
Platinum: up to 0.035%
Process Temperature
-40 °C to 85 °C
(-40 °F to 185 °F)
Pressure Measuring Range
10 mbar to 250 bar
(0.15 psi to 3750 psi)
Main Wetted Parts
Alloy C276, 316L, Monel, Tantalum
Material Process Membrane
316L, AlloyC, Tantal, Gold-Rhodium
Measuring Cell
10 mbar to 250 bar
(0.15 psi to 3750 psi)
Field of Application

The Deltabar PMD75 differential pressure transmitter with piezoresistive sensor and welded metallic membrane is used in all industries for continuous measurement in liquids, vapors and gases.

  • Level, volume or mass measurement in liquids
  • Differential pressure monitoring
  • Flow measurement (volume or mass flow) in conjunction with primary elements in gases, vapors and liquids

The 3-key operation enables simple and reliable commissioning and operation. The integrated HistoROM data module allows easy management of process and device parameters. Designed according to IEC 61508 for use in SIL2/3 safety applications.

  • Process connections: Threads
  • Process temperature: -40 to +85°C (-40 to +185°F)
  • Measuring ranges: 0.25 mbar to 40 bar (0.0036 to 600 psi)
  • Accuracy: ±0.05%, "Platinum" ±0.035% (optional)
  • International explosion protection certificates, overfill prevention WHG, SIL, hygienic approvals, marine approvals
