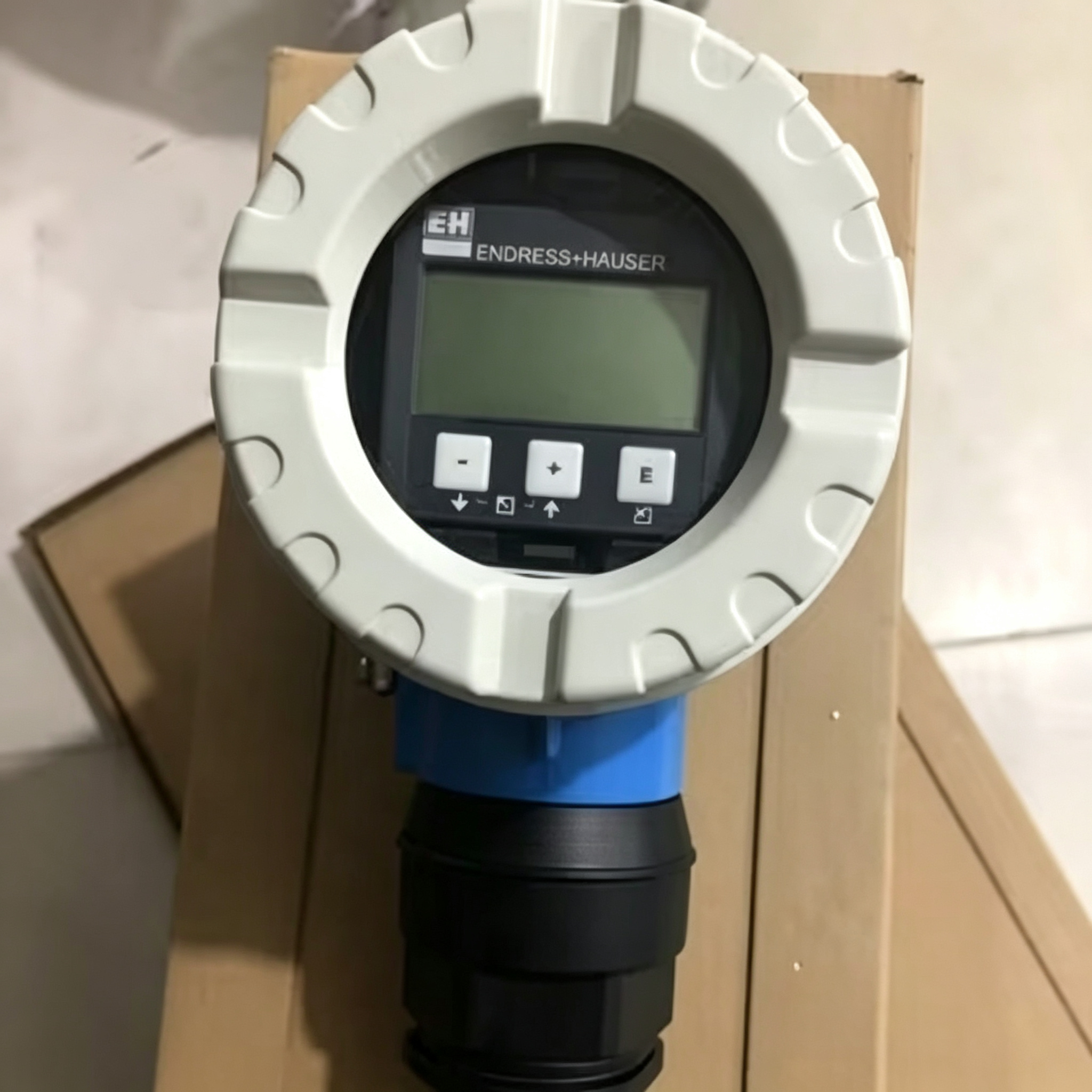

Prosonic FMU40 Ultrasonic Level Sensor with Time-of-Flight Measurement for Non-Contact Level and Flow Monitoring
Prosonic FMU40 Ultrasonic Level Sensor with Time-of-Flight Measurement for Non-Contact Level and Flow Monitoring
Prosonic FMU40 Ultrasonic Level Sensor with Time-of-Flight Measurement for Non-Contact Level and Flow Monitoring
Prosonic FMU40 Ultrasonic Level Sensor with Time-of-Flight Measurement for Non-Contact Level and Flow Monitoring
Prosonic FMU40 Ultrasonic Level Sensor with Time-of-Flight Measurement for Non-Contact Level and Flow Monitoring
Prosonic FMU40 Ultrasonic Level Sensor with Time-of-Flight Measurement for Non-Contact Level and Flow Monitoring
Specifications
Pressure: :
-1 To +40bar
Place of Origin :
DE
Model Number :
FMU40-ANB2A2
Payment Terms :
T/T
Power Supply: :
24 VDC
Price :
negotiable
Process Temperature: :
-40 °C ... 150 °C
Supply Ability :
On request
Warranty: :
1 Year
MOQ :
1PC
Delivery Time :
5-8works
Certification :
CE
Brand Name :
Endress Hauser
Packaging Details :
carton
Description
Ultrasonic Measurement Time-of-Flight Prosonic FMU40 FMU40-ANB2A2
Product Overview

The Prosonic FMU40 sensor is designed for non-contact level measurement in fluids, pastes, coarse bulk materials and flow measurement in open channels or at weirs. This two-wire or four-wire compact transmitter is suitable for applications with storage tanks, agitators, on stockpiles and conveyor belts.

Place of Origin Germany
Brand Name E+H
Certification CE
Model Number FMU40-ANB2A2
Warranty 1 Year
Power Supply 24 VDC
Key Specifications
Accuracy
±2 mm or ±0.2% of set measuring range
Process Temperature
-40°C to 80°C (-40°F to 176°F)
Process Pressure
0.7 to 3 bar abs (10 to 44 psi)
Max. Measurement Distance
Liquids: 5 m (16 ft)
Solids: 2 m (6.6 ft)
Blocking Distance
Liquids and Solids: 0.25 m (0.8 ft)
Main Wetted Parts
PVD
Key Features
  • Two-wire or four-wire instrument for continuous non-contact level and flow measurement
  • Process connection: Thread
  • Envelope curve display for simple diagnosis
  • Linearization function (up to 32 points) for conversion of measured value into any unit of length, volume or flow rate
  • International explosion protection certificates
  • Suitable for storage tanks, agitators, stockpiles and conveyor belts
