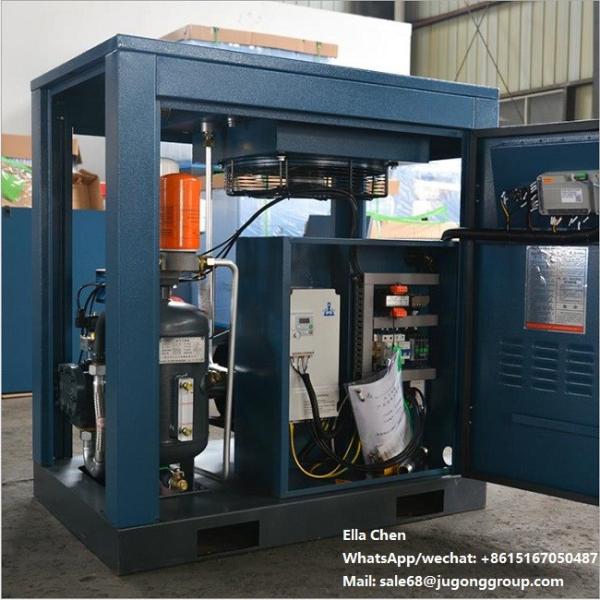

10HP VSD Inverter PM Rotary Industrial Screw Air Compressor IP55 Explosion Proof Motor
10HP VSD Inverter PM Rotary Industrial Screw Air Compressor IP55 Explosion Proof Motor
10HP VSD Inverter PM Rotary Industrial Screw Air Compressor IP55 Explosion Proof Motor
10HP VSD Inverter PM Rotary Industrial Screw Air Compressor IP55 Explosion Proof Motor
10HP VSD Inverter PM Rotary Industrial Screw Air Compressor IP55 Explosion Proof Motor
10HP VSD Inverter PM Rotary Industrial Screw Air Compressor IP55 Explosion Proof Motor
10HP VSD Inverter PM Rotary Industrial Screw Air Compressor IP55 Explosion Proof Motor
10HP VSD Inverter PM Rotary Industrial Screw Air Compressor IP55 Explosion Proof Motor
10HP VSD Inverter PM Rotary Industrial Screw Air Compressor IP55 Explosion Proof Motor
10HP VSD Inverter PM Rotary Industrial Screw Air Compressor IP55 Explosion Proof Motor
10HP VSD Inverter PM Rotary Industrial Screw Air Compressor IP55 Explosion Proof Motor
10HP VSD Inverter PM Rotary Industrial Screw Air Compressor IP55 Explosion Proof Motor
Specifications
Brand Name :
kaishan
Model Number :
BMVF7.5
Certification :
ISO9001, CE
Place of Origin :
Zhejiang, China
MOQ :
1
Price :
$700-1000 per unit
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 per week
Delivery Time :
3-10 days after payment
Packaging Details :
Carton or Wooden package
Motor power :
10hp air compressor
Voltage :
380V/400V or customize
Condition: :
new
Type :
Screw air compressor
Configuration :
Stationary type air compressor
Applicatipon :
for oxygen machine
Lubrication Style :
Oil lubricated
After-sales Service :
Online support
Working pressure :
8 bar
Air displacement :
1.2m3/min (40 CFM)
Description

Industrial IP54/IP55 explosion proof motor 10HP 116psi VSD inverter PM Rotary Screw Air Compressors

Advantages of Kaishan air compressor.

The main engine of the screw air compressor consists of rotor, cylinder, bearing and shaft seal. The efficiency of the screw air compressor depends on the rotor, also the life of the screw air compressor depends on the bearing and the shaft seal. Only Kaishan can produce a whole pedigree of rotor in the world and the diameter of 220KW rotor can reach 386cm The bearing of screw air compressor generally use SKF, and low peed, the bearing no extra force, the work-life of the screw air compressor will be longer, Kaishan compressor's rotor is direct driven, no speed gear,lower speed, higher efficiency. So the work-life of Kaishan compressor is longer than other brand compressor Kaishan compressor can continue to provide stable and efficient power for the mechanical equipment and support the equipment with high speed and stability.
model
Exhaust pressure(Mpa)
Exhaust Interface
Weight(kg)
Exhaust volume(m3/min)
Power(KW)
Size(mm)
BMVF7.5
0.65-1.0
G3/4
170
1.00-1.25
7.5
880*510*800
BMVF11
0.65-1.0
G1
220
1.50-1.85
11
1000*670*1090
BMVF15
0.65-1.0
G1
250
2.05-2.35
15
1000*670*1090
BMVF22
0.65-1.0
G1
330
2.95-3.95
22
1200*800*1120
BMVF37
0.65-1.0
G11/2
500
5.05-6.35
37
1340*850*1330
BMVF45
0.65-1.0
G11/2
660
6.45-8.20
45
1480*1030*1365
BMVF55
0.65-1.0
G11/2
710
8.20-9.85
55
1480*1030*1365
BMVF75
0.65-1.0
G2
1170
10.50-13.10
75
1800*1190*1710
BMVF90
0.65-1.0
G2
1180
12.50-15.50
90
1800*1190*1710
BMVF110
0.65-0.8
DN65
1770
22.00
110
2700*1230*1730
BMVF132
0.65-0.8
DN65
1860
24.00
132
2700*1230*1730

10HP VSD Inverter PM Rotary Industrial Screw Air Compressor IP55 Explosion Proof Motor
