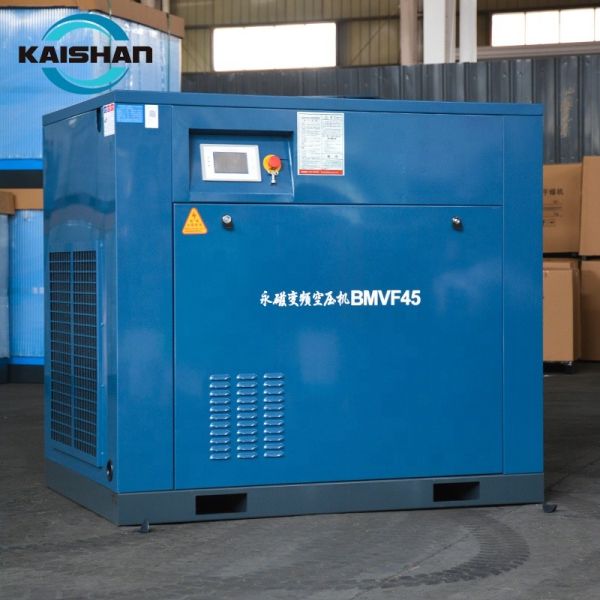

Electrical Oil Injected Rotary Screw Air Compressor 45kw 60hp 8.5 Bar Air Cooling
Electrical Oil Injected Rotary Screw Air Compressor 45kw 60hp 8.5 Bar Air Cooling
Electrical Oil Injected Rotary Screw Air Compressor 45kw 60hp 8.5 Bar Air Cooling
Electrical Oil Injected Rotary Screw Air Compressor 45kw 60hp 8.5 Bar Air Cooling
Electrical Oil Injected Rotary Screw Air Compressor 45kw 60hp 8.5 Bar Air Cooling
Electrical Oil Injected Rotary Screw Air Compressor 45kw 60hp 8.5 Bar Air Cooling
Electrical Oil Injected Rotary Screw Air Compressor 45kw 60hp 8.5 Bar Air Cooling
Electrical Oil Injected Rotary Screw Air Compressor 45kw 60hp 8.5 Bar Air Cooling
Electrical Oil Injected Rotary Screw Air Compressor 45kw 60hp 8.5 Bar Air Cooling
Electrical Oil Injected Rotary Screw Air Compressor 45kw 60hp 8.5 Bar Air Cooling
Electrical Oil Injected Rotary Screw Air Compressor 45kw 60hp 8.5 Bar Air Cooling
Electrical Oil Injected Rotary Screw Air Compressor 45kw 60hp 8.5 Bar Air Cooling
Specifications
Brand Name :
Kaishan
Model Number :
BMVF45
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
$2000-9000 per set
Payment Terms :
L/C, D/P, T/T
Supply Ability :
500set per month
Delivery Time :
2-5 days
Packaging Details :
1.plywood cases suitable for sea transportation 2.as customer's requirementcustomer's requirements.
Motor power :
45kw screw air compressor
Capacity :
6.45-8.2 m3/min
Working pressure :
0.65-1.0 Mpa
Voltage :
380V 50HZ 3phase can customize)
Lubrication style :
Oil less
Transmission way :
Direct driven
Cooling method :
Fan cooling
Type :
Rotary screw compressor
Description

45kw 60hp 8.5bar Air Cooling Direct Driven Electrical Oil Injected Rotary Screw Air Compressor

Advantages of Kaishan air compressor.

The main engine of the screw air compressor consists of rotor, cylinder, bearing and shaft seal. The efficiency of the screw air compressor depends on the rotor, also the life of the screw air compressor depends on the bearing and the shaft seal. Only Kaishan can produce a whole pedigree of rotor in the world and the diameter of 220KW rotor can reach 386cm The bearing of screw air compressor generally use SKF, and low peed, the bearing no extra force, the work-life of the screw air compressor will be longer, Kaishan compressor's rotor is direct driven, no speed gear,lower speed, higher efficiency. So the work-life of Kaishan compressor is longer than other brand compressor Kaishan compressor can continue to provide stable and efficient power for the mechanical equipment and support the equipment with high speed and stability.

A high-effciency PM variable frequency screw air compressor has advantages in the following three areas:

The first is to have a highly effcient screw compression unit;

Secondly to have a high-effcient PM synchronous motor;

Thirdly to have first-clsaa PM variable control technology.

BOREAS PM variable frequency air compressor possessess significant technical advances in the following three areas.

Technical parameters of BMVF screw air compressor

Model
Working pressure
Capacity
Power
Outlet
Noise dB
Weight
Dimension
(MPa)
(m3/min)
(kW)
(A)
(kg)
(mm)
BMVF7.5
0.65-1.0
1.0-1.25
7.5
G3/4
72
200
880×510×800
BMVF11
0.65-1.0
1.5-1.85
11
G1
73
260
1000×670×1090
BMVF15
0.65-1.0
2.05-2.35
15
73
280
1000×670×1090
BMVF22
0.65-1.0
2.95-3.95
22
G1
74
390
1200×800×1120
BMVF37
0.65-1.0
5.05-6.35
37
G11/2
76
600
1340×850×1330
BMVF45
0.65-1.0
6.45-8.2
45
78
800
1480×1030×1365
BMVF55
0.65-1.0
8.2-9.85
55
80
810
BMVF75
0.65-1.0
10.5-13.1
75
G2
81
1280
1800×1190×1710
BMVF90
0.65-1.0
12.5-15.5
90
81
1300
BMVF110
0.65-0.8
22
110
DN65
82
1850
2700×1230×1730
BMVF132
0.65-0.8
24
132
82
2270

Electrical Oil Injected Rotary Screw Air Compressor 45kw 60hp 8.5 Bar Air Cooling

Electrical Oil Injected Rotary Screw Air Compressor 45kw 60hp 8.5 Bar Air Cooling

Screw compressors meet the needs of users in the field of low-power and low-cost screw compressors. It has an efficient screw compression device, an efficient permanent magnet synchronous motor, and first-class permanent magnet variable control technology.

Customers Benefit

1. A economical and practical machine cansatisfy demand of user from the small power consumption, low price of screw compressor.
2. New generation of low consumption and high efficiency motor , larger starting torque, with SKY Bearing, low noise.
3. Dual nested Optimizer separator elements. reduce fluid carryover to a maximun of 1 ppm.
4. Computer-compatible microprocessor controller has simple graphic illustration of monitored functions
