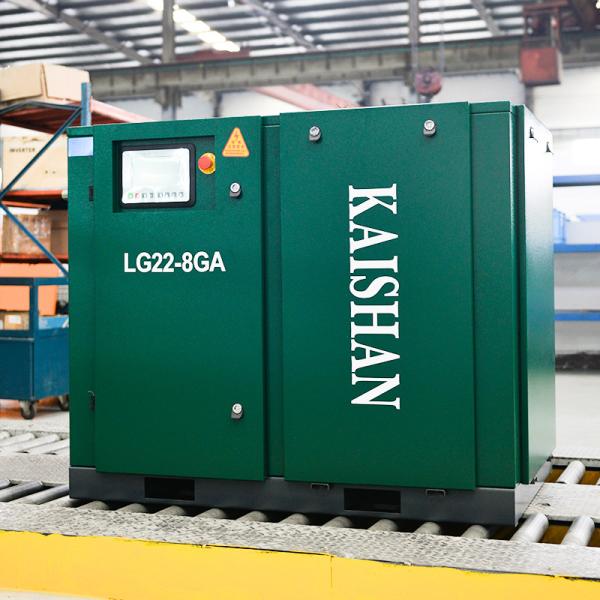

22KW 30HP Rotary Screw Air Compressor Running Stably Zero Failure Rate
22KW 30HP Rotary Screw Air Compressor Running Stably Zero Failure Rate
22KW 30HP Rotary Screw Air Compressor Running Stably Zero Failure Rate
22KW 30HP Rotary Screw Air Compressor Running Stably Zero Failure Rate
22KW 30HP Rotary Screw Air Compressor Running Stably Zero Failure Rate
22KW 30HP Rotary Screw Air Compressor Running Stably Zero Failure Rate
22KW 30HP Rotary Screw Air Compressor Running Stably Zero Failure Rate
22KW 30HP Rotary Screw Air Compressor Running Stably Zero Failure Rate
22KW 30HP Rotary Screw Air Compressor Running Stably Zero Failure Rate
22KW 30HP Rotary Screw Air Compressor Running Stably Zero Failure Rate
22KW 30HP Rotary Screw Air Compressor Running Stably Zero Failure Rate
22KW 30HP Rotary Screw Air Compressor Running Stably Zero Failure Rate
Specifications
Brand Name :
Kaishan
Model Number :
LG22-8GA
Certification :
CE
Place of Origin :
zhejiang, China
MOQ :
1 set
Price :
$3800-5000/ set
Payment Terms :
L/C, T/T
Supply Ability :
50 sets/ week
Delivery Time :
2-10 days after the payment
Packaging Details :
The normal package is wooden box
Voltage :
380V/3PH/50HZ (or Customized)
Working pressure :
0.8 Mpa/ 8bar/ 116psi
Motor power :
22Kw (30Hp) screw compressor
Warranty :
18 Months
Cooled method :
Fan Cooling
Condition :
New
Lubrication style :
Oil lubricated
Configuration :
Fix speed air compressor
Description

22KW 30HP running stably zero failure rate rotary screw air compressor

LG Series - Rotary Screw Air Compressors

Note:We can change the electric power as you required,mainly for export .

We offer complete, high cost LG series rotary screw air compressors. They come configured as belt driven (7.5kW - 18.5kW), optional gear driven, direct driven (7.5kW - 250kW) with discharge pressure from 0.7Mpa to 1.3Mpa. Water-cooled and air-cooled units are available. PLC is a common feature for the LG series and is included in VSD packages.

LG Air End

Superior air end design - SKK series air end is our time proven rotary screw air end. Its features trouble free operation with minimal maintenance and the best energy saving performance. All air ends are designed and built on technical advanced machinery that is generations ahead of what other manufactures use. The precision machined air ends increase the reliability and operating life.

The New, Highly Efficient SKK Rotors

SKK series rotor profiles originated in England but are owned by Kaishan Compressor. The newest design has evolved from previous generations to meet current market requirements - "Energy and cost efficiency with greater capacity".

Our rugged air end contains two rotors, the male rotor has four lobes and the female rotor has five flutes for compressors under 45kW and five male lobes and six female flutes rotors for compressors above 55kW. SKK rotors utilize larger bearings and larger slower turning rotors to produce more compressed air volume per kW. The clearance between rotors is far smaller compared to competitors and the smaller leak path creates a highly efficient lubricating film to reduce compression heat. Slower rotor speeds reduces the operating sound level and vibration.

Model
Working pressure
Capacity
Motor power
Dimension
Weight
(bar)
(m³/min)
(kw)
(mm)
(kg)
l
w
h
LG-1.2/8A
8
1.2
7.5
820
700
1010
260
LG-1.0/10A
10
1
7.5
820
700
1010
260
LG-0.8/13A
13
0.8
7.5
820
700
1010
260
LG-0.8/13
13
0.8
7.5
900
700
1040
350
LG-1.7/8
8
1.7
11
1060
800
1230
450
LG-1.5/10
10
1.5
11
1060
800
1230
450
LG-1.2/13
13
1.2
11
1060
800
1230
450
LG-2.4/8A
8
2.4
15
1060
800
1230
500
LG-2.2/10A
10
2.2
15
1060
800
1230
500
LG-1.7/13A
13
1.7
15
1060
800
1230
500
LG-2.4/8B
8
2.4
15
1060
800
1230
550
LG-2.2/10B
10
2.2
15
1060
800
1230
550
LG-1.7/13B
13
1.7
15
1060
800
1230
550
LG-3/8G
8
3
18.5
1420
850
1110
600
LG-3/8
8
3
18.5
1080
880
1415
650
LG-2.7/10
10
2.7
18.5
1080
880
1415
650
LG-2.3/13
13
2.3
18.5
1080
880
1415
650
LG-22/8G
8
3.6
22
1420
850
1110
650
LG-22/8
8
3.6
22
1080
880
1415
700
LG-22/10
10
3.2
22
1080
880
1415
700
LG-22/13
13
2.7
22
1080
880
1415
700
LG-30/8
8
5
30
1300
1100
1650
900
LG-30/10
10
4.5
30
1300
1100
1650
900
LG-30/13
13
3.7
30
1300
1100
1650
900
LG-37/8G
8
6.2
37
1630
910
1220
900
LGB-37/8
8
6
37
1300
1100
1650
1000
LGB-37/10
10
5.6
37
1300
1100
1650
1000
LG-37/10
10
5.6
37
1300
1100
1650
1000
LGB-37/13
13
4.8
37
1300
1100
1650
1000
LG-37/13
13
4.8
37
1300
1100
1650
1000
LG-45/8G
8
7
45
1778
1000
1300
1000
LG-45/8
8
7.5
45
1300
1100
1650
1100
LG-45/10
10
6.9
45
1300
1100
1650
1100
LG-45/13
13
5.6
45
1300
1100
1650
1100
LG-55/8G
8
10
55
1950
1160
1550
1400
LG-55/10
10
8.7
55
1620
1230
1670
1400
LG-55/13
13
7.5
55
1620
1230
1670
1400
LGB-55/8
8
9.3
55
1500
1250
1566
1250
LGB-55/10
10
8.5
55
1500
1250
1566
1250
LGB-55/13
13
7
55
1500
1250
1566
1250
LG-75/8G
8
13
75
2440
1160
1620
1900
LG-75/10G
10
11.6
75
2440
1160
1620
1900
LG-75/13G
13
9.3
75
2440
1160
1620
1900
LGB-75/8
8
13
75
1580
1320
1646
1600
LGB-75/10
10
11
75
1580
1320
1646
1600
LGB-75/13
13
9.3
75
1580
1320
1646
1600
LG-90/8G
8
16
90
2560
1300
1620
2100
LG-90/10G
10
13.5
90
2560
1300
1620
2100
LG-90/13G
13
11.6
90
2560
1300
1620
2100
LG-110/8G
8
20
110
2760
1340
1710
2800
LG-110/10G
10
16
110
2760
1340
1710
2800
LG-110/13G
13
13.5
110
2760
1340
1710
2800
LG-132/8G
8
22
132
2760
1340
1710
2900
LG-132/10G
10
20
132
2760
1340
1710
2900
LG-132/13G
13
16
132
2760
1340
1710
2900
LG-160/8G
8
27
160
2860
1510
1810
3600
LG-160/10G
10
23
160
2860
1510
1810
3600
LG-160/13G
13
20
160
2860
1510
1810
3600
LG-185/8G
8
30
185
3400
2100
2100
4500
LG-185/13G
13
21
185
2860
1510
1810
3700
LG-200/8GB
8
30
200
3400
2100
2100
4500
LG-200/13GB
13
22
200
2860
1510
1810
3700
LG-200/8G
8
35
200
3400
2100
2100
4500
LG-200/10G
10
30
200
3400
2100
2100
4500
LG-200/13G
13
27
200
3400
2100
2100
4500
LG-220/8G
8
40
220
3700
2200
2200
5850
LG-250/8GB
8
40
250
3700
2200
2200
5950
LG-250/10G
10
35
250
3700
2200
2200
5950
LG-250/8G
8
46
250
3700
2200
2200
6000
LG-250/10G
10
40
250
3700
2200
2200
6000
LG-355/8G
8
65
355
4200
2200
2210
7400
LG-355/8G
8
66
355
4200
2200
2210
7400
