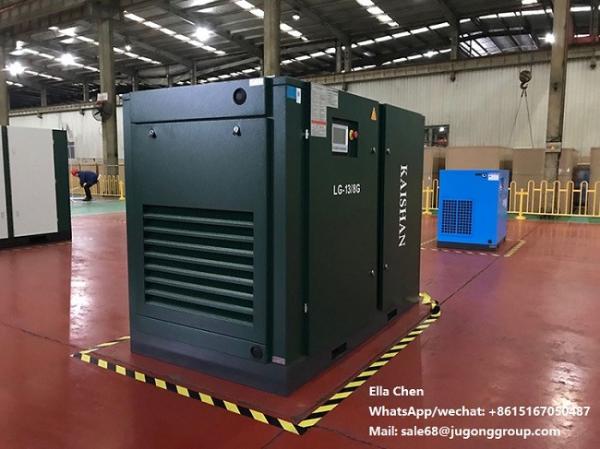

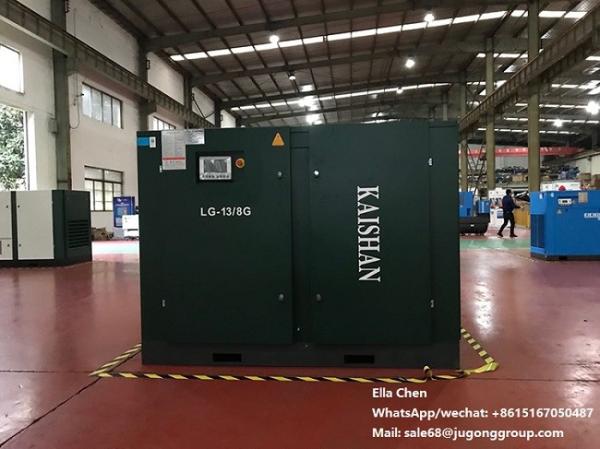

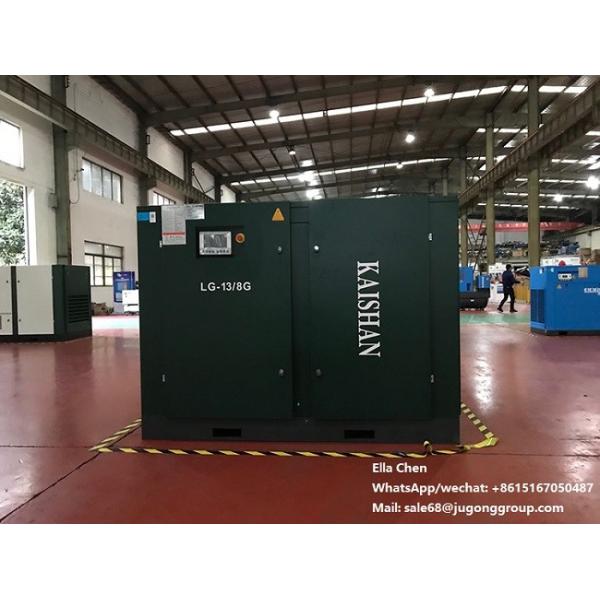

0.8mpa 100hp 75kw Industrial Screw Compressor
0.8mpa 100hp 75kw Industrial Screw Compressor
0.8mpa 100hp 75kw Industrial Screw Compressor
0.8mpa 100hp 75kw Industrial Screw Compressor
Specifications
Brand Name :
Kaishan
Model Number :
LG13-8G
Certification :
ISO9001,CE
Place of Origin :
China
MOQ :
1 set
Price :
$9100-10000 per set
Supply Ability :
500set per month
Delivery Time :
5-10 days
Packaging Details :
1.plywood cases suitable for sea transportation 2.as customer's requirementcustomer's requirements.
Working pressure :
0.8Mpa
Transmission way :
Direct coupling
Voltage :
380V 50HZ or customized
Cooling method :
Air Cooling
Type :
Industrial screw air compressor
Air delivery :
13m3/min
Motor power :
75kw/ 100HP
Description

Kaishan 100HP Screw Electric Air Compressor 8 Bar For Industrial Use

LG screw electric air compressor is available from 10 to 600 hp with capacities from 42 to 2600 cfm, and pressures up to 188 psig. Our LG series screw electric air compressor low price is designed for indoor and outdoor installation, used a lot in the factory for sandblasting, textile industry, blowing machines etc. All units are fully packaged, ready for operation.
Model No. Capacity Exhaust Pressure Power Weight Dimensions
M3/min MPa KW KG mm
LG-1.2/8 1.2 0.8 7.5 350 900*700*1040
LG-1.0/10 1 1
LG-0.8/13 0.8 1.3
LG-1.7/8 1.7 0.8 11 500 1060*800*1230
LG-1.5/10 1.5 1
LG-1.2/13 1.2 1.3
LG-2.4/8 2.4 0.8 15 550 1060*800*1230
LG-2.2/10 2.2 1
LG-1.7/13 1.8 1.3
LG-3/8G 3 0.8 18.5 600 1420*850*1110
LG-3/8 3 0.8 650 1080*880*1415
LG-2.7/10 2.7 1
LG-2.3/13 2.3 1.3
LG-3.6/8G 3.6 0.8 22 650 1420*850*1110
LG-3.6/8 3.6 0.8 700 1080*880*1415
LG-3.2/10 3.2 1
LG-2.7/13 2.7 1.3
LG-5/8 5 0.8 30 1000 1300*1100*1650
LG-4.5/10 4.5 1
LG-3.7/13 3.7 1.3
LG-6.2/8G 6.2 0.8 37 1050 1630*910*1220
LG-5.6/10 5.6 1 1300*1100*1650
LG-4.8/13 4.8 1.3
LG-7.5/8 7.1 0.8 45 1150 1778*1000*1300
LG-6.9/10 6.9 1
LG-5.6/13 5.6 1.3
LG-7.0/8G 7.5 0.8
LG-10/8G 10 0.8 55 1500 1950*1160*1550
LG-8.7/10 8.7 1 1620*1230*1670
LG-7.5/13 7.5 1.3
LG-13/8G 13 0.8 75 1900 2440*1160*1620
LG-11.6/10G 11.6 1
LG-9.3/13G 9.3 1.3

Our compressors bring you outstanding performance, flexible operation and the highest productivity, while minimizing the total cost of ownership. Built to perform even in the harshest environments, our products keep your production running smoothly.
Offering best-in-class performance and total reliability, our products answer your advanced needs.
Industry-leading Free Air Delivery.
The lowest power consumption and noise emission in the industry.
Excellent-quality.
Easy monitoring and maintenance.
To achieve sustainable development
Extra low noise emission
Develop by Jersey North America Development Center--- low noise SKY air end
Heavy machinery design
Direct driven and no gear noise
Low-speed centrifugal fan and inverter oil cooling fan
Equipped with air intake Muffler
World class lowest noise emission
Energy conservation
Each set of air compressor meets national energy conservation standards
SKY high efficient air end
High efficient motor engine
Direct drive and no gear energy saving loss
High efficient centrifugal fan
Inverter oil cooling fan and suction cooling down
KERRY suction valve
High reliability
World class R&D team---provide the powerful safeguard to product quality
"Y" rotor line, cylinder bearing or taper-roller bearing integrative design, bearing lifespan >>100,000 hours
Direct drive, large rotor and slow rotation speed
Large size fan motor
Five years warranty for main machine, two years warranty for motor and radiator
Patent air valve and patent cooler
Coolant and three filters imported from USA
First class production process and inspection equipment, realize the designer’s philosophy perfectly
0.8mpa 100hp 75kw Industrial Screw Compressor

0.8mpa 100hp 75kw Industrial Screw Compressor

Addition:

Kaishan crew air compressors have obvious technological advantages in the three aspects including screw compression unot efficiency,motor efficiency,and control technology.

Industrial
Equipment		 Pipelines Oil & Gas Coating Plastics
Rubber Blow Molding Shipyard Metallurgy Printing Service
Power Plants Oil Refinery
Painting		 Steel Industry Mechanical Color Sorter
Machine
Sandblasting Tobacco Factory Shoe Factory Metal Factory Sugar Factory
Pneumatic Tools Construction
Packing		 Railway Head
Project		 Curry Juice
Factory		 Silicon Sealant
Production Plant
Beverage factory Automotive
Industry		 Tire Repair
Factory		 Furniture Factory Stamping
Chili Sauce
Factory		 Small Workshop
