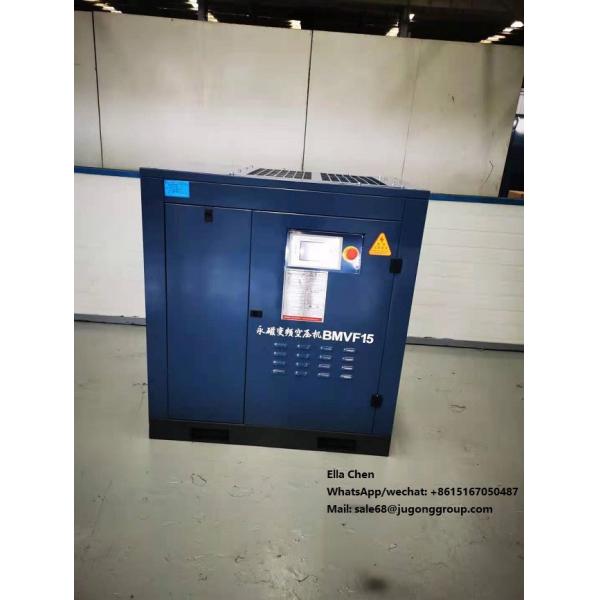

15kw Permanent Magnet Variable Frequency Industrial Screw Air Compressor
15kw Permanent Magnet Variable Frequency Industrial Screw Air Compressor
15kw Permanent Magnet Variable Frequency Industrial Screw Air Compressor
15kw Permanent Magnet Variable Frequency Industrial Screw Air Compressor
15kw Permanent Magnet Variable Frequency Industrial Screw Air Compressor
15kw Permanent Magnet Variable Frequency Industrial Screw Air Compressor
Specifications
Brand Name :
China
Model Number :
BMVF15
Certification :
ISO9001,CE
Place of Origin :
China
MOQ :
1 set
Price :
$1600-2200 per set
Supply Ability :
500set per month
Delivery Time :
2-5 days
Packaging Details :
1.plywood cases suitable for sea transportation 2.as customer's requirementcustomer's requirements.
Lubrication style :
Oil lubrication
Working pressure :
0.65-1.0Mpa
Transmission way :
Direct driven(no belt)
OEM :
Acceptable
Cooling method :
Air Cooling
Type :
Permanent Magnet Variable Frequency
Air delivery :
2.05-2.35m3/min
Motor power :
15kw/ 20HP
Description

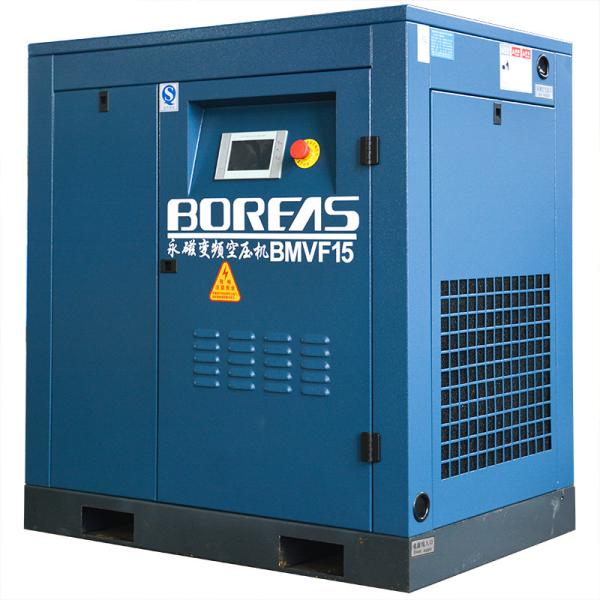

Boreas permanent magnet variable frequency air compressor
Boreas permanent magnet frequency conversion technology can adjust the motor speed according to the change of gas consumption, and then adjust the exhaust volume, so that the air compressor can maintain high efficiency in any case of gas consumption. Therefore, compared with the ordinary power frequency screw air compressor, when the system gas consumption fluctuates, the permanent magnet variable frequency screw air compressor has obvious energy saving advantages, and the greater the fluctuation, the more obvious the energy saving effect, and the comprehensive energy saving can reach 50%.

model working pressure
(bar)		 capacity
(m3/min)		 motor power
(kw)		 dimension
(mm)		 weight
(kg)
l w h
BMVF15 6.5-9 2.05-2.35 15 1000 710 1090 280
BMVF22 6.5-9 2.95-3.95 22 1410 850 1120 430
BMVF37 6.5-9 5.05-6.35 37 1530 900 1230 600
BMVF45 6.5-9 6.45-8.2 45 1700 1050 1255 820
BMVF55 6.5-9 8.2-9.85 55 1790 1150 1360 980

15kw Permanent Magnet Variable Frequency Industrial Screw Air Compressor

Addition:

Compared to the ordinary PM variable frequency screw air compressor,BOREAS PM variable frequency screw air compressors have obvious technological advantages in the three aspects including screw compression unot efficiency,motor efficiency,and control technology.

Industrial
Equipment		 Pipelines Oil & Gas Coating Plastics
Rubber Blow Molding Shipyard Metallurgy Printing Service
Power Plants Oil Refinery
Painting		 Steel Industry Mechanical Color Sorter
Machine
Sandblasting Tobacco Factory Shoe Factory Metal Factory Sugar Factory
Pneumatic Tools Construction
Packing		 Railway Head
Project		 Curry Juice
Factory		 Silicon Sealant
Production Plant
Beverage factory Automotive
Industry		 Tire Repair
Factory		 Furniture Factory Stamping
Chili Sauce
Factory		 Small Workshop

Customers Benefit

1. A economical and practical machine cansatisfy demand of user from the small power consumption, low price of screw compressor.
2. New generation of low consumption and high efficiency motor , larger starting torque, with SKY Bearing, low noise.
3. Dual nested Optimizer separator elements. reduce fluid carryover to a maximun of 1 ppm.
4. Computer-compatible microprocessor controller has simple graphic illustration of monitored functions
