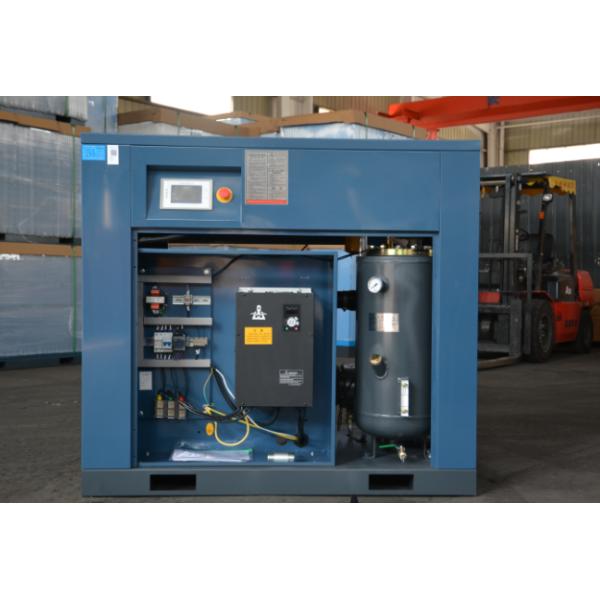

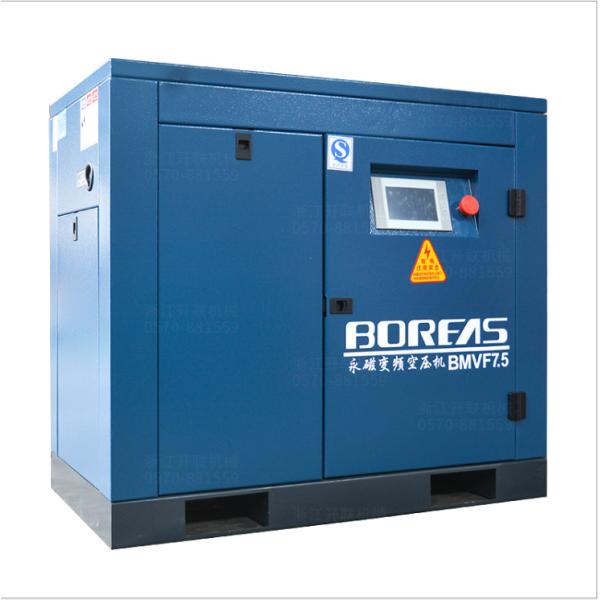

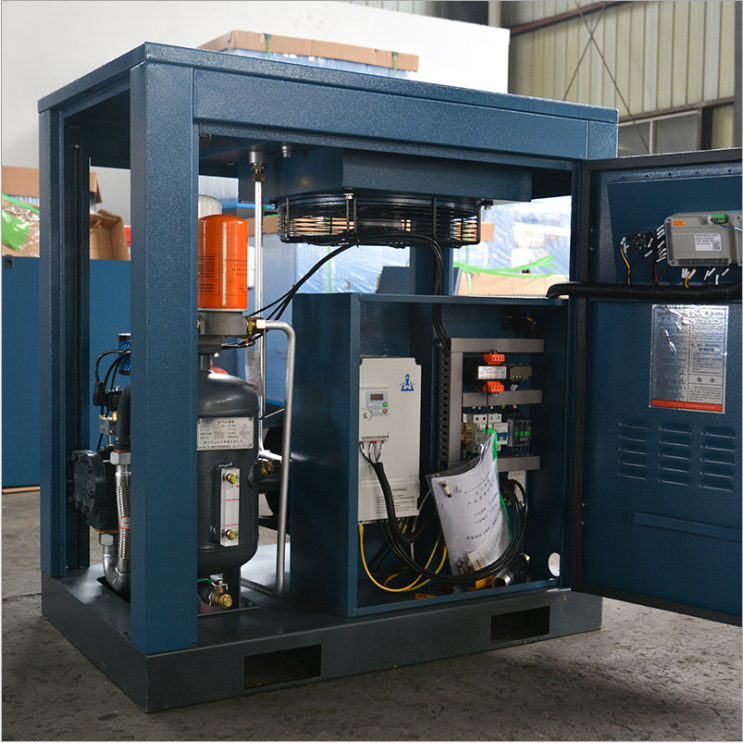

7.5KW 10HP Micro Oil Screw Air Compressor Permanent Magnet Series BMVF7.5
7.5KW 10HP Micro Oil Screw Air Compressor Permanent Magnet Series BMVF7.5
7.5KW 10HP Micro Oil Screw Air Compressor Permanent Magnet Series BMVF7.5
7.5KW 10HP Micro Oil Screw Air Compressor Permanent Magnet Series BMVF7.5
7.5KW 10HP Micro Oil Screw Air Compressor Permanent Magnet Series BMVF7.5
7.5KW 10HP Micro Oil Screw Air Compressor Permanent Magnet Series BMVF7.5
Specifications
Brand Name :
Kaishan
Model Number :
BMVF7.5
Certification :
ISO9001,CE
Place of Origin :
China
MOQ :
≥1SETS
Price :
USD1080-6307/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20SETS/month
Delivery Time :
10-20Days
Packaging Details :
Wooden packing
Lubrication style :
OIL-LESS
Weight :
170KG
Dimension(l*w*h) :
880*510*800
Cooling method :
Fan cooling
Color :
Blue
Motor power :
7.5KW
Capacity :
1.00-1.25
Pressure :
0.65-1.0Mpa
Description

Quick Details

Main machine: LG15EL-BD-B (SKK) Motor:Y2-132S2 (Jiangtian/Qingjiang)

Intake valve: KVPB02501 (Hongxing) Minimum pressure valve:KPVK0200450 (Hongxing)

Solenoid valve:Intake valve built-in Coupling:PSEC0283-030-038(Jichao)

Safety valve:DN08-A28X-16T-0.88MPa (Fuyu) Axial flow fan:300YWF-N-C-01 (Mahr)

Air filter:56 001 106 100J (Kerry) Oil filter:66 094 172EF (Kerry)

Air Oil separation core:55110 165100 (Kerry) Inverter:NZ200T-7.5 (Zhongchen)

Electronic control:cocontactor(Schneider) PLC controller(Kaishan) Screw group:5:6 toothed rotor

Compress mode:Continuous, single stage Discharge pressure:P2=0.65-1.0MPa

Cooling method:Fan cooling Lubricating oil capacity:About 6.5 liters

Compressed air outlet temperature:10℃ ~ 15℃ higher than the ambient temperature


Motor speed:N=2930r/min Working weight:About 200 KG

Air temperature limitation:0℃~45℃ Noise:74dB(A)

Oil consumption:The exhaust oil content is less than 3PPM

Products model Pressure(Mpa) Capacity(m3/min) Motor power(KW) Air outlet Weight(KG) Dimension(mm)
BMVF7.5 0.65-1.0 1.00-1.25 7.5 G3/4 170 880*510*800
BMVF11 0.65-1.0 1.50-1.85 11 G1 220 1000*670*1090
BMVF15 0.65-1.0 2.05-2.35 15 G1 250 1000*670*1090
BMVF22 0.65-1.0 2.95-3.95 22 G1 330 1200*800*1120
BMVF37 0.65-1.0 5.05-6.35 37 G1 1/2 500 1340*850*1330
BMVF45 0.65-1.0 6.45-8.20 45 G1 1/2 660 1480*1030*1365
BMVF55 0.65-1.0 8.20-9.85 55 G1 1/2 710 1480*1030*1365
BMVF70 0.65-1.0 10.50-13.10 75 G2 1170 1800*1190*1710
BMVF90 0.65-1.0 12.50-15.50 90 G2 1180 1800*1190*1710
BMVF110 0.65-0.8 22.00 110 DN65 1770 2700*1230*1730
BMVF132 0.65-0.8 24.00 132 DN65 1860 2700*1230*1730
