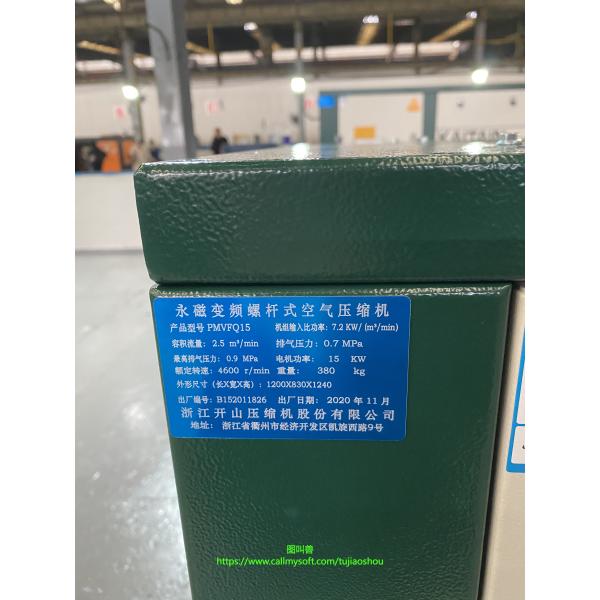

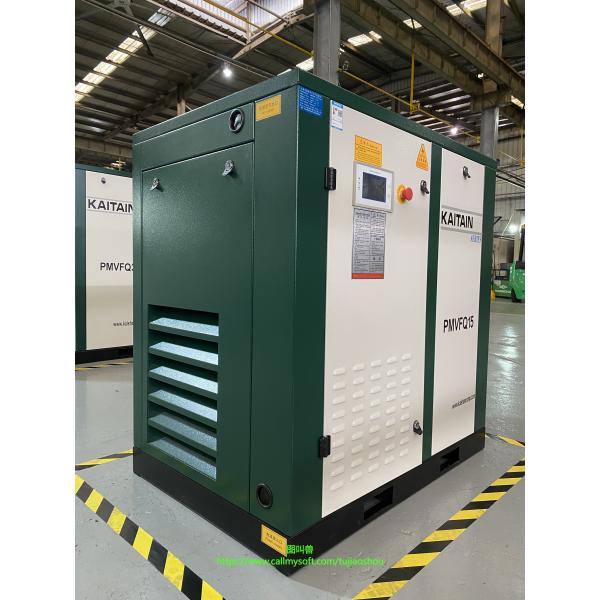

BOREAS Permanent Magnet Variable Frequency Screw Compressor 15KW
BOREAS Permanent Magnet Variable Frequency Screw Compressor 15KW
BOREAS Permanent Magnet Variable Frequency Screw Compressor 15KW
BOREAS Permanent Magnet Variable Frequency Screw Compressor 15KW
BOREAS Permanent Magnet Variable Frequency Screw Compressor 15KW
BOREAS Permanent Magnet Variable Frequency Screw Compressor 15KW
BOREAS Permanent Magnet Variable Frequency Screw Compressor 15KW
BOREAS Permanent Magnet Variable Frequency Screw Compressor 15KW
Specifications
Brand Name :
China
Model Number :
PMVFQ15
Certification :
ISO9001,CE
Place of Origin :
China
MOQ :
≥1SETS
Price :
USD3300-3400/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20SETS/month
Delivery Time :
10-20Days
Packaging Details :
Wooden packing
Weight :
380KG
Dimension(l*w*h) :
1200*830*1240
Motor power :
15KW 20HP
Capacity :
0.6-0.9Mpa,6-9Bar
Description
Specification
Main machine: SKYM66L-15 Motor:TYVZ-1850-132M-4
Intake valve: RH-65D (Kerry) Minimum pressure valve:MPV25A (Hongxing)
Safety valve:DN20(0.9Mpa) (Fuyu) Axial flow fan:500FZL-G5-7GLP50LS4D (Furama)
Air filter core :537702 320510 (Kerry) Oil filter core:66 094 172
Air Oil separation core:537704 312040P (Kerry)

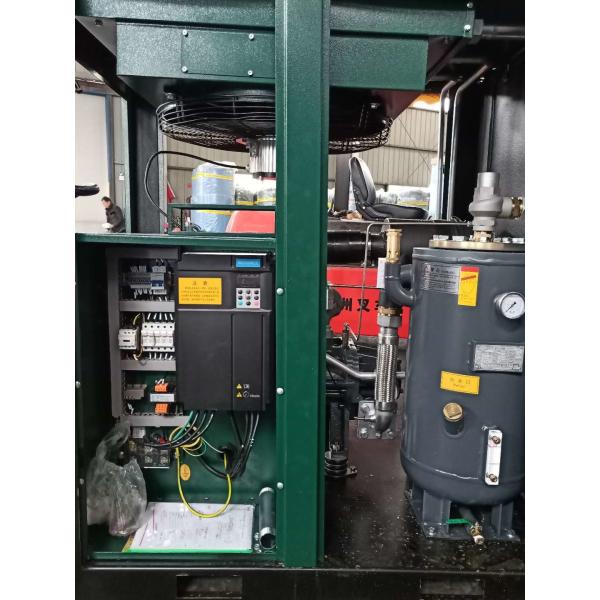

Inverter:Permanent magnet frequency conversion control system(Kaisan) Screw group:5:6 toothed rotor
Compress mode:Continuous, single stage Discharge pressure:P2=0.62-1.0MPa
Cooling method:Fan cooling
Compressed air outlet temperature:10℃ ~ 15℃ higher than the ambient temperature
Lubricating oil capacity:About 15 liters Motor speed:N=4135-5224r/min
Working weight:About 380 KG Air temperature limitation:0℃~45℃
Oil consumption:The exhaust oil content is less than 2PPM Noise:68dB(A)
PMVFQ PM series products
Product model Pressure(Mpa) Capaticy(m3/min) Motor power(KW) Air outlet Weight(KG) Dimension(mm)
PMVFQ15 0.6-0.9 2.37-2.88 15 G1 380 1200*830*1240

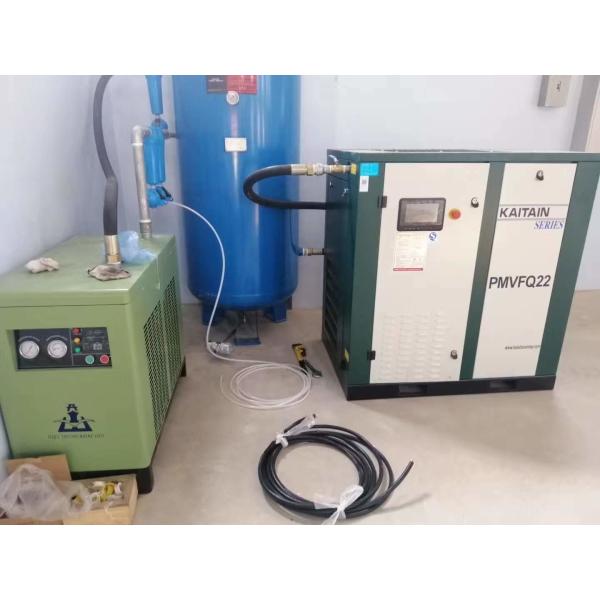

PMVFQ22 0.6-0.9 3.61-4.22 22 G1 480 1200*830*1290
PMVFQ37 0.6-0.9 6.28-7.42 37 G1 1/2 710 1400*1000*1540
PMVFQ45 0.6-0.9 7.73-9.27 45 G1 1/2 990 1500*1160*1700
PMVFQ55 0.6-0.9 9.99-11.95 55 G1 1/2 990 1500*1160*1700
