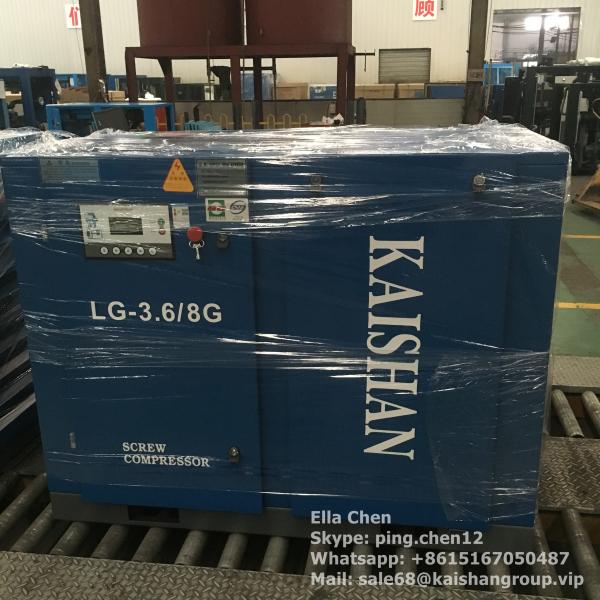

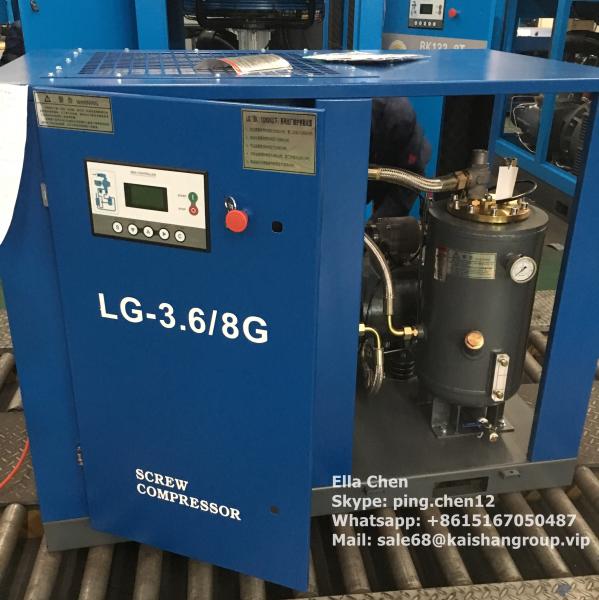

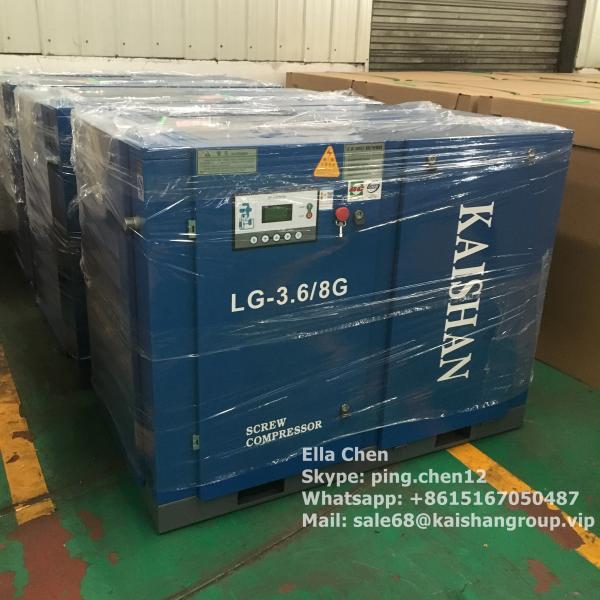

Industrial Screw Air Compressor LG-3.6/8G 30HP 8 Bar Direct Driven
Industrial Screw Air Compressor LG-3.6/8G 30HP 8 Bar Direct Driven
Industrial Screw Air Compressor LG-3.6/8G 30HP 8 Bar Direct Driven
Industrial Screw Air Compressor LG-3.6/8G 30HP 8 Bar Direct Driven
Industrial Screw Air Compressor LG-3.6/8G 30HP 8 Bar Direct Driven
Industrial Screw Air Compressor LG-3.6/8G 30HP 8 Bar Direct Driven
Specifications
Brand Name :
Kaishan
Model Number :
LG-3.6/8G
Certification :
ISO,CE,GC,etc.
Place of Origin :
China
MOQ :
1 set
Price :
$3000-5000 per set
Supply Ability :
500 sets per month
Delivery Time :
3-10 days after the payment
Packaging Details :
wooden case
Configuration :
Stationary
Lubrication Style :
Lubricated
Voltage :
380V/AC3Ph/50Hz (or customized)
Power :
22KW / 30HP
Cooling :
Air-cooling
Description

For Industrial Use KAISHAN LG-3.6/8G 30HP 8Bar Direct Driven Screw Air Compressor

Kaishan offers complete, high cost LG series rotary screw air compressors. They come configured as belt driven (7.5kW - 18.5kW), optional gear driven, direct driven (7.5kW - 250kW) with discharge pressure from 0.7Mpa to 1.3Mpa. Water-cooled and air-cooled units are available. PLC is a common feature for the LG series and is included in VSD packages.

Customers benefits

1. Comply with general standard specification of design.

2. Employ renown domestic electrical appliance brand Delixi and chint

for type of the capacity below 75 kw.with taiwan brand for above and

equal to 75 kw of heavy duty type.

3. Spacious internal space, easy to maintain and repair.

4. For enegry saving , it meet with China standards second Grade Energy Efficiency product.

Specification

Model

LG-3.6/8G

direct driven screw air compressor

Air displacement 3.6 m3/min (126cfm)
discharge pressure 0.8Mpa / 8Bar
Air supply temperature ≤ environment temperature +10 °C
Motor power 22KW/30HP
Voltage 380 V/400V/420V etc
Connector G1
type of cooling Air-Cooled
weight 650KGS
size(L*W*H) 1080*880*1415mm

Advantages

1> Well-know screw compressor end.

2> Interaction control system.

3> Imported advanced micromputer controler which is powerful attroubless diagnosing and portable.

4> Imported air capacity control system.

5> Importable filtration system.

6> Selectable variable frequency control system.

Item Parts Brand
1 Air end SKK(USA)
2 Intake Valve Hoerbiger (Austria),Hongxing
3 Solenoid Valve CEME (Italy),Hongxing
4 Temperature sensor kaishan original
5 Pressure sensor Huba original (from Switzerland)
6 Motor Dongguan/Qingjiang Motor
7 Coupling Germany KTR or kaishan
8 Thermostat Valve Italy VMC
9 PLC Schneider Electric(France),Siemens,Plot
10 Minimal Pressure Valve Hoerbiger (Austria)/kaishan
11 Air filter element Germany MANN /kaishan
12 Oil filter element Germany MANN /kaishan
13 Oil and gas separator element Germany MANN/kaishan
14 Bearing Sweden SKF (Life 60000 hours)
