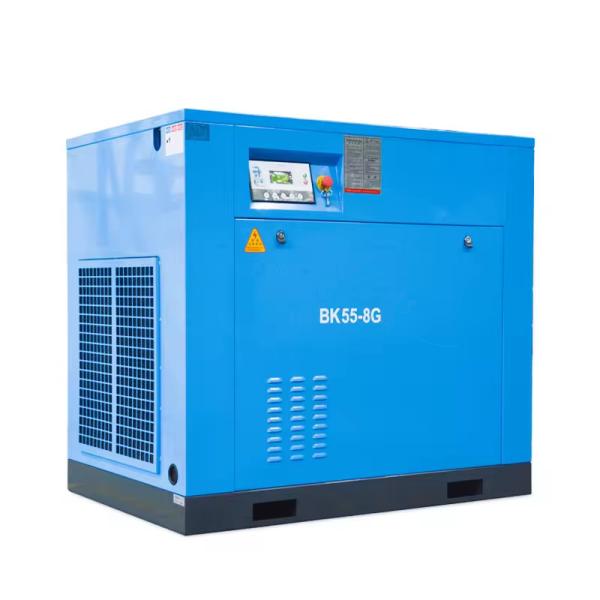

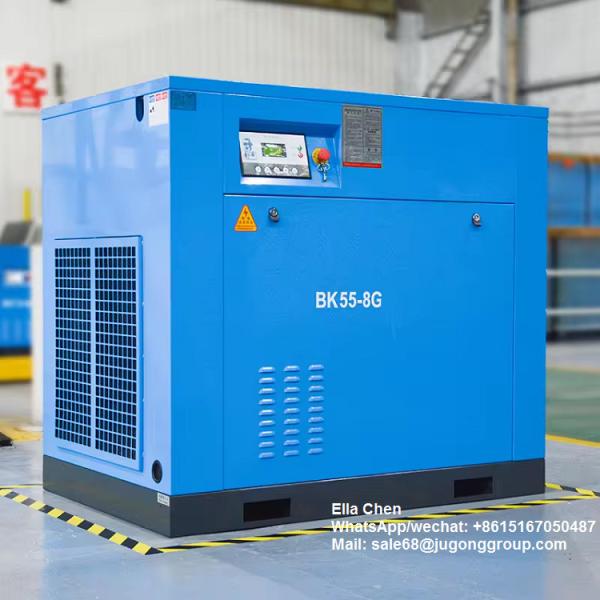

Electric 55kw 100hp 10m3/min 8 bar air compressor rotary gas compressor BK55-8G
Electric 55kw 100hp 10m3/min 8 bar air compressor rotary gas compressor BK55-8G
Electric 55kw 100hp 10m3/min 8 bar air compressor rotary gas compressor BK55-8G
Electric 55kw 100hp 10m3/min 8 bar air compressor rotary gas compressor BK55-8G
Electric 55kw 100hp 10m3/min 8 bar air compressor rotary gas compressor BK55-8G
Electric 55kw 100hp 10m3/min 8 bar air compressor rotary gas compressor BK55-8G
Electric 55kw 100hp 10m3/min 8 bar air compressor rotary gas compressor BK55-8G
Electric 55kw 100hp 10m3/min 8 bar air compressor rotary gas compressor BK55-8G
Electric 55kw 100hp 10m3/min 8 bar air compressor rotary gas compressor BK55-8G
Electric 55kw 100hp 10m3/min 8 bar air compressor rotary gas compressor BK55-8G
Specifications
Brand Name :
kaishan
Model Number :
BK55-8G
Certification :
ISO9001, CE
Place of Origin :
Zhejiang, China
MOQ :
1
Price :
$8000-10000 per unit
Payment Terms :
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 per week
Delivery Time :
3-10 days after payment
Packaging Details :
Carton or Wooden package
Voltage :
380V/400V or customize
Lubrication Style :
Lubricated
Drive Type :
Direct
Rated Power :
55kw /100hp
Air Displacement :
1.2m3/min (40 CFM)
Cooling Mode :
Air Cooling
Stage :
Single stage compression
Capacity :
500 CFM
Noise Leval :
72±2 dB(A)
Description

We may provide all kinds of invert screw air compressor,the power from 5.5kw to 280kw,the air delivery from 0.6m³/min to 72m³/min,the working pressure from 0.5mpa to 1.3mpa,and with water cooling ,air cooling,belt drive or direct connecting.

Characteristics of 30kw air compressor:

Boreas (Boreas, name of the wind god in Greek mythology) series screw air compressors satisfy requirements of the masses of users in the field of low-power, high cost-effective screw air compressors.
-Less quick-wear parts, compact structure and good stability.
-Good economics, easy maintenance and suitable for small power host machine.
-It provides high-efficiency, easily maintained and more economic air system.
Man-machine interface display control system
-Particularly convenient and simple to operate.
-Running status clear at a glance.
-Capable of 24-hour unattended operations.
-Once improper factors appear, prompt maintenance or repair immediately.
-With standby output interface, able to realize multiple units interlocking control and remote diagnostic control.
New-generation low-consumption and high-efficiency motor
-Large starting torque.
-Insulation grade F and protection grade IP 23.
-With refueling device and capable of non-stop refueling.

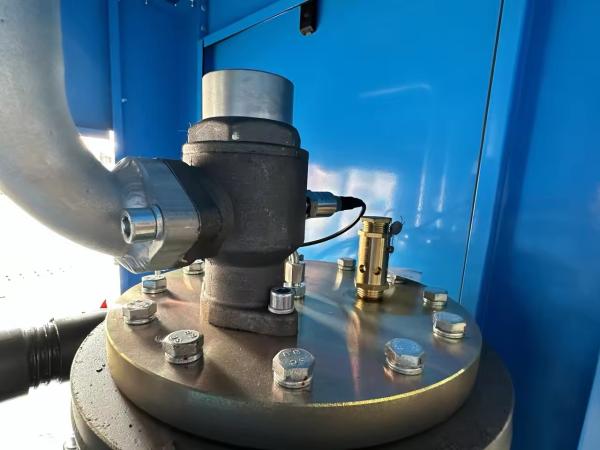

Efficient air inlet valve
-ON/OFF control mode.
-With check valve blowout preventing design.
Built-in oil separator system
Built-in oil separation design guaranteeing oil and gas separation effects, reducing fuel consumption, and providing adequate
assurance for the product quality from the initial design.

Specifications:

Model
Mpa
m3/min
KW
Output pipe diameter
KG
Dimension(mm)
BK7.5-8G
0.8
1.2
7.5
G3/4
200
800*620*800
BK7.5G-8
0.8
1.1
7.5
G3/4
200
880*510*800
BK11-8G
0.8
1.7
11
G1
280
1000*670*1090
BK15-8G
0.8
2.4
15
G1
280
1000*670*1090
BK15-8
0.8
2.4
15
G1
270
700*670*1250
BK15-10
1.0
2.2
15
G1
270
700*670*1250
BK15-13
1.3
1.7
15
G1
270
700*670*1250
BK22-8G
0.8
3.45
22
G1
390
1200*800*1120
BK22-10G
1.0
3.2
22
G1
390
1200*800*1120
BK22-13G
1.3
2.7
22
G1
390
1200*800*1120
BK30-8G
0.8
5
30
G1 1/2
470
1340*850*1330
BK30-10G
1.0
4.4
30
G1 1/2
470
1340*850*1330
BK30-13G
1.3
3.6
30
G1 1/2
470
1340*850*1330
BK37-8G
0.8
6
37
G1 1/2
560
1340*850*1330
BK37-10G
1.0
5.4
37
G1 1/2
560
1340*850*1330
BK37-13G
1.3
4.6
37
G1 1/2
560
1340*850*1330
BK45-8G
0.8
7.1
45
G1 1/2
720
1480*1030*1340
BK45-10G
1
6.2
45
G1 1/2
720
1480*1030*1340
BK45-13G
1.3
5.6
45
G1 1/2
720
1480*1030*1340
BK55-8G
0.8
10
55
G1 1/2
790
1480*1030*1340
BK55-10G
1
7.2
55
G1 1/2
790
1480*1030*1340
BK55-13G
1.3
6.2
55
G1 1/2
790
1480*1030*1340
BK75-8
0.8
13
75
G2
1200
1800*1190*1710
BK90-8
0.8
16
90
G2
1240
1800*1190*1710
BK110T-8
0.8
21
110
DN65
1630
2100*1230*1730
BK110-8
0.8
21
110
DN65
1680
2100*1230*1730
BK132T-8
0.8
24
132
DN65
1670
2100*1230*1730
BK132-8
0.8
24
132
DN65
1750
2100*1230*1730
KS175A-8F
0.8
24
132
DN65
1470
1800*1230*1670
KA150-8-ll
0.8
22
110
DN65
1950
2100*1230*1730
KA175-8-ll
0.8
25
132
DN65
1990
2100*1230*1730
