Specifications
Brand Name :
Kaishan brand
Model Number :
BK7.5-8G
Certification :
ISO9001,ASME,QAC.CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 700-1100 per set
Payment Terms :
L/C, T/T
Supply Ability :
500 set per month
Delivery Time :
3-5 work days
Packaging Details :
1.plywood cases suitable for sea transportation 2.as customer's requirement
Color :
Blue
Configuration :
Stationary
Driven Type :
Direct driven
OEM :
Acceptable
Application :
Compress air for industrial use
Cooling Method :
Air cooling
Description

Kaishan brand BOREAS series stationary screw air compressor

Main Features of BK series air screw compressors

  • Class 2 energy efficiency
  • Lower noise level, oil free
  • Multi power
  • America designed made in china
  • Advanced electric control operating system
  • Low operating cost
  • Frequency conversion is available for each air compressor
  • Good environmental adaptability

1. The built-in oil-separation system:

Using built-in oil-separation design, to ensure that the oil and gas separation effect, reduce the fuel consumption, the product quality from the beginning of the design have sufficient security.

2. High efficiency air inlet valve:

ON/OFF control method

The non-return valve avoid spray oil design

3. A new generation of low power high efficiency motor:

Starting torque big

Insulation class F class, with IP54 protection grade

SKF bearing, low noise, long service life

A refueling device, don't stop also can add oil.

4. Humanized human-computer interface display control system:

Very convenient, simple operation

Running state be clear at a glance

In the unattended under the condition of the 24 hours to work for you

Abnormal factors once appear, prompt maintenance or repair immediately

Leave spare output interface, can achieve more units chain control and remote diagnosis control

Model Capacity (FDA) Working pressure Power Net weight Dimension
(M3/min) (MPa/Bar) (KW/HP) (KG) (mm)
BK11-8 1.7 0.8/8 11/15 370 1020*820*1235
BK11-10 1.5 1.0/10
BK11-13 1.2 1.3/13
BK15-8 2.4 0.8/8 15/20 380 1020*820*1235
BK15-10 2.2 1.0/10
BK15-13 1.7 1.3/13
BK18-8 3 0.8/8 18/25 500 1080*880*1235
BK18-10 2.7 1.0/10
BK18-13 2.3 1.3/13
BK22-8 3.6 0.8/8 22/30 540 1080*880*1235
BK22-10 3.2 1.0/10
BK22-13 2.7 1.3/13
BK30-8 5 0.8/8 30/40 650 1120*930*1290
BK30-10 4.4 1.0/10
BK30-13 3.6 1.3/13
BK37-8 6 0.8/8 37/50 730 1240*1030*1435
BK37-10 5.5 1.0/10
BK37-13 4.6 1.3/13
BK45-8 7.1 0.8/8 45/60 820 1240*1030*1595
BK45-10 6.5 1.0/10
BK45-13 5.6 1.3/13
BK55-8 9.5 0.8/8 55/75 1200 1540*1200*1470
BK55-10 8.5 1.0/10
BK55-13 7.4 1.3/13

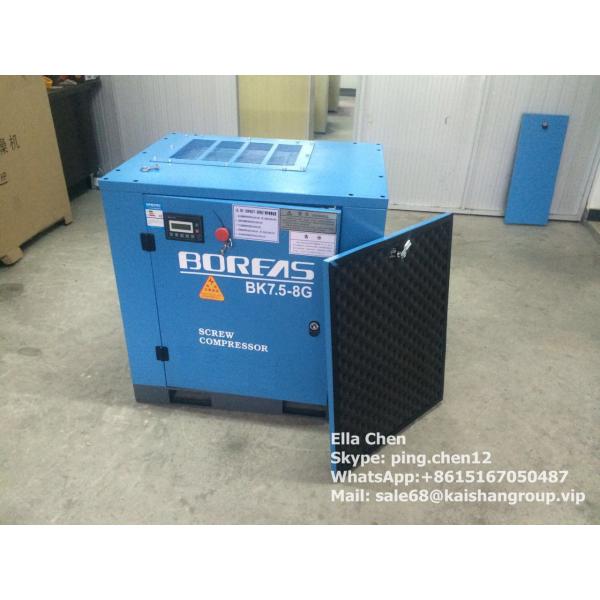

Double Screw 10hp 0.8Mpa 1.2m3/Min BK7.5-8G Rotary Air Compressor Air Cooling

Our small low price electric motor driven screw air compressor for sale now.

Power range: 11KW, 15KW, 18KW, 22KW, 30KW, 37KW, 45KW, 55KW, 75KW, 110KW.

Working pressure: 8bar, 10bar and 13bar

The products provided by us is of 1 year warranty, and on-line service will be supplied by us in time whenever you have any problem or question about the products you want to purchase or have purchased from us.
