0.81KW-15KW Electric 2BV Series Industrial High Pressure Water Circulation Vacuum Pump Compressor
0.81KW-15KW Electric 2BV Series Industrial High Pressure Water Circulation Vacuum Pump Compressor
0.81KW-15KW Electric 2BV Series Industrial High Pressure Water Circulation Vacuum Pump Compressor
0.81KW-15KW Electric 2BV Series Industrial High Pressure Water Circulation Vacuum Pump Compressor
Specifications
Brand Name :
Huatao
Model Number :
Vacuum pump
Place of Origin :
China
Certification :
CE
MOQ :
1 SET
Price :
USD 750
Packaging Details :
Standard packaging
Delivery Time :
10-15 Work Days
Payment Terms :
TT L/C Western Union paypal
Supply Ability :
100 Sets/ month
Product :
2BV Series Water ring vacuum pump
Power :
0.81KW-15KW
Voltage :
380V
Power Source :
Electric
Motor :
As your request
Color :
Custom Made
Description

0.81KW-15KW Electric 2BV Series Industrial High Pressure Water Circulation Vacuum Pump Compressor

2BV Series Water Ring Vacuum Pump Product Description:

The 2BV series water ring vacuum pump is suitable for extracting gas and water vapor, andthe suction pressure can reach 33mbar absolute pressure (97% vacuum). When usingtransformer oil as the working fluid (referred to as oil ring) Vacuum pump, suction pressurecan reach 6.7mbar absolute pressure (99.3% vacuum degree), can Completely replacereciprocating vacuum pumps. When the vacuum pump operates for a long time at a suctionpressure close to the limit vacuum, a cavitation protection pipe should be connected toprotect the pump. When used as a compressor, its maximum pressure is up to 0.26MPa(absolute pressure). As a new generation energy-saving product, the 2BV series water ringvacuum pump Excellent performance and numerous advantages will comprehensivelyreplace same-sex SK,2SK,W, WY, WL Series water ring vacuum pump, reciprocating
vacuum pump.The 2BV6 water ring vacuum pump/compressor is mainly used for extracting explosivegases and in various applications Working in flammable and explosive environments. Workin flammable and explosive environments.

2BV Series Water Ring Vacuum Pump Features:

1. Compact Design, install Easily
The coaxial direct connection design of the pump saves space for installation
2. High Protection Class
All Y2 series motors are used, with a protection level of lP54
3. Strong sealing, maintenance free
Adopting high-quality mechanical seals as standard configuration, leak free and maintenance
4. Low Noisy
Smooth operation,with noise levels as low as 62 decibels
5. Anti-corrosion
Unified corrosion resistance design, aluminum bronze impeller improves the corrosionresistance of the pump, such as using stainless steel. Steel materials can be used in moredemanding application environments
6. Unique flexible exhaust port design
The unique flexible exhaust port design does not generate excessive compression. ensuring thatthe 2BV series vacuum pump has the best efficiency within its performance range.
0.81KW-15KW Electric 2BV Series Industrial High Pressure Water Circulation Vacuum Pump Compressor

2BV Series Water Ring Vacuum Pump Technical Parameters:

Keyword Vacuum Pump
Business Type Factory/Manufacturer
Brand Name Huatao
Factory Established Year 2008
Factory located Hebei
Product Name 2bv Series Water Ring Vacuum Pump
Warranty 1 year (except the quick-wear part)
Certification CE, ISO9001
OEM&ODM Support

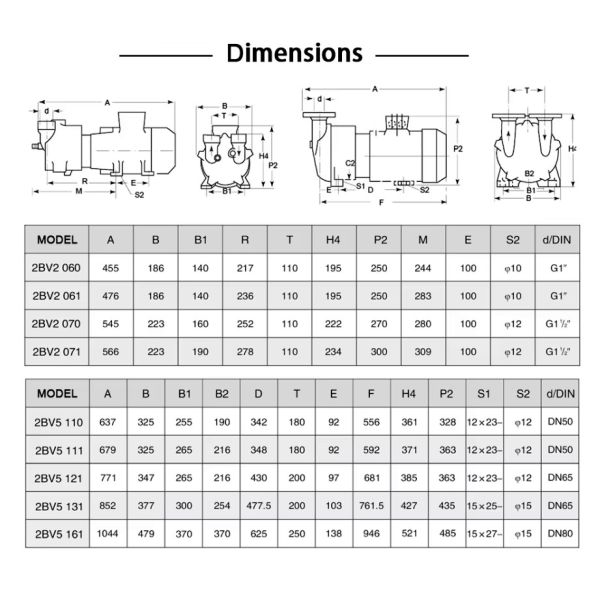

2BV Series Water Ring Vacuum Pump Dimension:

0.81KW-15KW Electric 2BV Series Industrial High Pressure Water Circulation Vacuum Pump Compressor

Support and Services:

Our Industrial Vacuum Pump product comes with comprehensive technical support and services to ensure that our customers get the best out of their purchase. Our team of experts is available to provide assistance with installation, operation, and maintenance of the product. We also offer training to help customers learn how to use the product effectively and optimize its performance. In addition, we offer repair and replacement services to ensure that the product operates at peak efficiency throughout its lifespan. Our goal is to provide our customers with the highest level of support and service possible.

Packing and Shipping:

Product Packaging:

  • 1 Industrial Vacuum Pump
  • 1 User Manual
  • 1 Power Cord
  • 2 Hose Adapters

Shipping:

  • Shipping Method: Standard Ground
  • Estimated Delivery Time: 3-5 Business Days
  • Shipping Cost: Free
  • Shipping Restrictions: This product can only be shipped within the United States and Canada.
