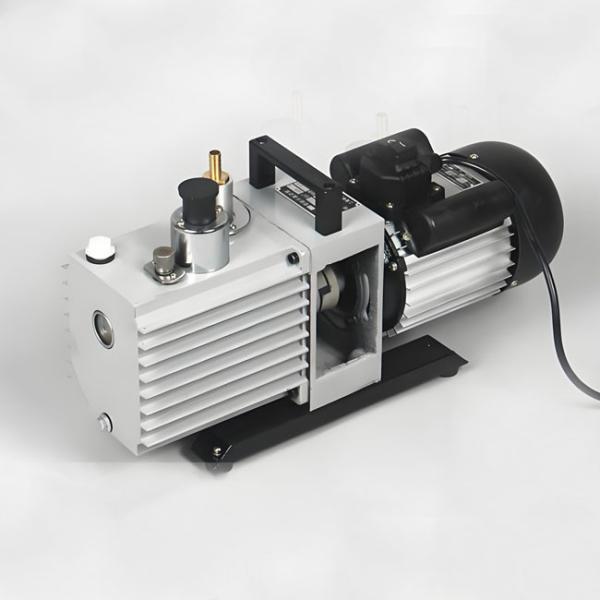

Rotary Vane Vacuum Pump Single And Two Stage Versions
Rotary Vane Vacuum Pump Single And Two Stage Versions
Rotary Vane Vacuum Pump Single And Two Stage Versions
Rotary Vane Vacuum Pump Single And Two Stage Versions
Specifications
Brand Name :
Huatao
Model Number :
HT-Rotary vane vacuum pump
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
USD 200-700 per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets per month
Delivery Time :
35~50 days
Packaging Details :
Wooden Box
Name :
Rotary vane vacuum pump
Material :
Cast Iron,stainless steel
Power :
0.55-7.5W
Suction Caliber :
25-80
Flow :
0.5-15（L/s）m³/h
Head :
2~ 20m
Rotor Diameter :
300~1480mm
Voltage :
380V
Description

Rotary vane vacuum pump single- and two-stage versions

1,Double-stage vacuum pump features: the vane groove on the rotor of the front stage pump adopts slant vane groove, the maximum closed working space formed by two adjacent vanes (rotor and pump body) increases, which improves the pumping speed. After the front vacuum pump, the rear vacuum pump is connected in series. Harmful space gas in the front vacuum pump is rapidly sucked in by the rear vacuum pump to improve the ultimate vacuum degree of pumping.

2,Characteristics of single-stage vacuum pump: The suction port is installed with a coarse filter of metal wire mesh. It prevents solid particles from being sucked into the pump chamber. The oil separator is equipped with a high-efficiency oil-air separation exhaust changeover switch. When the pump stops, the suction valve in the suction port isolates the pump from the pumping system and prevents the vacuum pump oil from returning to the pumping system. The pump is cooled by air.

Rotary vane vacuum pump Specification

Product Model 50/60Hz RH0063
Pumping Speed 50Hz 63m³/H
60Hz 76m³/H
Ultimate Pressure mbar 0.1
Inlet Diameter G1 1/4''
Voltage 50Hz 200-240/345-415V
60Hz 220-275/380-480V
Motor Power kW 2.2
Current (A) 50Hz 8.5/4.9
60Hz 9.2/5.3
Rotate Speed r/min 1440/1720
Noise Level dB 63
Oil Volume L 2.0
Net Weight kg 55

Rotary vane vacuum pump advantage

1. Small size, light weight, noise
2. Can be in the ambient temperature range of 540, the inlet pressure is less than 1.3X103Pa conditions allow long-term continuous operation
3. Equipped with a gas ballast valve, which can pump out a small amount of water vapor.
4. Equipped with automatic anti-oil return double insurance device (except 380V).

Rotary Vane Vacuum Pump Single And Two Stage Versions

Rotary Vane Vacuum Pump Single And Two Stage Versions

Rotary Vane Vacuum Pump Single And Two Stage Versions
