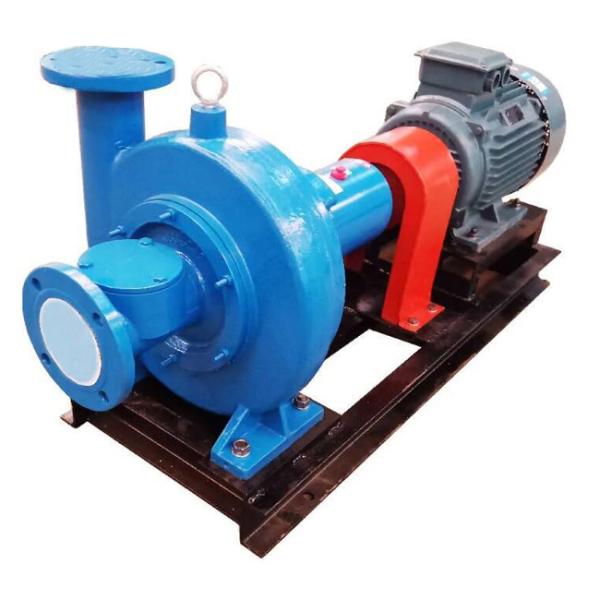

0.75kw-220kw Industrial Centrifugal Pump Vortex Pulp Pump For Paper Pulp Industry
0.75kw-220kw Industrial Centrifugal Pump Vortex Pulp Pump For Paper Pulp Industry
0.75kw-220kw Industrial Centrifugal Pump Vortex Pulp Pump For Paper Pulp Industry
0.75kw-220kw Industrial Centrifugal Pump Vortex Pulp Pump For Paper Pulp Industry
Specifications
Brand Name :
Huatao
Model Number :
HT- Pulp Centrifugal Pump
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
USD 500-2000 per set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 sets per month
Delivery Time :
20-35 days
Packaging Details :
Wooden Box
Product Name :
Paper Industry Centrifugal Pumps
Impeller :
Open
Flow Rate :
12.5-2400m3/h
Head :
8-70m
Temperature :
≤120℃
Pulp medium :
Concentration≤6%
Power :
0.75-220kw
Inlet and outlet diameter :
65mm-500mm
Description

No Jam Port Width Centrifugal Paper Pulp Vortex Pump For Paper Pulp Industry

Vortex Pulp Pump Overview

This type of vortex pump is researched and developed in view of the pulp and paper industry in the wood, reed pieces, plasma slag, and sludge, developed a special medium cyclone type pump.

Vortex Pulp Pump Advantage

1. Port width, no jam

2. Easy to disassemble, easy to maintain

3. Spare parts versatility, bearing seat is interchangeable with other types

4. Safe, reliable range of application

Vortex Pulp Pump Application

1. Contain liquid of wood, grass, reeds

2. Liquid containing highly corrosive medium

3. Mud containing large granular impurities

4. Long fiber pulp

5. Liquid of inflatable or high air content, etc

Vortex Pulp Pump Specification

Product Name Vortex Pulp Pump
Flow 12.5-2400m3/h
Head 8-70m
Power 0.75-220kw
Working temperature ≤80ºC
Density ≤6%
Special performance can be designed if needed.

0.75kw-220kw Industrial Centrifugal Pump Vortex Pulp Pump For Paper Pulp Industry

0.75kw-220kw Industrial Centrifugal Pump Vortex Pulp Pump For Paper Pulp Industry

After telling us your needs, a detailed quotation will be sent to you, which includes a CAD layout drawing and all machinery lists with specifications. Popular pulp-making equipment includes a double-disc pulp refiner, double screw pulp squeezer, fiber separator, drum screen, high-speed pulp washer, high-consistency sand remover, low-consistency impurity remover, reject separator, flotation deinking machine, vibration screen, cylinder pulp thickener, pressure screen, pulp pump, pulp consistency controller, high consistency bleaching system, disc heat dispersing system, etc.

Huatao Supply The Spare Parts For All Kinds of Pump

Huatao Pumps Application

0.75kw-220kw Industrial Centrifugal Pump Vortex Pulp Pump For Paper Pulp Industry

Huatao Pumps Package, Shipment, Workshop

0.75kw-220kw Industrial Centrifugal Pump Vortex Pulp Pump For Paper Pulp Industry0.75kw-220kw Industrial Centrifugal Pump Vortex Pulp Pump For Paper Pulp Industry

Exhibition And Customer Visting

0.75kw-220kw Industrial Centrifugal Pump Vortex Pulp Pump For Paper Pulp Industry

Please ask for pump details and price by chris@huataogroup.com, Whatsapp: 0086 137 0329 5214.

For any questions will reply within 24 hours.
