20m/h-3300m/h Industrial Centrifugal Pump Stainless Steel Without Blocking Leakage
20m/h-3300m/h Industrial Centrifugal Pump Stainless Steel Without Blocking Leakage
20m/h-3300m/h Industrial Centrifugal Pump Stainless Steel Without Blocking Leakage
20m/h-3300m/h Industrial Centrifugal Pump Stainless Steel Without Blocking Leakage
Specifications
Brand Name :
Huatao
Model Number :
HT- Pulp Centrifugal Pump
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
USD 500-2000 per set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 sets per month
Delivery Time :
20-35 days
Packaging Details :
Wooden Box
Product Name :
Paper Industry Centrifugal Pumps
Speed :
750r/min 990r/min 1480r/min 2960r/min
Voltage :
380V 6kV 10Kv
Inlet and outlet diameter :
65mm-500mm
Flow Rate :
20m/h-3300m/h
Head :
5m-100m
Temperature :
The highest temperature of liquid≤120℃
Pulp medium :
Concentration≤6%
Description

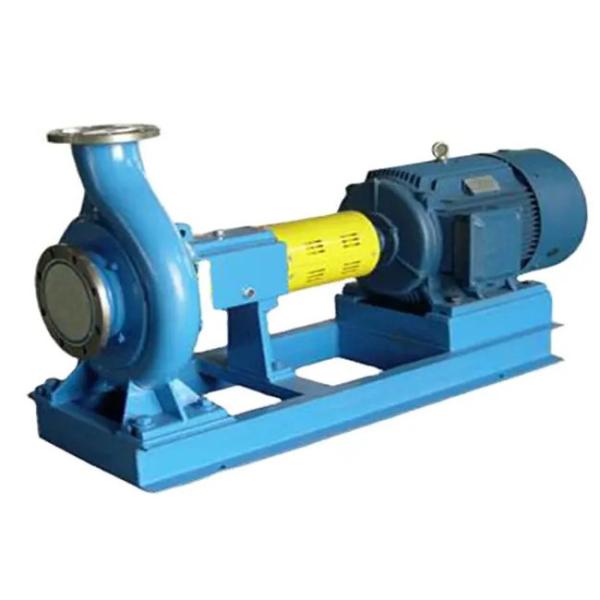

Paper Industry Without Blocking Leakage SS316 Centrifugal Pumps

Paper Pulp Centrifugal Pumps Description

The series of non-block and non-leaked centrifugal pumps is suitable for pumping a variety of different media as it is the single stage, single flow, volute centrifugal pump. This series has 19 models so that it can meet the requirements of operating conditions with the best performance. It is easy to maintain. When removing or installing the impeller, wear-resisting lining, pump cover, shaft seal, and bearing frame, you will remove the pump neither from the suction pipe nor the output pipe because of its process design. With two wear-resisting linings, the front and the back, it provides sufficient protection for the pump body and pumps cover to prolong its service life. To offer high efficiency, it opens the three-blade impeller.

Paper Pulp Centrifugal Pumps Application

This product is widely used in pulp manufacturing, sugar refining, chemical raw materials, Industrial wastewater environmental protection engineering, and municipal road engineering.

Paper Pulp Centrifugal Pumps Specification

Product Name Paper Pulp Centrifugal Pumps
Speed 750,990,1480 and 2960r/min
Voltage 380,6kV or 10Kv
Inlet and outlet diameter 65mm-500mm
Flow rate 20m-3300m/h
Head scope 5m-100m
Operating temperature the highest temperature of liquid≤120℃
The maximum working pressure

1.0MPaor1.6MPa,

Special configuration can reach 1.6MPa or 2.5MPa
The medium Concentration≤6%

Huatao Supply The Spare Parts For All Kinds of Pump

Huatao Pumps Application

20m/h-3300m/h Industrial Centrifugal Pump Stainless Steel Without Blocking Leakage

Huatao Pumps Package, Shipment, Workshop

20m/h-3300m/h Industrial Centrifugal Pump Stainless Steel Without Blocking Leakage20m/h-3300m/h Industrial Centrifugal Pump Stainless Steel Without Blocking Leakage

Exhibition And Customer Visting

20m/h-3300m/h Industrial Centrifugal Pump Stainless Steel Without Blocking Leakage

Please ask for pump details and price by chris@huataogroup.com, Whatsapp: 0086 137 0329 5214.

For any questions will reply within 24 hours.
