Single Core Low Voltage Low Smoke Zero Halogen Cable LSZH TUV Certificated
Single Core Low Voltage Low Smoke Zero Halogen Cable LSZH TUV Certificated
Specifications
Brand Name :
Zhongdong
Model Number :
NYBY NAYBY
Certification :
IEC,CE,ISO,TUV
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
,L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
7-30 days based on different qty
Packaging Details :
Rolls, Wooden Drums, Steel Drums, Reels or customized
Voltage :
300V, 500V, 450V, 750V
Jacket :
PVC or XLPE
Feature :
LSZH
Application :
underground, overhead, indoor, mining and power distribution etc
Description

Single Core Low Voltage Low Smoke Zero Halogen Cable LSZH TUV Certificated



Application


The Cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial,aerial supported by a messenger, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 90°C for normal operation in wet and dry locations, 130°C for emergency overload, and 250°C for short circuit conditions



Construction


  1. Conductor :Class 2 stranded copper conductor
  2. Insulation :XLPE (Cross-Linked Polyethylene)
  3. Bedding :LSZH (Low Smoke Zero Halogen)
  4. Armour :STA (Steel Tape Armour)
  5. Sheath :LSZH (Low Smoke Zero Halogen)


Advantage


  1. Composite high temperature resistance performance
  2. Compressive and tensile strengthening
  3. LSZH jacket
  4. Anti bending and anti deformation
  5. Electromagnetic and Environmental Adaptability
  6. Low frequency interference shielding
  7. Chemical corrosion protection
  8. Direct burial without conduit
  9. Extended lifespan



Specification


No of cores and cross area
N.x mm²

Number of wires/diameter of wires
No./mm

Thickness of Insulation
mm

Nominal outer diameter
mm

Weight
Kg/km

0.5

16/0.20

0.6

2.12

9.0

0.5

28/0.15

0.6

2.12

9.0

0.75

24/0.20

0.6

2.33

12.0

0.75

42/0.15

0.6

2.33

12.0

1

32/0.20

0.6

2.5

15.0

1.5

48/0.20

0.7

3

20.9

1.5

30/0.25

0.7

2.98

20.9

2.5

49/0.25

0.8

3.62

32.5

2.5

77/0.20

0.8

3.63

32.5

4

56/0.30

0.8

4.2

50.1

6

84/0.30

0.8

4.78

71.7

10

84/0.40

1

6.23

125.1

16

126/0.40

1

7.88

179.3

25

19670.40

1.2

9.48

275.9

35

276/0.40

1.2

10.95

375.7

50

396/0.40

1.4

12.63

537.5

70

360/0.50

1.4

14.53

744.7

95

475/0.50

1.6

16.99

987.8

120

608/0.50

1.6

18.69

1242.6

150

764/0.50

1.8

21.70

1526.9

185

925/0.50

2.0

24.3

1874

240

1120/0.50

2.0

27.7

2456

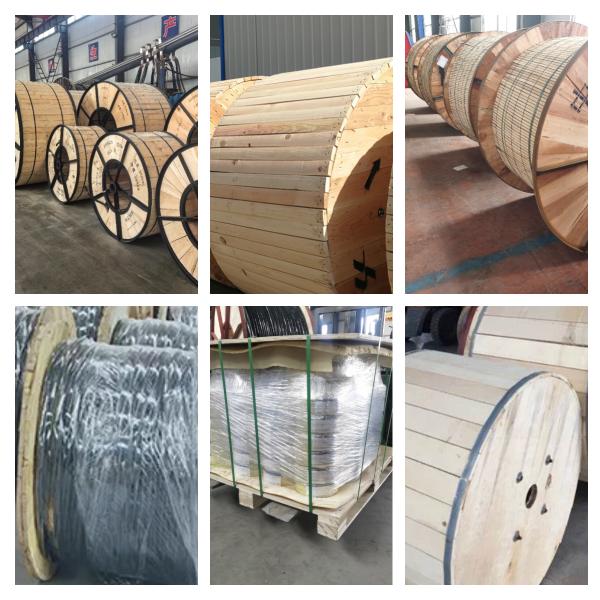

Packaging
