Low Voltage LSZH Cable AL/ XLPE/AWA/SWA/PVC NA2XRH IEC 60502-1
Low Voltage LSZH Cable AL/ XLPE/AWA/SWA/PVC NA2XRH IEC 60502-1
Specifications
Brand Name :
Low Smoke Zero Halogen Cable
Model Number :
N2xh N2xh-J N2xh-O
Certification :
IEC,CE,ISO,TUV
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
,L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
7-30 days based on different qty
Packaging Details :
Rolls, Wooden Drums, Steel Drums, Reels or customized
Voltage :
0.6/1kV
Insulation :
XLPE
Jacket :
lszh
Feature :
LSZH
No of Cores :
1,2,3,4,5
Standards :
VDE 0276 part 604, VDE 0482-266-2, DIN EN 60332-3 / EN50266-2
Description

Low Voltage LSZH Cable AL/ XLPE/AWA/SWA/PVC NA2XRH IEC 60502-1



APPLICATION


LSZH cable with steel wire armour (SWA) is used in power networks, underground, outdoor, indoor applications and in cable ducting. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.

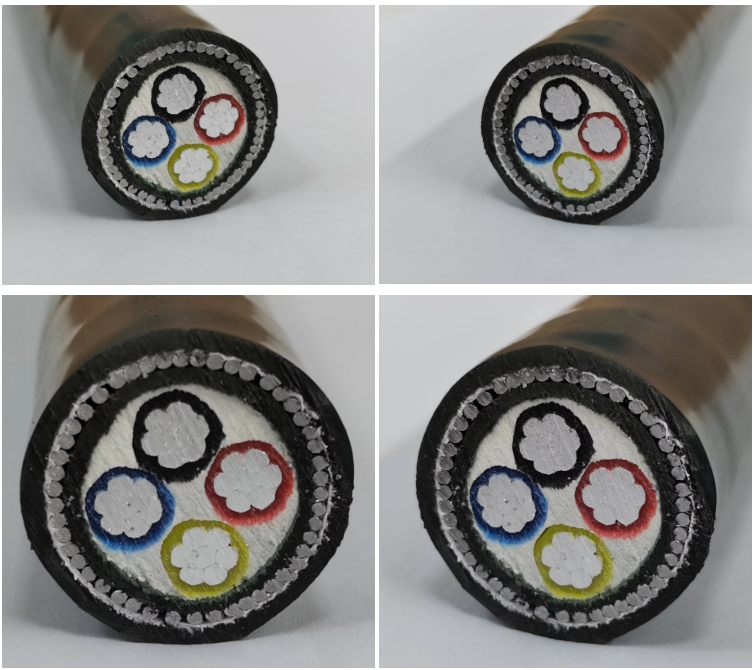

CONSTRUCTION


Conductor :Class 2 stranded aluminium conductor

Insulation :XLPE (Cross-Linked Polyethylene)

Filler :LSZH (Low Smoke Zero Halogen)

Armour :Single core: AWA (Aluminium wire armour) All other sizes: SWA (Galvanized round steel wire)

Sheath :LSZH (Low Smoke Zero Halogen)



Low Voltage LSZH Cable AL/ XLPE/AWA/SWA/PVC NA2XRH IEC 60502-1



STANDARD

EN 60332-1 / EN50266-1


CHARACTERISTICS

Voltage Rating Uo/U 0.6/1kV

Temperature Range Fixed: -5°C to +90°C


SPECIFICATION


3 -Cores
3 x 16
2
1.91
17.8
87
77
3 x 25
2
1.2
21.5
111
97
3 x 35
2
0.868
23.4
134
120
3 x 50
2
0.641
26.9
160
146
3 x 70
2
0.443
31.3
197
187
3 x 95
2
0.32
35.7
234
227
3 x 120
2
0.253
39.8
266
263
3 x 150
2
0.206
44.2
300
304
3 x 185
2
0.164
49.6
337
347
3 x 240
2
0.125
55.2
389
409
3 x 300
2
0.1
61.4
440
471

Contact us for more details

Low Voltage LSZH Cable AL/ XLPE/AWA/SWA/PVC NA2XRH IEC 60502-1

Low Voltage LSZH Cable AL/ XLPE/AWA/SWA/PVC NA2XRH IEC 60502-1



Low Voltage LSZH Cable AL/ XLPE/AWA/SWA/PVC NA2XRH IEC 60502-1

Low Voltage LSZH Cable AL/ XLPE/AWA/SWA/PVC NA2XRH IEC 60502-1

Low Voltage LSZH Cable AL/ XLPE/AWA/SWA/PVC NA2XRH IEC 60502-1


FAQ


1.Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.Welcome to visit us. we'll pick you up in Nanning and ensure the quality of the product.

2.How can l get a sample to test your quality?
1.lf we do have inventory and sample quantity is small, it's free.
2.lf we do not have inventory or large quantity is required. you need to pay the prolfreight cost.

3.What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.You'd better order a suitable quantity to avoid the high freight.Sea
transportation is the best option.

4.Do you Support Customized Product Specification?
Yes, Simply offer your products specification, A Drawing or Diagram will be helpful.

5.Does your company accept OEM production?
Yes, could print your company name.
