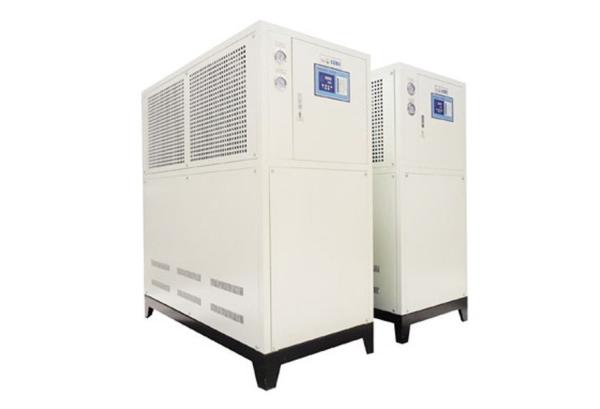

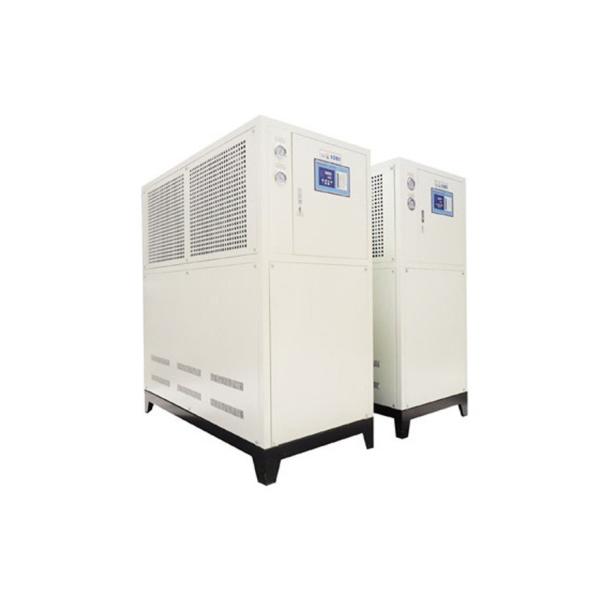

Name: Dual Purpose Safety Temperature Control Unit 3 Phase Water Cooled Centrifugal Chiller
Brand: DONGXING
Price: 6000 USD

MachineU > China Products

Dual Purpose Safety Temperature Control Unit 3 Phase Water Cooled Centrifugal Chiller

Specifications

Brand Name :

DONGXING

MOQ :

Packaging Details :

Plywood case

Delivery Time :

15-30days

Payment Terms :

T/T

Price :

6000-2000000RMB/Set

Cooling Type :

Air-cooled or water-cooled

Heating Type :

Electric or steam

Power Supply :

3-phase, 380V/50Hz

Heating Power :

60kw

Dimensions :

Depends on model

Color :

white

Control System :

Microprocessor-based

Noise Level :

Less than 70 dB

Heating Capacity :

Up to 1200 kW

Certifications :

CE, ISO9001

Condition :

Brandnew

Compressor Type :

Scroll, screw, or centrifugal

Cooling Capacity :

Up to 1000 kW

Weight :

Depends on model

Evaporator :

Shell & Tube type

Description

DX-M series hot and cold dual-purpose chillers are specialized in providing dual-use integration of cooling and heating circulating water. The dual-purpose cold and hot water chillers are widely used in sponge manufacturing, composite foaming, medicine and chemical industries.
★ Cooling circulating water can be provided to cool the equipment or provide hot water for heating according to production needs. At the same time, the temperature can be kept constant at ±2°C. One-key operation, convenient conversion, and fast heating and heating speed.
★ The main engine is selected from the United States and Japan brand new imported compressors, built-in safety protection, low noise, stable and durable.
★ The electrical parts are all selected from the international brand "Schneider" original products. ★ Complete protection measures, intelligent fault indication, buzzer alarm, high degree of automation, no need for special personnel to operate.

Performance parameters of DX-M series dual-purpose temperature control unit

Item model		DX-3M	DX-5M	DX-8M	DX-10M	DX-12M	DX-15M
Cooling capacity	Kcal/h	6803	11094	17,604	22188	25146	35500
Cooling capacity	KW	7.91	12.9	20.47	25.8	29.24	41.28
Input total power KW		9.33	14.8	21.25	22.37	29.58	33.82
power supply		3PH-380V-50HZ
The refrigerant	name	R22
The refrigerant	way to control	Capillary		Externally balanced thermal expansion valve
compressor	type	Fully enclosed scroll type (piston type)
compressor	Power (KW)	2.8	4.66	7.95	8.85	9.98	13.62
Condenser	type	High efficiency copper tube sleeve aluminum fin type + low noise external rotor fan
Condenser	Cooling air volume (m3/h)	3000	5000	8000	10000	12000	15000
Evaporator	type	Water tank coil (shell and tube type)
	Chilled water volume m3	1.36	2.22	3.52	4.44	5.03	7.1
	Water tank capacity L	50	70	120	200	200	270
	Inlet and outlet pipe diameter	1"	1"	1"	1-1/2″	1-1/2″	2"
Water pump	Power (KW)	0.37	0.75	0.75	0.75	1.1	1.5
Water pump	Head (M)	20	20	twenty two	20	20	20
heating equipment	Heating pipe
heating equipment	Power (KW)	6	9	12	12	18	18
safety protection		Compressor overheat protection, overcurrent protection, high and low pressure protection, over temperature protection, flow protection, phase sequence/phase loss protection, exhaust overheat protection, antifreeze protection.
Dimensions	Length (MM)	930	1140	1300	1530	1680	1800
	Width (MM)	520	560	720	760	810	990
	High (MM)	975	1040	1350	1470	1280	1680
Machine weight	Kg	135	175	320	450	530	750
