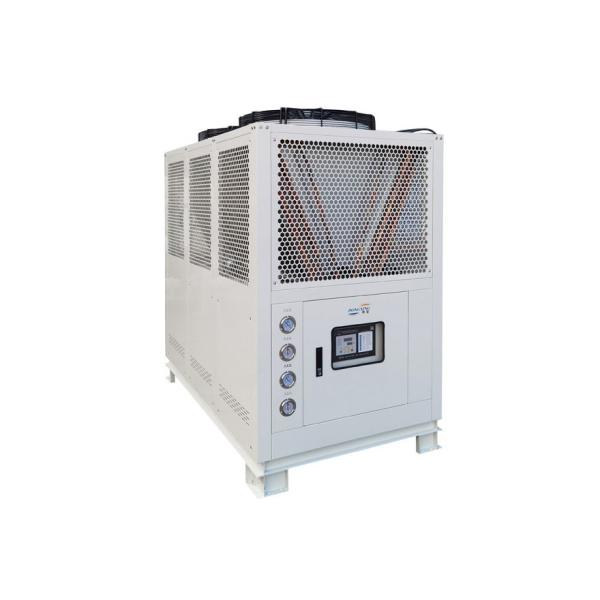

Name: Customized Heating And Cooling Chiller Constant Temperature And Humidity Commercial Chiller System
Brand: DONGXING
Price: 6000 USD

MachineU > China Products

Customized Heating And Cooling Chiller Constant Temperature And Humidity Commercial Chiller System

Specifications

Brand Name :

DONGXING

MOQ :

Packaging Details :

Plywood case

Delivery Time :

15-30days

Payment Terms :

T/T

Price :

6000-2000000RMB/Set

Noise Level :

Less than 65 dB(A)

Weight :

500 kg

Power Supply :

380-415V/3Ph/50Hz

Heating Capacity :

Up to 350 kW

Control System :

Microprocessor

Color :

white

Evaporator :

Shell & Tube type

Warranty :

1 year

Condenser Type :

Plate Heat Exchanger

Dimensions :

1200mm x 800mm x 1800mm

Refrigerant Type :

R410a

Compressor Type :

Scroll

Evaporator Type :

Shell and Tube

Number Of Compressors :

Condition :

Brandnew

Description

Constant temperature and humidity chillers (DX-H series) are mainly used in office spaces, laboratories and other environments that require constant temperature and humidity. The product has powerful functions and complete protection, which can effectively complete the constant temperature and humidity in the laboratory such as heating, cooling, humidification, and dehumidification.

DX-H series constant temperature and humidity chiller performance parameters Specifications:

Specification model			DX-14H	DX-21H	DX-27H	DX-43H	DX-51H	DX-65H	DX-78H	DX-105H	DX-118H
Unit characteristics	Cooling capacity	KW	13.6	20.6	26.2	42.6	51	64.8	78.5	104	117.8
	Heating capacity	KW	6	9	12	18	twenty four	27	36	48	64
	Air volume	CMH	2350	4000	5100	7800	10600	13000	15600	22140	24000
	Residual pressure outside the machine	Pa	250	250	250	260	300	350	380	400	400
	Outside noise	dB(A)	≦62	≦62	≦62	≦65	≦68	≦70	≦70	≦75	≦80
	power supply		3N/380V 50Hz
	input power	KW	9.7	15	20	31.2	42	49.5	63.5	85	116
refrigerating system	compressor	type	Fully enclosed reciprocating/scrolling
		Number of units * power (HP)	5*1	7.5*1	10*1	7.5*2	10*2	10+15	15*2	10+15*2	15*3
	Evaporator	type	Copper pipe sleeve aluminum sheet
	Condenser	Water volume (m3/h)	3.1	4.6	6.2	10	13	15.5	19.3	25	28.5
	Condenser	Water inlet and outlet pipe (in)	1"	1-1/2″	1-1/2″	2"	2"	2-1/2″	2-1/2″	3″	3″
Centrifugal fan		Power (kw)	0.45	0.45	0.55	0.55*2	3	4	5.5	7.5	11
air filter			Nylon mesh
Electrode humidifier		Power (kw)	3.6	6.1	6.1	9.8	11.4	11.4	17.5	17.5	17.5
		Humidification capacity (kg/h)	4	8	8	13	15	15	twenty three	twenty three	twenty three
		Water inlet and outlet pipe (in)	1/2″	1/2″	1/2″	1/2″	1/2″	1/2″	1/2″	1/2″	1/2″
Electric heater		Power (kw)	6	9	12	18	twenty four	27	36	48	64
Dimensions (mm)		width	800	960	1200	1700	1700	1880	1880	2050	2050
		deep	550	520	600	600	750	1090	1090	1150	1150
		high	1750	1730	1730	1820	1830	1920	1920	1920	1920
net weight		kg	380	450	520	580	780	810	1280	1590	1600
