Specifications
Brand Name :
HBYIQI
Model Number :
HB-B02-A
Certification :
CE, ISO9001
Place of Origin :
China
MOQ :
1SET
Price :
Negotiation
Payment Terms :
T/T
Delivery Time :
15Days
Packaging Details :
International Standard Package
Main Machinc Dimensions :
W450×D400×H990mm
Maximum Test Force :
10,20,50,100,200,500N
Accuracy Level :
≤±0.5 grade
Stretch Stroke :
600mm
Safety Features :
Overload protection, emergency stop
Description

Universal Material Testing Machine Small Tensile Testing Machine Electronic Tensile Test Equipment

Brand: HBYIQI

Appliance: The equipment is suitable for testing the tensile, compression, bending, shear, tear, fracture, peel, compression, puncture and other mechanical properties of materials or processes.

Techinical Parameter:

Model HB-B02-A Remark
Control Mode PLC Independently-developed by HBYIQI
Maximum Test Force (N) 10,20,50,100,200,500N Choose one of them
Accuracy Level ≤±0.5 grade
Test force Measurement range 2%-100%
Relative Error of Test Force Indication Value ＜±1%
Resolution of Test Force 1/300000 of the max test force
Deformation measurement range 2%-100%
Relative Error of Deformation Indication Value ＜±1%
Deformation Resolution 1/300000 of the maximum deformation
Relative Error of Displacement Indication ＜±1%
Displacement Resolution(mm) 0.001
Velocity Range 0.01mm/min ~ 500mm/min Continuously Viable
Stretch Stroke(mm) 600mm(effective stroke before fixture installation)
Compression Stroke(mm) 600mm(effective stroke before fixture installation)
Available Fixture Stretch, compress, bend, shear, peel, tear, etc
Main Machinc Dimensions(mm) W450×D400×H990
Motor Power(kW) 0.2
Total Weight(kg) Approx.35
Power Supply AC220V,50HZ,1A Customized according to the country
Standard Configuration
Mainframe 1Set
Test Fixture 1Set
Calibrated weight 1Set
Powercord 1Set(220V 10A)
Manual 1Set
Product Certification 1Set

Performance Feature:

  • Touch screen display, real-time force value, peak value, speed, test times, curve intuitive display;
  • User-friendly design, easy to operate;
  • Instrument storage: 40 test results, one or more groups could be deleted;
  • Printout: Comes with micro thermal printer output;
  • Power unit: N, KN, kgf, gf, lbf optional;
  • Displacement unit: mm, cm, in Optional;
  • Strength unit: Pa, kPa, Mpa, kgf/cm2, lbf/in2 Optional;
  • Protection measures: over stroke protection, over force value protection, over time protection, outer limit protection and other protection methods.
  • High sensitivity, instantaneous determination of attenuation automatic shutdown;

Advantages for Machine Software:

  • Chinese or English visual display, suitable for domestic and foreign user;
  • Test, rise, fall, return speed arbitrary input setting, accurate control;
  • Automatic quick return after the test is completed, avoiding long waiting time and speeding up the test efficiency;
  • Test results: The test is automatically recorded and saved without manual storage;
  • Multiple test items, multiple units can be selected to meet a variety of test standards;
  • High accuracy: Using high-precision S-type sensor, the maximum accuracy can reach 0.25%;
  • Built-in special calibration mode, which is convenient for third-party measurement calibration institutions to calibrate the instrument.

Detail Show:

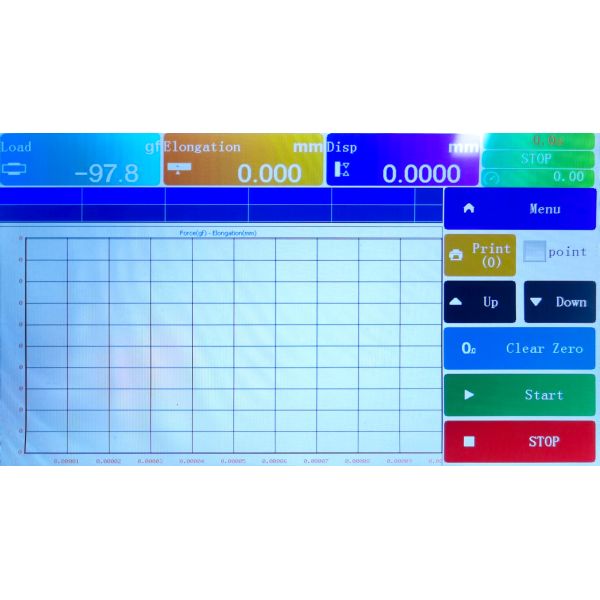

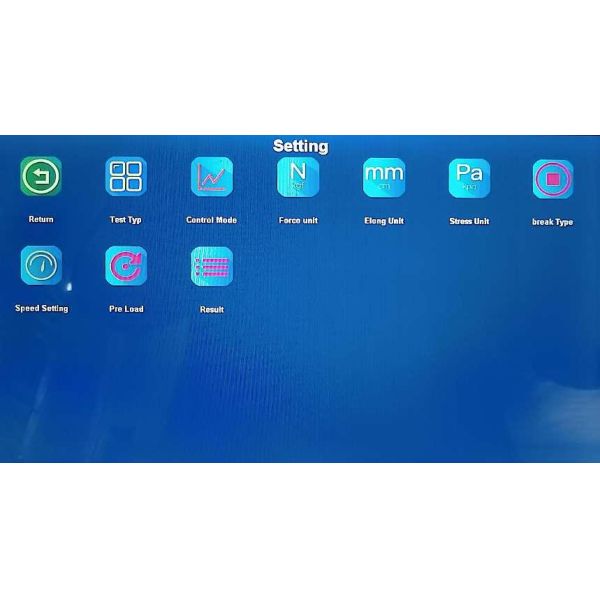

Test System Screen

Custom Size Small Tensile Testing Machine , Electronic Tensile Test Equipment

Custom Size Small Tensile Testing Machine , Electronic Tensile Test Equipment

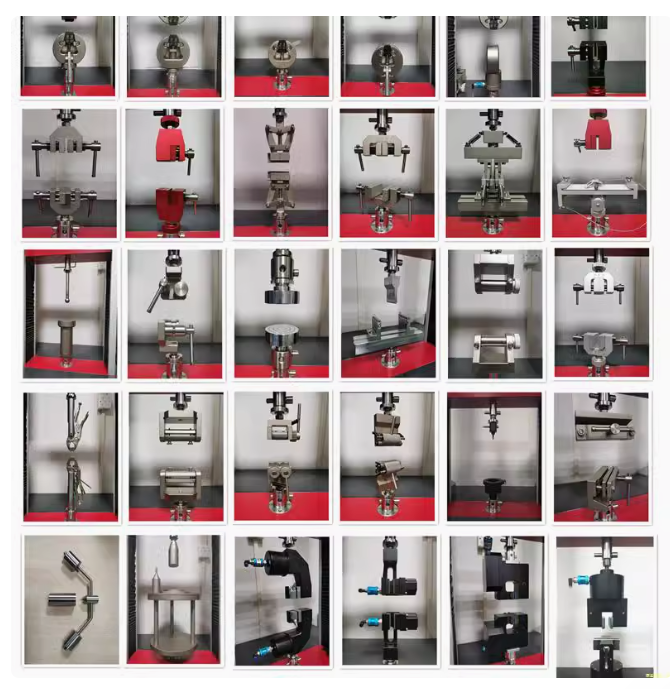

Fixture Types

Custom Size Small Tensile Testing Machine , Electronic Tensile Test Equipment
