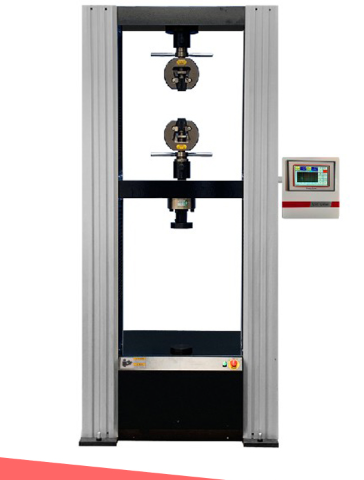

Computerised Universal Material Testing Machine Dual Column 800mm 1kW

Specifications

Brand Name :

HBYIQI

Model Number :

HB-B04-M

Certification :

ISO9001

Place of Origin :

China

MOQ :

1SET

Price :

Negotiation

Payment Terms :

T/T

Delivery Time :

15Days

Packaging Details :

International Standard Package

Maximum Test Force :

2KN, 5KN, 10KN, 20KN, 50KN (optional)

Test Force Measurement Range :

2%-100%

Accuracy Level :

≤±0.5

Control Method :

Touch screen control

Effective Tensile Stroke :

800mm

Available Fixtures :

Tension, Compression, Bending, Shearing, Peeling, Tearing, etc.

Machine Size :

W700×D530×H1850mm

Total Weight :

About 240kg

Description

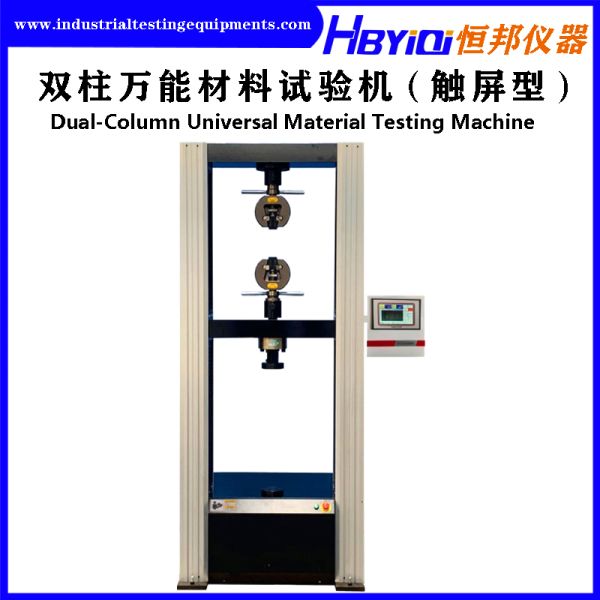

Universal Material Testing Machine Double-Column UTM Medium Size Touch Screen Control 800mm

Brand: HBYIQI

Appliance: This equipment is suitable for testing various mechanical properties of non-metallic materials or products, such as tension, compression, bending, shearing, tearing, breaking, peeling, pressure resistance, and puncture.

Techinical Parameter:

Model	HB-B04-M
Control mode	Touch screen control
Maximum test force (N)	2KN, 5KN, 10KN, 20KN, 50KN (optional)
Accuracy class	≤ ± 0.5 class
Measuring range of test force	2%-100%
Relative error of test force indication	＜±1%
Test force resolution	1/300000 of maximum test force
Deformation measurement range	2%-100%
Relative error of deformation indication	＜±1%
Relative error of displacement indication	＜±1%
Displacement resolution (mm)	0.001
Speed range	0.1mm/min ~ 500mm/min
Effective stretching stroke (mm)	About 800mm
Effective stroke of compression (mm)	About 800mm
Fixture available	Tension, compression, bending, shearing, peeling, tearing, etc.
Overall dimension of main machine (mm)	W700×D530×H1850mm(100KN)
Motor power (kW)	1kW
Total weight (kg)	About 240
Power supply	AC220V,50HZ,1A
Standard configuration
Instrument host	1 set
PC (Chinese and English test software)	1 copy
Test fixture	1 pair
Power cord	1 (220V 10 A)
Instructions for use	1 book
Certificate of conformity	1 copy
Computer	Optional

Performance Features

Computer display with real-time visualization of force value, peak value, speed, test times, and curves.
Humanized design for easy operation.
Selectable force units: N, kN, kgf, gf, lbf.
Selectable displacement units: mm, cm, in.
Selectable strength units: Pa, kPa, MPa, kgf/cm², lbf/in².
Protection measures: Multiple protection methods including over-force protection and external limit protection.
High sensitivity with instant judgment of attenuation and automatic shutdown.

Product Software Advantages

Intuitive display in full Chinese or English, suitable for both domestic and international use!
Built-in library of multiple physical and mechanical test results.
Arbitrary input and setting of test, upward, downward, and return speeds for precise control.
Automatic and rapid return after test completion to avoid long waiting time and improve test efficiency.
Test results: Automatically recorded, calculated, and saved after test completion, no manual storage required.
Multiple test items and selectable units to meet various test standards.
High accuracy: Adopts high-precision S-type sensor with a maximum accuracy of 0.25%.
Built-in dedicated calibration mode for easy calibration and certification by third-party metrology institutions.

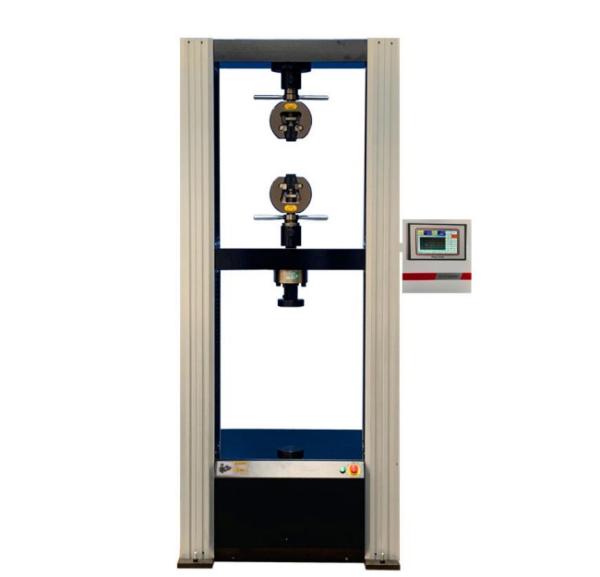

Equipment Details Display
