Humanized Design Universal Tensile Testing Machine Computer Control 300mm 500mm

Specifications

Brand Name :

HBYIQI

Model Number :

HB-B01-S1; HB-B01-S1-H

Certification :

ISO9001

Place of Origin :

China

MOQ :

1SET

Price :

Negotiation

Payment Terms :

T/T

Delivery Time :

15Days

Packaging Details :

International Standard Package

Maximum Test Force :

10, 20, 50, 100, 200, 500N, 1000N

Test Force Measurement Range :

2%-100%

Accuracy Level :

≤±0.5

Effective Tensile Stroke :

300mm;500mm

Control Method :

PC Terminal

Available Fixtures :

Tension, Compression, Bending, Shearing, Peeling, Tearing, etc.

Description

Universal Material Testing Machine Small Tensile Testing Machine Computer Control 300mm;500mm;

Brand: HBYIQI

Appliance: This equipment is suitable for testing various mechanical properties of materials or processes, such as tensile strength, tensile force, compression, bending, shearing, tearing, breaking, peeling, compressive strength, puncture, etc.

Techinical Parameter:

Model	HB-B01-S1	HB-B01-S1-H
Control Method	PC Terminal (Computer-Controlled)
Maximum Test Force (N)	10, 20, 50, 100, 200, 500N, 1000N (Choose One)
Accuracy Class	≤±0.5 Class
Test Force Measurement Range	2%-100%
Relative Error of Test Force Indication	＜±1%
Test Force Resolution	1/300000 of Maximum Test Force
Deformation Measurement Range	2%-100%
Relative Error of Deformation Indication	＜±1%
Relative Error of Displacement Indication	＜±1%
Displacement Resolution (mm)	0.001
Speed Range	0.1mm/min ~ 500mm/min
Effective Tensile Stroke (mm)	Approximately 300mm (After Fixture Installation)	Approximately 500mm (After Fixture Installation)
Effective Compression Stroke (mm)	Approximately 300mm (After Fixture Installation)	Approximately 500mm (After Fixture Installation)
Available Fixtures	Tension, Compression, Bending, Shearing, Peeling, Tearing, etc.
Main Machine Dimension (mm)	W300×D450×H810mm	W300×D450×H1100mm
Motor Power (kW)	0.2
Total Weight (kg)	Approximately 21	Approximately 35
Power Supply	AC220V, 50HZ, 1A
Standard Configuration
Instrument Main Unit	1 Unit
PC Terminal (Chinese & English Testing Software)	1 Set
Test Fixture	1 Set
Calibration Weight	1 Piece
Power Cable	1 Piece (220V 10A)
User Manual	1 Book
Certificate of Conformity	1 Copy
Computer	Optional

Performance Features

Computer display with real-time visualization of force value, peak value, speed, test times, and curves.
Humanized design for easy operation.
Selectable force units: N, kN, kgf, gf, lbf.
Selectable displacement units: mm, cm, in.
Selectable strength units: Pa, kPa, MPa, kgf/cm², lbf/in².
Protection measures: Multiple protection methods including over-force protection and external limit protection.
High sensitivity with instant judgment of attenuation and automatic shutdown.

Product Software Advantages

Intuitive display in full Chinese or English, suitable for both domestic and international use!
Built-in library of multiple physical and mechanical test results.
Arbitrary input and setting of test, upward, downward, and return speeds for precise control.
Automatic and rapid return after test completion to avoid long waiting time and improve test efficiency.
Test results: Automatically recorded, calculated, and saved after test completion, no manual storage required.
Multiple test items and selectable units to meet various test standards.
High accuracy: Adopts high-precision S-type sensor with a maximum accuracy of 0.25%.
Built-in dedicated calibration mode for easy calibration and certification by third-party metrology institutions.

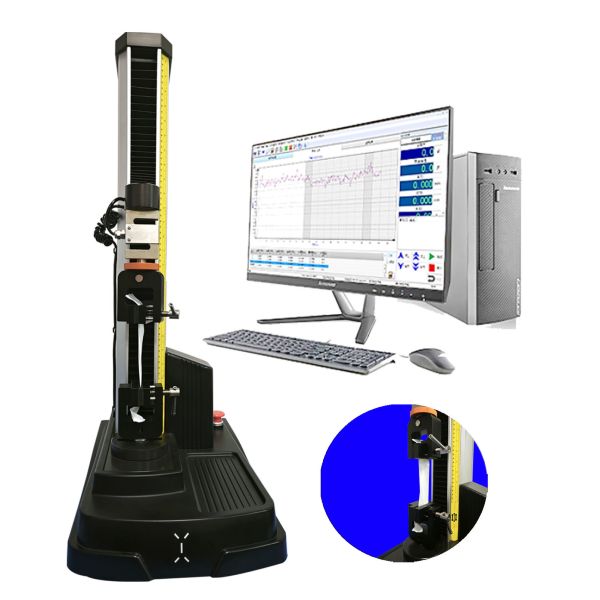

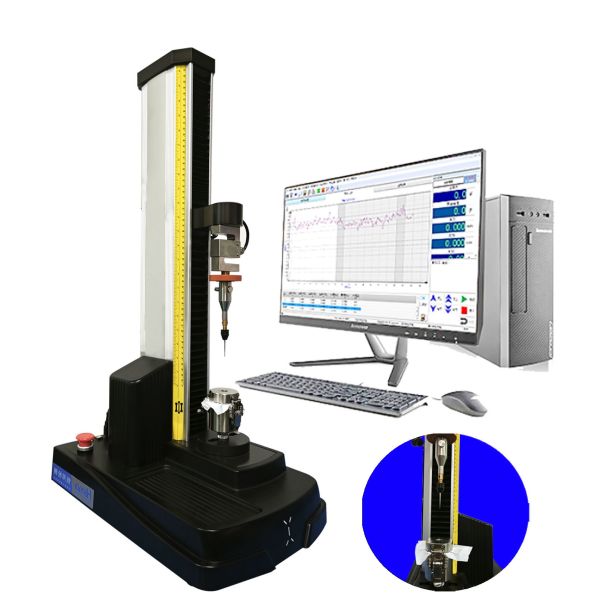

Equipment Details Display
