Specifications

Brand Name :

HBYIQI

Model Number :

HB-F01-S；HB-F01-S-H

Certification :

ISO9001

Place of Origin :

China

MOQ :

1SET

Price :

Negotiation

Payment Terms :

T/T

Delivery Time :

15Days

Packaging Details :

International Standard Package

Maximum Test Force :

10, 20, 50, 100, 200, 500N

Test Force Measurement Range :

2%-100%

Accuracy Level :

≤±0.5

Effective Tensile Stroke :

400mm; 600mm

Control Method :

PC Terminal

Test force resolution :

1/300000 of maximum test force

Description

Universal Material Testing Machine Adhesive tape peeling force tester computer type

Brand: HBYIQI

Purpose of equipment:

The equipment is suitable for tensile, tension, compression, bending, shearing, tearing, fracture, stripping, compression, puncture and other mechanical properties of non-metallic materials or process tests.

Techinical Parameter:

Model	HB-F01-S	HB-F01-S-H
Control mode	PC end (computer control)
Maximum test force (N)	10, 20, 50, 100, 200, 500 N (optional)
Accuracy class	≤ ± 0.5 class
Measuring range of test force	2%-100%
Relative error of test force indication	＜±1%
Test force resolution	1/300000 of maximum test force
Deformation measurement range	2%-100%
Relative error of deformation indication	＜±1%
Relative error of displacement indication	＜±1%
Displacement resolution (mm)	0.001
Speed range	0.1mm/min ~ 500mm/min
Effective stretching stroke (mm)	After installing the jig (approx. 400 mm)	After installing the jig (about 600mm)
Effective stroke of compression (mm)	After installing the jig (approx. 400 mm)	After installing the jig (about 600mm)
Fixture available	Tension, compression, bending, shearing, peeling, tearing, etc.
Overall dimension of main machine (mm)	W400×D400×H1180mm	W400×D400×H1380mm
Motor power (kW)	0.2
Total weight (kg)	About 21	About 35
Power supply	AC220V,50HZ,1A
Standard configuration
Instrument host	1 set
PC (Chinese and English test software)	1 copy
Test fixture	1 pair
Calibration weight	1 piece
Power cord	1 (220V 10 A)
Instructions for use	1 book
Certificate of conformity	1 copy
Computer	Optional
2KG rolling wheel (for sample preparation)	1 piece
Stainless steel sheet (for sample preparation)	10 piece
25mm sample plate	1 piece
Calibration weight	1 piece

Performance characteristics:

Computer display, real-time force value, peak value, speed, test times, curve intuitive display.
The design is humanized and the operation is simple and easy.
Force unit: N, kN, KGF, GF, LBF optional.
Displacement unit: mm, cm, in optional
Strength unit: Pa, kPa, Mpa, KGF/cm2, LBF/in2 optional.
Protection measures: overforce value protection, external limit protection and other protection methods.
High sensitivity, instantaneous decision attenuation, automatic shutdown

Product Software Benefits:

Full Chinese or English visual display, suitable for domestic and foreign use!
Built-in multiple physical and mechanical result libraries;
Test, ascend, descend and return speed can be input and set at will for precise control.
Automatic and quick return after the test is completed, avoiding long waiting and accelerating the test efficiency.
Test result: The test is automatically recorded, calculated and saved without manual storage.
Multiple test items and units are available to meet multiple test standards.
High precision: adopt high precision S-type sensor, the maximum precision can reach 0.25%.
Built-in special calibration mode is convenient for the third party measurement and calibration organization to calibrate and certify the instrument.

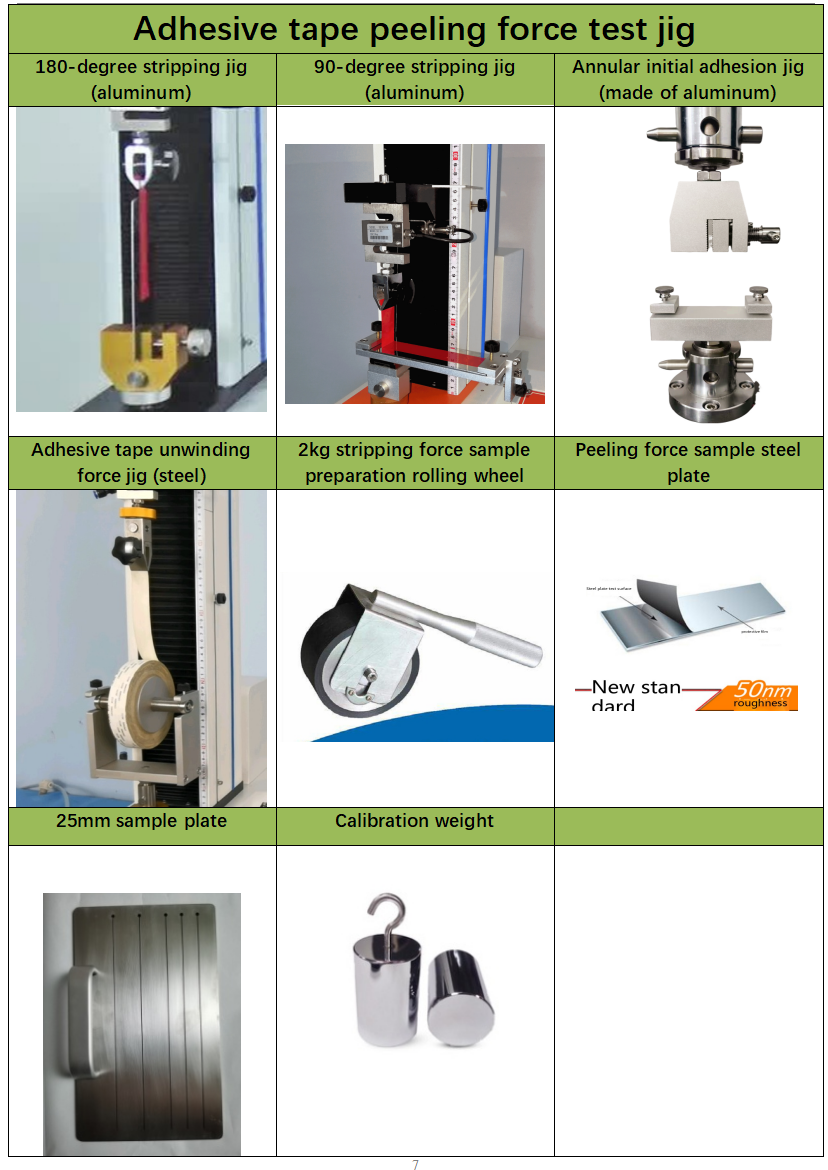

Equipment Details Display
