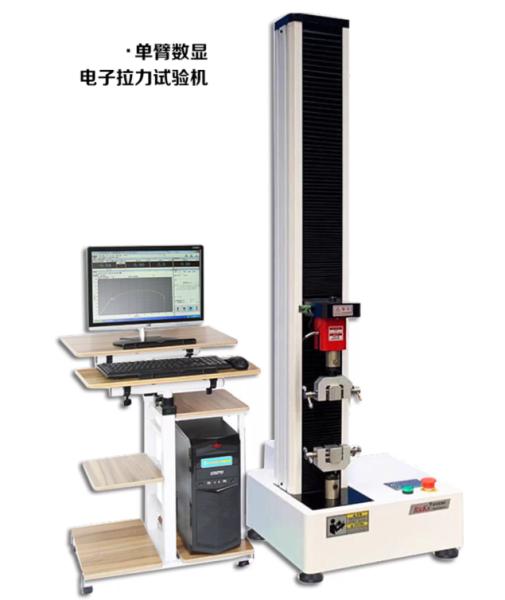

Tensile 600mm Universal Material Testing Machine Single Column PC Control

Specifications

Brand Name :

HBYIQI

Model Number :

HB-B01-M

Certification :

ISO9001

Place of Origin :

China

MOQ :

1SET

Price :

Negotiation

Payment Terms :

T/T

Delivery Time :

15Days

Packaging Details :

International Standard Package

Maximum Test Force :

10,20,50,100,200,500,1000,2000,5000N

Test Force Measurement Range :

2%-100%

Accuracy Level :

≤±0.5

Control Method :

Computer control

Effective Tensile Stroke :

600mm

Weight :

About 70kg

Machine Size :

W430×D430×H1350mm

Power :

0.2KW

Test force resolution :

1/300000 of maximum test force

Description

Universal Material Testing Machine Single-Column Tensile 600mm PC Control Medium Size W430 D430 H1350mm

Brand: HBYIQI

Appliance:

The equipment is suitable for tensile, tension, compression, bending, shearing, tearing, fracture, stripping, compression, puncture and other mechanical properties of materials or processes.

Techinical Parameter:

Model	HB-B01-M
Control mode	PC end (computer control)
Maximum test force (N)	10, 20, 50, 100, 200, 500 N, 1000 N, 2000 N, 5000 N (optional)
Accuracy class	≤ ± 0.5 class
Measuring range of test force	2%-100%
Relative error of test force indication	＜±1%
Test force resolution	1/300000 of maximum test force
Deformation measurement range	2%-100%
Relative error of deformation indication	＜±1%
Relative error of displacement indication	＜±1%
Displacement resolution (mm)	0.001
Speed range	0.01mm/min ~ 500mm/min
Effective stretching stroke (mm)	About 600mm after the fixture is installed (larger stroke can be customized)
Effective stroke of compression (mm)	About 600mm after the fixture is installed (larger stroke can be customized)
Fixture available	Tension, compression, bending, shearing, peeling, tearing, etc.
Overall dimension of main machine (mm)	W430×D430×H1350mm
Motor power (kW)	0.2
Total weight (kg)	About 70 kg
Power supply	AC220V,50HZ,1A
Standard configuration
Instrument host	1 set
PC (Chinese and English test software)	1 copy
Test fixture	1 pair
Calibration weight	1
Power cord	1 (220V 10 A)
Instructions for use	1 book
Certificate of conformity	1 copy
Computer	Optional

Performance characteristics:

Computer display, real-time force value, peak value, speed, test times, curve intuitive display.
The design is humanized and the operation is simple and easy.
Force unit: N, kN, KGF, GF, LBF optional.
Displacement unit: mm, cm, in optional
Strength unit: Pa, kPa, Mpa, KGF/cm2, LBF/in2 optional.
Protection measures: overforce value protection, external limit protection and other protection methods.
High sensitivity, instantaneous decision attenuation, automatic shutdown

Product Software Benefits:

Full Chinese or English visual display, suitable for domestic and foreign use!
Built-in multiple physical and mechanical result libraries;
Test, ascend, descend and return speed can be input and set at will for precise control.
Automatic and quick return after the test is completed, avoiding long waiting and accelerating the test efficiency.
Test result: The test is automatically recorded, calculated and saved without manual storage.
Multiple test items and units are available to meet multiple test standards.
High precision: adopt high precision S-type sensor, the maximum precision can reach 0.25%.
Built-in special calibration mode is convenient for the third party measurement and calibration organization to calibrate and certify the instrument.

Equipment Details Display
