Universal Material Testing Machine Single-Column UTM 10N-5KN PLC 800mm

Brand: HBYIQI

Appliance:

• The equipment is suitable for tensile, tension, compression, bending, shearing, tearing, fracture, stripping, compression, puncture and other mechanical properties of materials or processes.

Techinical Parameter:

Performance Features

• Touch screen display, real-time force value, peak value, speed, test times, curve intuitive display.

• The design is humanized and the operation is simple and easy.

• Instrument storage: 40 test results, any one or more groups can be deleted.

• Printout: with micro thermal printer output.

• Force unit: N, kN, KGF, GF, LBF optional.

• Displacement unit: mm, cm, in optional

• Strength unit: Pa, kPa, Mpa, KGF/cm2, LBF/in2 optional.

• Protection measures: overforce value protection, limit protection and other protection methods.

• High sensitivity, instantaneous decision attenuation, automatic shutdown

Product Software Advantages

• Full Chinese or English visual display, suitable for domestic and foreign use!

• Test, ascend, descend and return speed can be input and set at will for precise control.

• Automatic and quick return after the test is completed, avoiding long waiting and accelerating the test efficiency.

• Test result: the test is automatically recorded and saved without manual storage.

• Multiple test items and units are available to meet multiple test standards.

• High precision: adopt high precision S-type sensor, the maximum precision can reach 0.25%.

• Built-in special calibration mode is convenient for the third party measurement and calibration organization to calibrate and certify the instrument.

Equipment Details Display

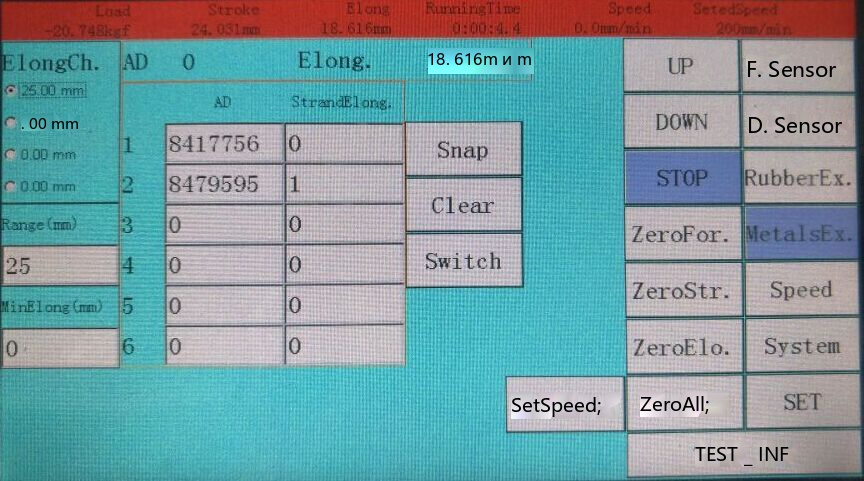

Main interface of control system (comprehensive):

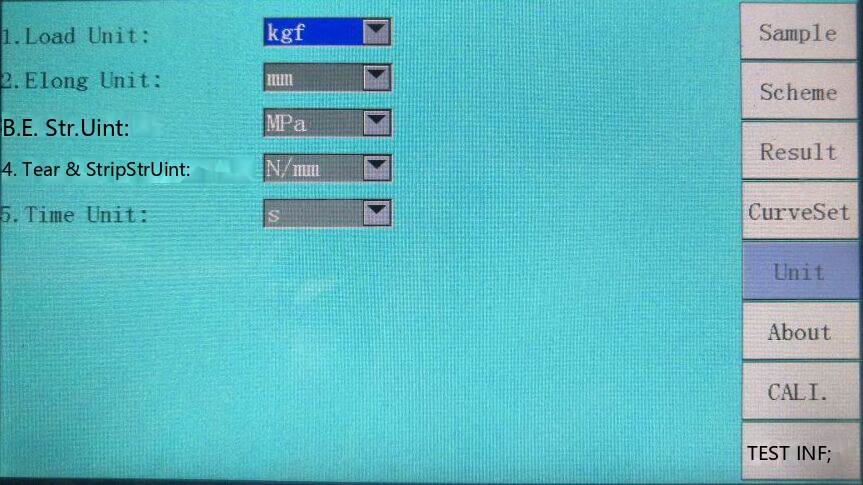

Test unit (multiple options):

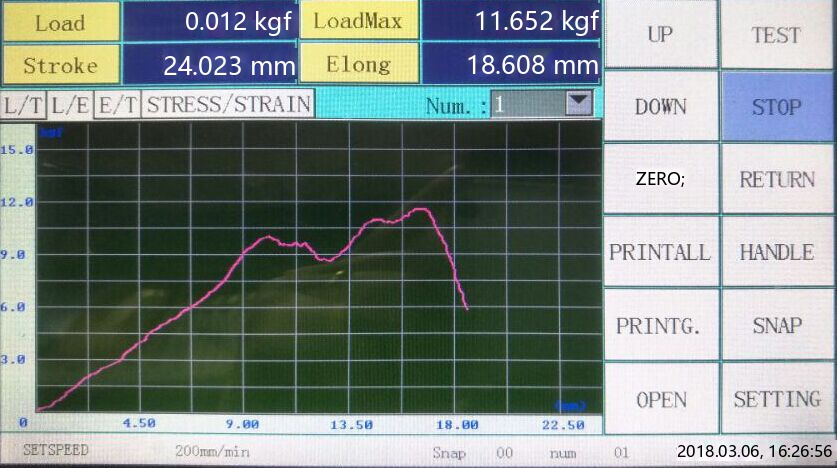

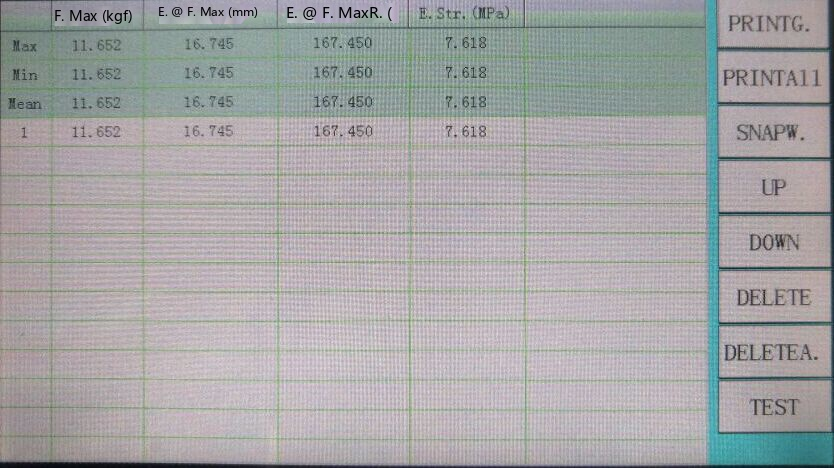

Test result (calculated automatically):

Internal calibration interface (simple and fast):

Suitable for Various Material Mechanical Tests (Hundreds of Test Fixtures Available for Selection)
