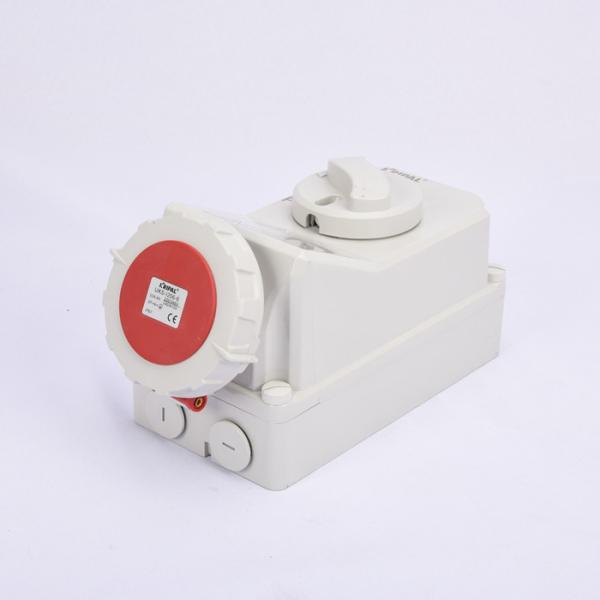

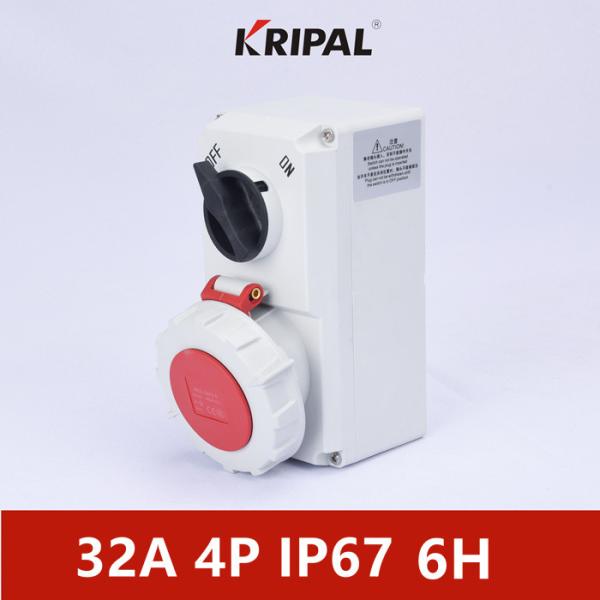

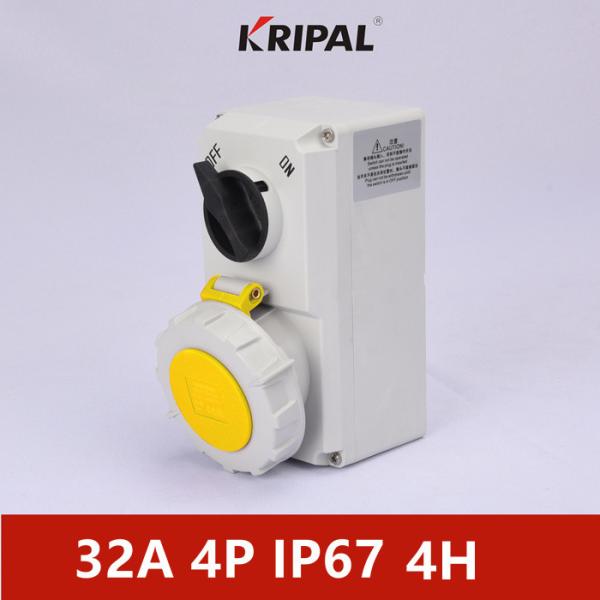

Purple Horn Three Phase 32A IP67 Interlocked Switch Socket IEC standard
Purple Horn Three Phase 32A IP67 Interlocked Switch Socket IEC standard
Purple Horn Three Phase 32A IP67 Interlocked Switch Socket IEC standard
Purple Horn Three Phase 32A IP67 Interlocked Switch Socket IEC standard
Purple Horn Three Phase 32A IP67 Interlocked Switch Socket IEC standard
Purple Horn Three Phase 32A IP67 Interlocked Switch Socket IEC standard
Purple Horn Three Phase 32A IP67 Interlocked Switch Socket IEC standard
Purple Horn Three Phase 32A IP67 Interlocked Switch Socket IEC standard
Specifications
Brand Name :
Purple Horn
Model Number :
UKS-J246-4
Certification :
CE
Place of Origin :
CHINA
MOQ :
1000 pcs
Price :
negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
50000 pcs per month
Delivery Time :
20 days and depends on ordering quantity
Packaging Details :
Each unit packed in a individual box
Rated Current :
16A,32A
Pole :
3P,4P,5P
Rated Voltage :
110V,22V,380V,500V
Material :
Nylon,PA,PC,Copper
Standard :
IEC/EN 60309-2
Advantage :
Dustproof,Safety,Anti-aging
Description

Purple Horn 3 Phase 32A IP67 Interlocked Switch Socket IEC standard

Current Position Voltage Color Poles Model
16A 6h 220-250V Blue 2P+E UKS-J136-6
6h 380-415V Red 3P+E UKS-J146-6
6h 380-415V Red 3P+N+E UKS-J156-6
32A 6h 220-250V Blue 2P+E UKS-J236-6
6h 380-415V Red 3P+E UKS-J246-6
6h 380-415V Red 3P+N+E UKS-J256-6

Purple Horn Three Phase 32A IP67 Interlocked Switch Socket IEC standard

Specifications

Product Interlocked Switch Socket B
Rated current 16A,32A
No. of poles 2P+E,3P+E,3P+N+E
Voltage 110V;220V-250V;380V-415V;500V
Protection degree IP67
Power type Single Phase, Three Phase
Conductor cross-sectional area (mm2) 1.5-4(16A), 2.5-10(32A)
Material NYLON,PA, PC, copper
Color 110V(yellow) 220V,230V(blue)
380V,415V,440V(red) 500V(black)
Earth Pin Direction 4H,6H,7H,9H

Test

Purple Horn Three Phase 32A IP67 Interlocked Switch Socket IEC standard

Certification

Purple Horn Three Phase 32A IP67 Interlocked Switch Socket IEC standard

Packaging & Delivery

Lead Time Normally 20 days after received your fund, but mostly depends on your quantity
Leading Port Ningbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly.
Trade Term EXW, FOB, CIF as customer need
Payment Term T/T 30% as deposit,and 70% before delivery.
Packaging Neutral carton, or according to customer requirements
Shipping By Air, by sea, by express

Our Service

1.Reply inquiry in 24 hours.

2.Answer your question detailed.


3.Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

4.Solved the problem with you during using our products.


5. Samples will be offered to you for our future cooperation.


6.Quality assurance both for our products and service for after-sales.

Our Company

Purple Horn Electric Co., Ltd., established in 1992, is a state-level high-tech enterprise specializing in R & D, production and sales of low-voltage electrical, waterproof electrical and new energy products. It is located in , , the famous "electrical capital".

Our company has passed the ISO 9001:2000 international quality system certification, and our series products have passed the certificate of UL,VDE,TUV, Kema,Semko,SAA,CE and CB test report,also ROHS international certification, The company cooperates with scientific research institutions at home and abroad, introduces foreign advanced manufacturing and testing equipment, and has developed more than 100 kinds of products with independent intellectual property rights. A number of products have won national invention and utility model patents, becoming a provincial technology research and development center and a patent demonstration enterprise in Province.

The company adheres to the enterprise policy of "scientific management, independent innovation, coordination and cooperation, brand first", continuously makes scientific innovation, makes every effort to build "Purple Horn" brand, and strives to provide users with excellent products and quality services, so as to win customer satisfaction.

Hope to cooperate sincerely with friends from all walks of life at home and abroad, common progress, mutual development, and create a win-win future!
