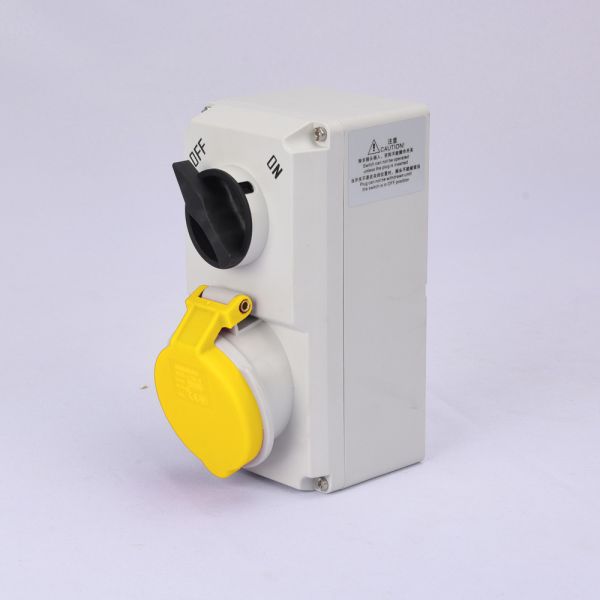

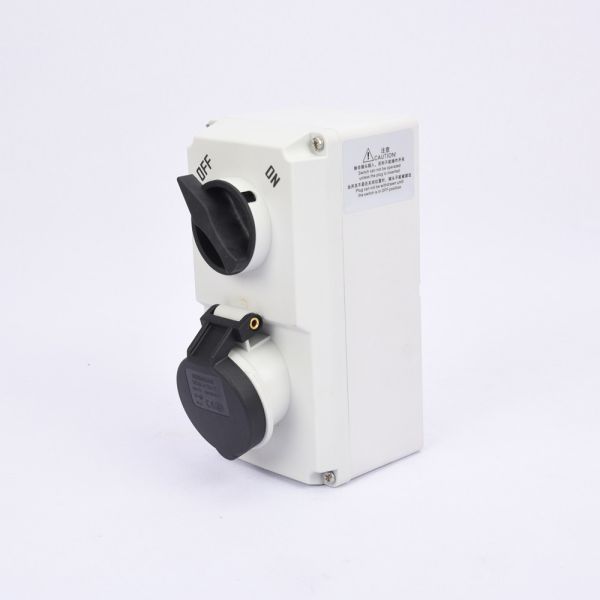

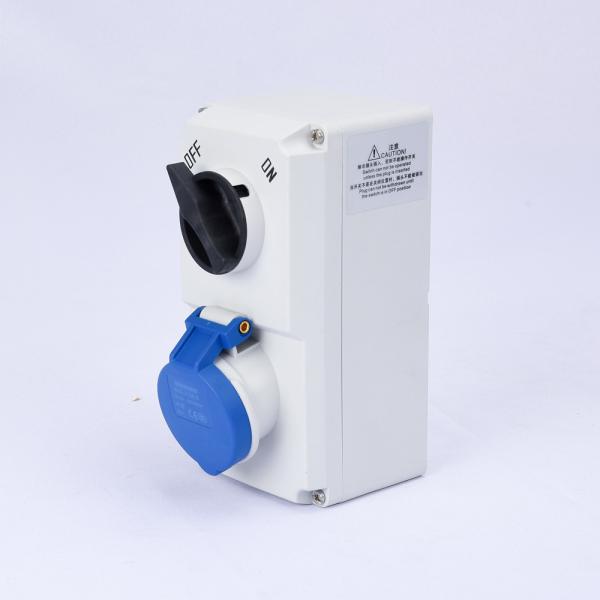

3P 16A IP44 Three Phase Interlocked Switch Socket IEC Standard
3P 16A IP44 Three Phase Interlocked Switch Socket IEC Standard
3P 16A IP44 Three Phase Interlocked Switch Socket IEC Standard
3P 16A IP44 Three Phase Interlocked Switch Socket IEC Standard
3P 16A IP44 Three Phase Interlocked Switch Socket IEC Standard
3P 16A IP44 Three Phase Interlocked Switch Socket IEC Standard
3P 16A IP44 Three Phase Interlocked Switch Socket IEC Standard
3P 16A IP44 Three Phase Interlocked Switch Socket IEC Standard
Specifications
Brand Name :
Purple Horn
Model Number :
UKS J series
Certification :
CE
Place of Origin :
China
MOQ :
1000 pcs
Price :
negotiable
Payment Terms :
T/T, L/C, D/P
Supply Ability :
50000 pcs per month
Delivery Time :
20 days and depends on ordering quantity
Packaging Details :
Each unit packed in a individual box
Rated current :
16A,32A
Material :
Nylon,PA,PC,Copper
Protection degree :
IP44
Pole :
3P,4P,5P
Standard :
IEC Standard
Feature :
Safety,Waterproof,Durable
Description

3P 16A IP44 Three Phase Interlocked Switch Socket IEC Standard

Current Position Voltage Color Poles Model
16A 4h 110-130V Yellow 2P+E UKS-J134-4
6h 220-250V Blue 2P+E UKS-J134-6
9h 220-250V Blue 3P+E UKS-J144-9
6h 380-415V Red 3P+E UKS-J144-6
6h 380-415V Red 3P+N+E UKS-J154-6
7h 500V Black 3P+N+E UKS-J154-7
32A 4h 110-130V Yellow 2P+E UKS-J234-4
6h 220-250V Blue 2P+E UKS-J234-6
9h 220-250V Blue 3P+E UKS-J244-9
6h 380-415V Red 3P+E UKS-J244-6
6h 380-415V Red 3P+N+E UKS-J254-6
7h 500V Black 3P+N+E UKS-J254-7

Product Interlocked Switch Socket
Rated current 16A,32A,
No. of poles 2P+E,3P+E,3P+N+E
Voltage 110V-130V;220V-250V; 380V- 415V;500V
Protection degree IP44
Power type Single Phase, Three Phase
Conductor cross-sectional area (mm2) 1.5-4(16A), 2.5-10(32A)
Material NYLON,PA, PC, Copper
Color 110V(yellow) 220V,230V(blue)
380V,415V,440V(red) 500V(black)

3P 16A IP44 Three Phase Interlocked Switch Socket IEC Standard

Product Feature

1.Safety, Environmental,Economic, Multi-function, Safe, Durable, Timesaving

2.Standard plug, Standard socket

3.Provide different series products for different environment

4.Resistance to severe weather and ageing

5.Good space stability and accuracy

6.Effectively prevent power outages and leakage

Product Applications

Applied to Power distribution equipment.

Applied to Port container terminal

Applied to Refrigerated container

Applied to Power systerm.

Applied to Construction site.

Applied to Large public space.

Applied to Transportation equipment

Certification

3P 16A IP44 Three Phase Interlocked Switch Socket IEC Standard

Service


1. Delivery time: 20 working days for bulk order and depend on ordering quantity

2. Strong production capacity and strict quality control system;

3. Your inquiry and problems related to our products or prices will be replied in 24 hours;

4. Well-trained and experienced staffs to answer all your inquires;

5. After-sale tracking service for all of our clients;

6. OEM & ODM are available; there is an our own mould tooling center in Purple Horn factory.

7. Delivery way: Courier as door to door service (like DHL, TNT), by sea, by air (airport to airport)

Our company

Purple Horn Electric Co., Ltd. was founded in 1992, and now has two production bases, in Wenzhou and Xianju in Taizhou. The company has more than 500 employees, including over 10 senior engineers, 30 professional technicists and 30 senior executives, covering an area of more than 15000 square meters. The company has passed ISO9001 quality system certification, and serves customers with high-quality service, innovative electrical solutions and competitive prices. Therefore, the products are exported to Europe, Australia, America, Africa, Oceania, Southeast Asia, Hong Kong, Macao and Taiwan, with good brand effect in the local area, and won the title of export famous brand enterprise. Our mission is to strive to realize the dream of professional electrical world brand, and strive to improve our company's share in the global market. Welcome to cooperate with Purple Horn to create a better tomorrow.
