Corridor Industrial Steel Grating Galvanized Machine Pressure Welding Plate
Corridor Industrial Steel Grating Galvanized Machine Pressure Welding Plate
Corridor Industrial Steel Grating Galvanized Machine Pressure Welding Plate
Corridor Industrial Steel Grating Galvanized Machine Pressure Welding Plate
Corridor Industrial Steel Grating Galvanized Machine Pressure Welding Plate
Corridor Industrial Steel Grating Galvanized Machine Pressure Welding Plate
Corridor Industrial Steel Grating Galvanized Machine Pressure Welding Plate
Corridor Industrial Steel Grating Galvanized Machine Pressure Welding Plate
Specifications
Brand Name :
Zhuote
Model Number :
303/30/100
Certification :
SGS&ISO 9001, SGS, ISO9001
Place of Origin :
Hebei
MOQ :
55 piece
Price :
Can discuss
Payment Terms :
L/C, T/T
Supply Ability :
1000 Square meters/day
Delivery Time :
9-11 work days
Packaging Details :
Steel belt packaging
Grating size :
3'x20', 1000x1000mm, 3x30', drainage grating size is based on customer's requirement, 1000x6000mm and all
Material :
Steel, Q235, q235 carbon steel, low carbon steel, stainless steel galvanized stee
Application :
Floor, Walkway, Industrial Platform, bridge, Trench Drains
Type :
Plain Bar Grating, Serrated Bar Grating, Plain, serrated, Flat
Color :
Silver, black, Silver or as your requirement, yellow, ect or custom
Description
Corridor Industrial Steel Grating Galvanized Machine Pressure Welding Plate
Product Description

Park Garden platform corridor galvanized grating machine pressure welding grating plate

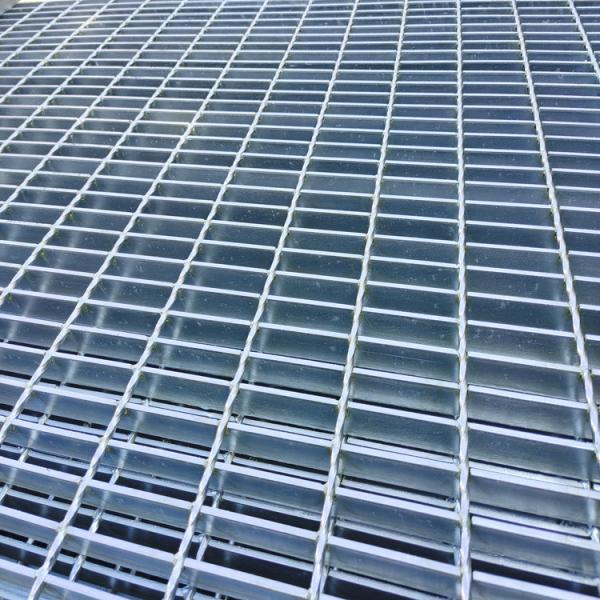

Press-Locked Steel Gratings

Press-Locked Grating features cross bars and bearing bars that are notched and pressed together through a high pressure manufacturing process. This creates a bi-directional flush surface that ensures a firm, rigid connection while maintaining aesthetic appeal for architectural applications.

Specifications
  • Model number: G303/30/30LFG
  • Bearing bar size: 30*3mm flat bar
  • Bearing bar pitch: 30mm
  • Cross bar size: 10x2mm flat bar
  • Cross bar pitch: 30mm
Surface Treatment Options
  • Hot dipped galvanized (most popular choice - 95% of customers select this option)
  • Untreated
  • Painting

Hot dip galvanizing provides excellent anti-acid and alkali corrosion resistance (PH6 to PH12.5 range), forming a stable protective zinc film with superior anti-corrosive properties.

Installation Specifications

Bearing bar types:

  • Plain type
  • Serrated type
  • I-Shape type

Recommended bearing bar pitches: 30mm & 40mm

Recommended cross bar pitches: 50mm & 100mm

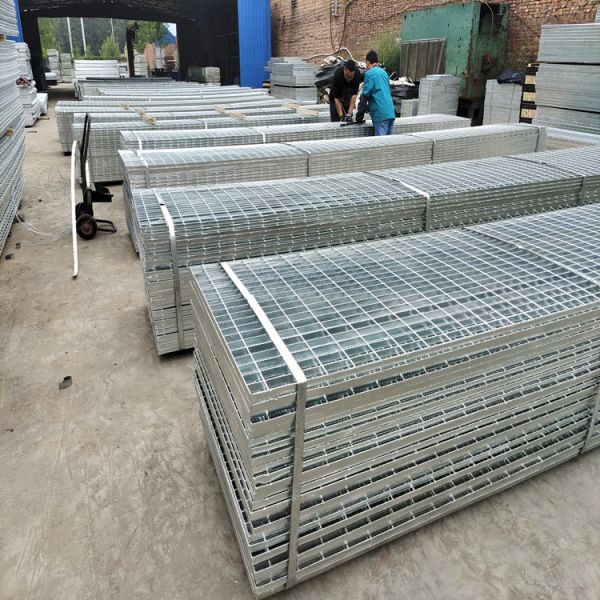

Packaging & Shipping

Standard packaging includes:

  • Piled stacking method
  • Two square wood pieces on top and bottom
  • Four or six M10 long bolts penetrating the gratings

Designed for easy loading/unloading with fork-lifts and cranes. Typical delivery time: 7-15 days.

Custom Engineering Services

Our specialized engineers can design economical steel grating specifications based on your load capacity requirements. We can also customize size and shape according to your support structure drawings for optimal installation and production efficiency.

Technical Specifications Table
No. Item Description
1 Bearing bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10,100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1'x3/16', 1 1/4'x3/16', 1 1/2'x3/16', 1'x1/4', 1 1/4'x1/4', 1 1/2'x1/4', 1'x1/8', 1 1/4'x1/8', 1 1/2'x1/8' etc.
2 Bearing bar pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3 Cross bar pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2' & 4' etc
4 Material Grate ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc
5 Surface treatment Black, self colour, hot dip galvanized, painted, spray coating
6 Grating Type Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7 Standard China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan :JIS
8 Application Rotation ways, channels, and platforms for pump rooms and engine rooms in various ships; Flooring in various bridges such as railway bridge sidewalks, over-bridges across the street; Platforms for oil extraction sites, car washing sites and air towers; Fencings for car-parks, buildings and roads; drainage trench covers and drainage pit covers for high strength.
Product Gallery
Corridor Industrial Steel Grating Galvanized Machine Pressure Welding Plate Corridor Industrial Steel Grating Galvanized Machine Pressure Welding Plate Corridor Industrial Steel Grating Galvanized Machine Pressure Welding Plate Corridor Industrial Steel Grating Galvanized Machine Pressure Welding Plate Corridor Industrial Steel Grating Galvanized Machine Pressure Welding Plate Corridor Industrial Steel Grating Galvanized Machine Pressure Welding Plate
Frequently Asked Questions
Q1. Who are we?
We are based in Hebei, China, established in 2008. Our primary markets include Domestic Market (65%), Eastern Europe (37%), North America (34%), South America (23%), Central America (7%), Southeast Asia (5%), and Mid East (3%).
Q2. How can we guarantee quality?
We always provide pre-production samples before mass production and conduct final inspections before shipment.
Q3. What can you buy from us?
Our product range includes Stainless wire mesh, Crimped wire mesh, Welded wire mesh, King Kong mesh, Stainless Expanded mesh, Window screening, and related products.
Q4. What are our advantages?
We operate 6 mature production lines with a 42-person R&D team. Our company features 24-hour online service, an experienced sales team, strict quality inspection processes, and a comprehensive after-sales service system.
Q5. What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Accepted Payment Currency: USD

Payment Methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow

Languages: English, Chinese
