Building Expanded Metal 2mm Industrial Catwalk Grating
Building Expanded Metal 2mm Industrial Catwalk Grating
Building Expanded Metal 2mm Industrial Catwalk Grating
Building Expanded Metal 2mm Industrial Catwalk Grating
Building Expanded Metal 2mm Industrial Catwalk Grating
Building Expanded Metal 2mm Industrial Catwalk Grating
Building Expanded Metal 2mm Industrial Catwalk Grating
Building Expanded Metal 2mm Industrial Catwalk Grating
Specifications
Brand Name :
ZHUOTE
Model Number :
G325
Certification :
ISO
Place of Origin :
CHINA
MOQ :
100sq.m
Price :
U.S 22.5-20.2 sq.m
Payment Terms :
L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability :
500sq.m per days
Delivery Time :
5-8work days
Packaging Details :
Wooden Pallet/Steel Pallet Or As The Customar require
Color :
Sliver
Appcation :
Platform walkway
Name :
Steel Grating
Material :
Steel,Q235,q235 carbon steel,stainless steel galvanized stee
Surface treatment :
Hot Dipped Galvanized,galvanized
Product name :
steel grating,Industrial Platform Metal Building Material Steel Grating weight,industrial floor steel Grating with long time,Construction Steel Floor Decking/Industrial GI Steel Grating
Type :
Plain Bar Grating,Serrated Bar Grating,Plain,serrated,Flat
Application :
Floor,Walkway,platform,stair tread,bridge
Thickness :
2mm-5mm,5mm,6mm,2.0mm-5.0mm,1.5mm~6mm
Standard :
ISO9001
Length :
100-3000mm,according to your size
Cross bar pitch :
50mm,50,As customers' requirement or 40
Bearing bar pitch :
30mm,on request.
Size :
Customized
Width :
1000mm,according to your size,50-500MM,600-1250mm
Surface :
Hot Galvanized,smooth,silver,galvanized or painted or black steel
Feature :
Heavy,Bright on surface,modern,high strength,light weight
Shape :
as required,various,as your request,fish-eye
Usage :
Public Drain Area,bathroom,garge,Concrete Construction Support,balcony ect.
Factory :
yes
Description

Building Materials Expanded Metal Galvanized Steel Grating Industrial Catwalk Grating

Material: Low carbon steel, stainless steel

* Surface treatment: Hot dipped galvanized, painting

* Common sizes as follow:

G303/30/100 G255/30/100 G305/30/100 G505/30/100 G203/30/50 G205/30/100

G255/30/50 G303/30/30 G808/30/100 G605/30/100 G355/30/100 G355/30/50 G325/30/100

Building Expanded Metal 2mm Industrial Catwalk Grating

Building Expanded Metal 2mm Industrial Catwalk Grating

Drainage steel grating cover Drainage ditch material

Steel,Low carbon steel,stainless steel&Q235,A36,SS304,SS316L,

S235JR
Surface treatment Black, hot dipped galvanized, paint
Bearing bar width*thickness 25x3,25x4,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm
Bearing bar pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60mm.

US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4",

1 1/4"x 1/4", 1 1/2"x 1/4" etc.
Bearing bar shape

Plain Style Steel Grating, Serrated Style Steel Grating and I

Bar Type Steel Grating.
Drainage steel grating cover drainage ditch standard

China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),

UK: BS4592-1987, Australia: AS1657-1985, Japan: JJS.
Cross bar shape round,twisted,bar shape
Cross bar pitch 38,50,76,100,101.6mm
Galvanizing standard US: ASTM (A123), CN: GB/T13912, UK: BS729
Market distribution

America45%,Europe26%,Middle east38%,Other place27%

Building Expanded Metal 2mm Industrial Catwalk Grating

Hot dip galvanized steel grating tolerance

The allowed deviation of length is +0/-5mm, while the allowed deviation of width is +/-5 mm. The non-perpendicularity of bearing bar is allowed no more than 10% of width of bearing bar.
Cross bar surface should not surpass bearing bar surface 1mm, beginning & end of cross bar should not surpass the end surfaces of two sides of grating 2mm.

Building Expanded Metal 2mm Industrial Catwalk Grating

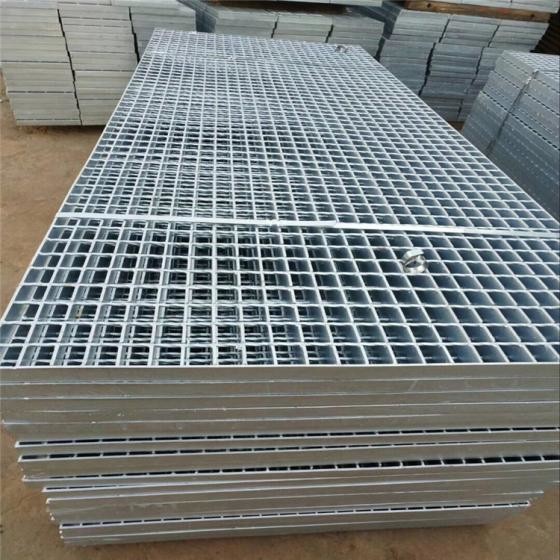

Packing

Building Expanded Metal 2mm Industrial Catwalk Grating

Building Expanded Metal 2mm Industrial Catwalk Grating

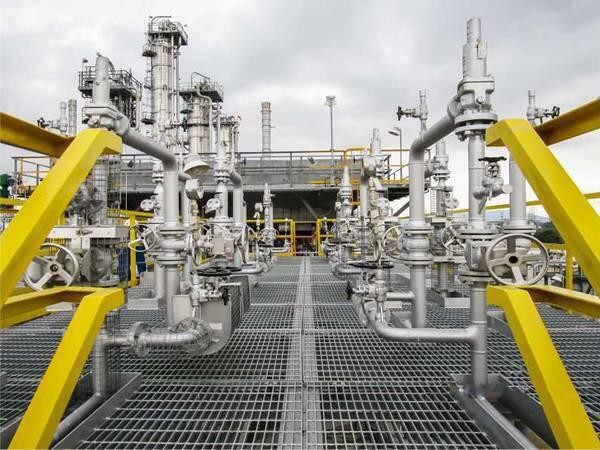

Appcation

Their main applications are drain covers, steelwork platform panels, and steel stair treads. Industrial platform flooring and walkway, traffic and steel structure etc.

Building Expanded Metal 2mm Industrial Catwalk Grating

FAQ

1.What's your advantage?
A: Honest business with competitive price and professional service on export process.

2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit.

3.How can I know how my order is being done?
A:We will inspect and test all items in order to avoid damage and missing parts before shipping. The detailed inspection pictures of the order will be sent to you for your confirmation before delivery.

4.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.

5.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.

6.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.

7.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
