HDMI Slip Ring combine Power Ethernet and USB Signals for High Definition head
HDMI Slip Ring combine Power Ethernet and USB Signals for High Definition head
HDMI Slip Ring combine Power Ethernet and USB Signals for High Definition head
HDMI Slip Ring combine Power Ethernet and USB Signals for High Definition head
HDMI Slip Ring combine Power Ethernet and USB Signals for High Definition head
HDMI Slip Ring combine Power Ethernet and USB Signals for High Definition head
Specifications
Brand Name :
CENO
Model Number :
ECN000-02P3-01EG-01U2-01HD
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union
Supply Ability :
500pcs per month
Delivery Time :
1 week
Packaging Details :
Carton/As request
Circuit & curren :
2 *12.5A; 1 * 1000M Ethernet; 1 * USB2.0; 1 * HDMI signal
Voltage :
0 ~ 24 VAC/VDC
Dielectric strength :
≥300VAC@50Hz
Isolation resistance :
≥100MΩ@300VDC
Contact resistance wave :
≤ 30mΩ
Working temperature :
-20°C~+60°C
Working humidity :
60 %RH
IP protection grade :
IP52
Operating speed :
0~300rpm
Outer diameter :
Ø60mm
Contact material :
Precious Metal
Housing material :
Aluminium Alloy
Lead wire size & length :
As customized
Description

HDMI Slip Ring combine Power Ethernet and USB Signals for High Definition head

ECN000-02P3-01EG-01U2-01HD is CENO HDMI Signal Slip Ring combine Power, Ethernet and USB for Radar communication. HD slip rings include SDI HD and HDMI, which can transmit electrical signals, HD video signals, and high-speed digital signals at the same time, meeting EMC electromagnetic compatibility requirements. CENO high-definition slip rings use the leading domestic military technology and have the advantages of stable transmission, ultra-low signal attenuation loss and transmission fluctuation. For more information please contact us.

Features

  • Protection grade IP50 - IP68
  • advantages of stable transmit, ultra-low signal attenuation loss and transmission fluctuation
  • Install easy & Free maintenance

Applications

  • Instrument and apparatus
  • Turntable testing machine
  • High Definition head
  • Photoelectric pod
  • Radar communication

Optional

  • Circuit, Voltage, Current
  • Signals and data
  • Contact / Housing Materials
  • Protection grade
  • Working speed & temperature




Specification

ECN000-02P3-01EG-01U2-01HD Specification
Current & Circuits 2 * 12.5A; 1 * 1000M Ethernet; 1 * USB2.0 Signal; 1 * HDMI
Rating Voltage 0 ~ 24VAC/VDC
Dielectric strength ≥300VAC@50Hz
Isolation resistance ≥100MΩ@300VDC
Contact resistance wave ≤ 30mΩ
Working temperature -20°C~+60°C
Working humidity 60 %RH
IP protection grade IP52
Operating speed 0~300rpm
Outer diameter Ø60mm
Contact material Precious Metal / Gold to gold
Housing material Aluminium Alloy
Lead wire size & length As customized

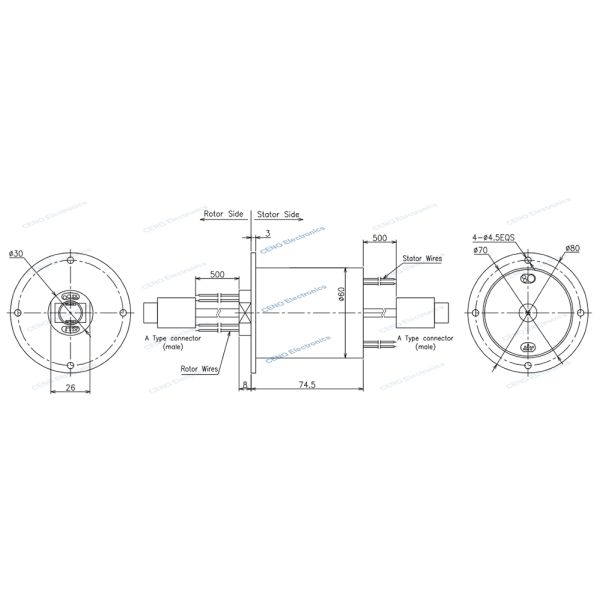

Outline Drawing

HDMI Slip Ring combine Power Ethernet and USB Signals for High Definition head




Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

HDMI Slip Ring combine Power Ethernet and USB Signals for High Definition head

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

HDMI Slip Ring combine Power Ethernet and USB Signals for High Definition head

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
