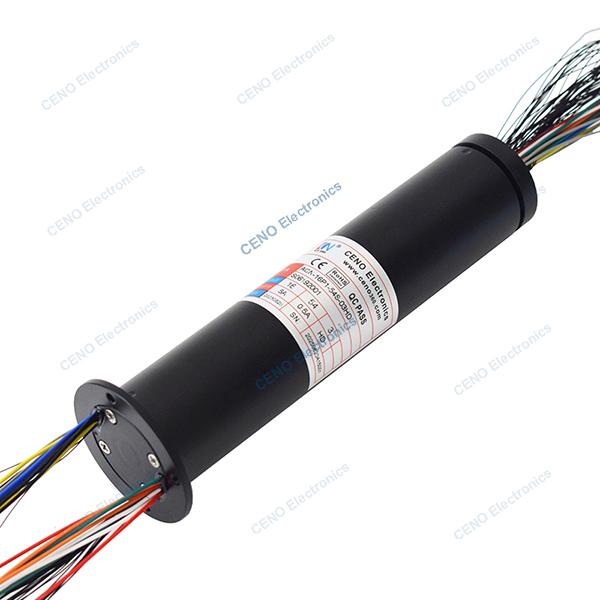

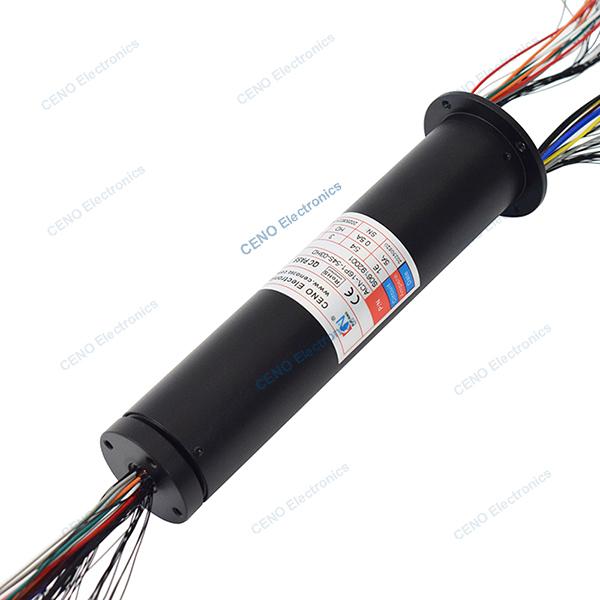

High Definition HD-SDI Signal Slip Ring with 73 circuits Electric Power
High Definition HD-SDI Signal Slip Ring with 73 circuits Electric Power
High Definition HD-SDI Signal Slip Ring with 73 circuits Electric Power
High Definition HD-SDI Signal Slip Ring with 73 circuits Electric Power
Specifications
Brand Name :
CENO
Model Number :
ACN-16P1-54S-03HD
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal, Western Union
Supply Ability :
500pcs per month
Delivery Time :
1 week
Packaging Details :
Carton/As request
Circuit & curren :
16 * 5A; 54 * 0.5A; 3 Group * HD-SDI
Voltage :
0 ~ 24 VAC/VDC
Dielectric strength :
≥100VAC@50Hz
Isolation resistance :
≥10MΩ@100VDC
Contact resistance wave :
≤ 5mΩ
Working temperature :
-20°C~+60°C
Working humidity :
60 %RH
IP protection grade :
IP00
Operating speed :
0~250rpm
Outer diameter :
Ø40mm
Contact material :
Precious Metal
Housing material :
Aluminium Alloy
Lead wire size & length :
As customized
Description

High Definition HD-SDI Signal Slip Ring with 73 circuits Electric Power

ACN-16P1-54S-03HD is CENO HD-SDI signal slip ring combine circuits electric power, signal and 3 groups HD-SDI signal for security monitoring. Goal of HD-SDI signal slip ring is high quality, stable, long-distance video signal transmission in professional broadcast and film and television production environments. It is designed to connect professional equipment such as cameras, switchers, recorders, matrices, monitors, etc. Requiring extremely high reliability and anti-interference capability.

Features

  • Excellent shielding and strong resistance & high reliability
  • Low contact resistance, compact structure and stable performance
  • Install easy & Free maintenance

Applications

  • HD security monitoring
  • VR application
  • High Definition head
  • Photoelectric pod
  • Radar communication

Optional

  • Circuit, Voltage, Current
  • Signals and data
  • Contact / Housing Materials
  • Protection grade
  • Working speed & temperature

Specification

ACN-16P1-54S-03HD

 Specification
Current & Circuits 16 * 5A; 54 * 0.5A; 3 Group * HD-SDI
Rating Voltage 0 ~ 24 VAC/VDC
Dielectric strength ≥100VAC@50Hz
Isolation resistance ≥10MΩ@100VDC
Contact resistance wave ≤ 5mΩ
Working temperature -20°C~+60°C
Working humidity 60 %RH
IP protection grade IP00
Operating speed 0~250rpm
Outer diameter Ø40mm
Contact material Precious Metal
Housing material Aluminium Alloy
Lead wire size & length As customized

Outline Drawing

High Definition HD-SDI Signal Slip Ring with 73 circuits Electric Power

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

High Definition HD-SDI Signal Slip Ring with 73 circuits Electric Power

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

High Definition HD-SDI Signal Slip Ring with 73 circuits Electric Power

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
