HDMI Capsule Slip Ring with Electric Power & 1000M Ethernet for Drone
HDMI Capsule Slip Ring with Electric Power & 1000M Ethernet for Drone
HDMI Capsule Slip Ring with Electric Power & 1000M Ethernet for Drone
HDMI Capsule Slip Ring with Electric Power & 1000M Ethernet for Drone
Specifications
Brand Name :
CENO
Model Number :
ACN25-04P1-24S-01EG-01HD
Certification :
CE,RoHS,ISO9001,UL
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
T/T,Paypal,Western Union
Supply Ability :
500pcs per month
Delivery Time :
1 week
Packaging Details :
Carton/As request
Circuit & curren :
4 * 5A; 20 * Signal; 1 * RS485; 1*HD-SDI; 1 * 1000M Ethernet Signal
Voltage :
0 ~ 110 VAC/VDC
Dielectric strength :
≥200VAC@50Hz; ≥100VAC@50Hz
Isolation resistance :
≥50MΩ@200VDC; ≥10MΩ@100VDC
Contact resistance wave :
≤ 35mΩ
Working temperature :
-20°C~+60°C
Working humidity :
60 %RH
IP protection grade :
IP40
Operating speed :
0~200rpm
Outer diameter :
Ø25mm
Contact material :
Precious Metal
Housing material :
Aluminium Alloy
Lead wire size & length :
As customized
Description

HDMI Capsule Slip Ring with Electric Power & 1000M Ethernet for Drone

ACN25-04P1-24S-01EG-01HD is CENO Capsule slip ring with HDMMI signal. HD slip rings include SDI HD and HDMI, which can transmit electrical signals, HD video signals, and high-speed digital signals at the same time, meeting EMC electromagnetic compatibility requirements. CENO’s high-definition slip rings use the leading domestic defance technology and have the advantages of stable transmission, ultra-low signal attenuation loss and transmission fluctuation. For more information please contact us.

Features

  • Support video standards up to 2K @ 90Hz, No flash screen no frame loss
  • Compact structure can combine kinds data, signal and electric power
  • Install easy & Free maintenance


Applications

  • Automatic machine
  • Aircraft models
  • Cable equipment
  • Special vehicles and ships
  • Medical equipment


Optional

  • Circuit, Voltage, Current
  • Signals and data
  • Contact / Housing Materials
  • Protection grade
  • Working speed & temperature




Specification

ACN25-04P1-24S-01EG-01HD Specification

Current & Circuits

4 * 5A; 20 * Signal; 1 * RS485; 1*HD-SDI; 1 * 1000M Ethernet Signal

Rating Voltage

0 ~ 110 VAC/VDC

Dielectric strength

≥200VAC@50Hz; ≥100VAC@50Hz

Isolation resistance

≥50MΩ@200VDC; ≥10MΩ@100VDC

Contact resistance wave

≤ 35mΩ

Working temperature

-20°C~+60°C

Working humidity

60%RH

IP protection grade

IP40

Operating speed

0~200rpm

Outer diameter

Ø25mm

Contact material

Precious Metal

Housing material

Aluminium Alloy

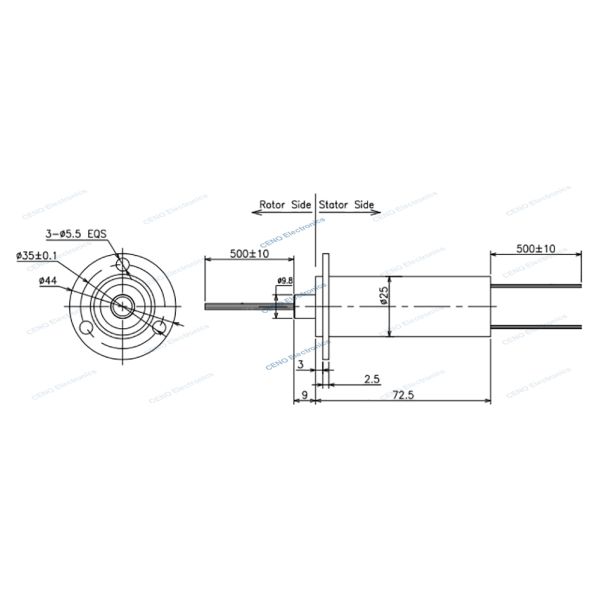

Outline Drawing

HDMI Capsule Slip Ring with Electric Power & 1000M Ethernet for Drone




Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


Certification

ISO9001,CE,RoHS,UL,Explosion-proof

HDMI Capsule Slip Ring with Electric Power & 1000M Ethernet for Drone


CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.


Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.



Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
