Siemens 3RV1011-1EA15 Thermal Magnetic Circuit Breaker 2.8~4A 690VAC DIN Rail Mount
Siemens 3RV1011-1EA15 Thermal Magnetic Circuit Breaker 2.8~4A 690VAC DIN Rail Mount
Siemens 3RV1011-1EA15 Thermal Magnetic Circuit Breaker 2.8~4A 690VAC DIN Rail Mount
Siemens 3RV1011-1EA15 Thermal Magnetic Circuit Breaker 2.8~4A 690VAC DIN Rail Mount
Specifications
Brand Name :
SIEMENS
Model Number :
3RV1011-1EA15
Certification :
CE
Place of Origin :
Germany
MOQ :
1
Price :
$60
Payment Terms :
T/T,L/C,Western Union
Supply Ability :
100
Delivery Time :
3 working days
Packaging Details :
new and original package
Description

Siemens Circuit Breaker 3RV1011-1EA15 Thermal Magnetic 2.8~4A 690VAC Rocker DIN


1.Description.


Brand: Siemens
Part Number # : 3RV1011-1EA15
SKU #: 2401138
Amperage Rating: 4 A
Auxiliary Contact Rating: 2 A at 24 VAC, 1 A at 24 VDC, 2 A at 24/110/120/125 VAC, 0.5 A at 230 VAC, 1 A at 24 VDC, 0.15 A at 60 VDC
Dimensions: 90 mm H x 45 mm W x 75 mm D, 90 mm H x 45 mm W x 81 mm D
Enclosure Type: IP00/IP20, IP20
Frequency Rating: 50 to 60 Hz, 50/60 Hz
Interrupt Rating: 2/3/100 kA
Number of Poles: 3
Phase: 3
Series: 3RV1, 3RV1011
Temperature Rating (Degrees F): -20 to 60 deg C
Trip Type: Class 10, Thermal Magnetic, Thermal/Magnetic
Type: SZ S00 Class 10
Connection type: Screw, Screw Terminal
Country of origin: DE, US
Mounting type: DIN Rail/Snap-On/Threaded, Threaded/Snap-On
Manufacturer Name: Siemens
UNSPSC: 39121601
UPC: 00754554885650


2. 3RV1011-1EA15 Item Features

  • Size S00 circuit breaker provides overload protection
  • Has phase disturbance recognition
  • Transverse auxiliary switch with NO/1NC contacts
  • Features trip indicator
  • Screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022
  • 100 kA standard breaking capacity
  • 6000 V surge voltage resistance
  • 25g/11 ms resistance against shock
  • Finger-safe is protection against electrical shock
  • 2 A at 24 VAC/0.5 A at 230 VAC, 1 A at 24 VDC/0.15 A at 60 VDC auxiliary contact


3. Environment related


WEEE (2012/19/EU) Take-Back Obligations Yes
Compliance with the substance restrictions according to RoHS directive Since: 01.01.2013
REACH Art. 33 Duty to inform according to the current list of candidates Lead CAS-No. 7439-92-1 > 0,1 % (w / w)
SCIP Number 5fa12c45-f89e-4b44-a8b0-f8538138c3cf


4.Classification


Version : 14, Classification : 27-37-04-01
Version : 12, Classification : 27-37-04-01
Version : 9.1, Classification : 27-37-04-01
Version : 9, Classification : 27-37-04-01
Version : 8, Classification : 27-37-04-01
Version : 7.1, Classification : 27-37-04-01
Version : 6, Classification : 27-37-04-01
Version : 10, Classification : EC000074
Version : 9, Classification : EC000074
Version : 8, Classification : EC000074
Version : 7, Classification : EC000074
Version : 4, Classification : 4845
Version : 15, Classification : 39-12-16-01


5.Alternative products


3RV2011-1EA15
3RV1011-1EA10

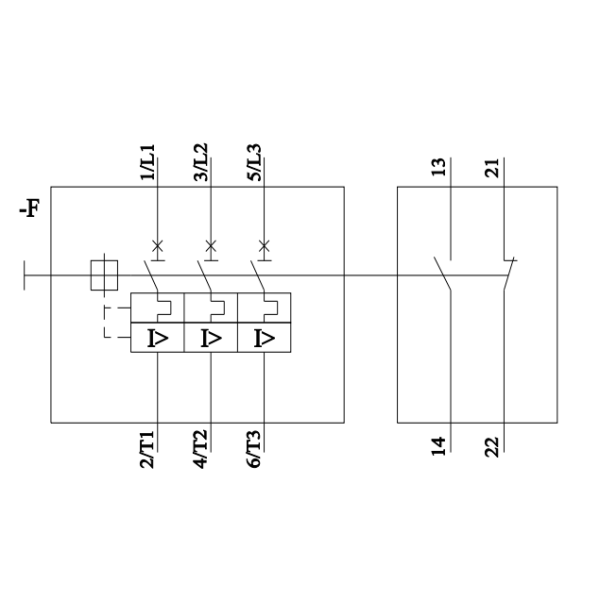

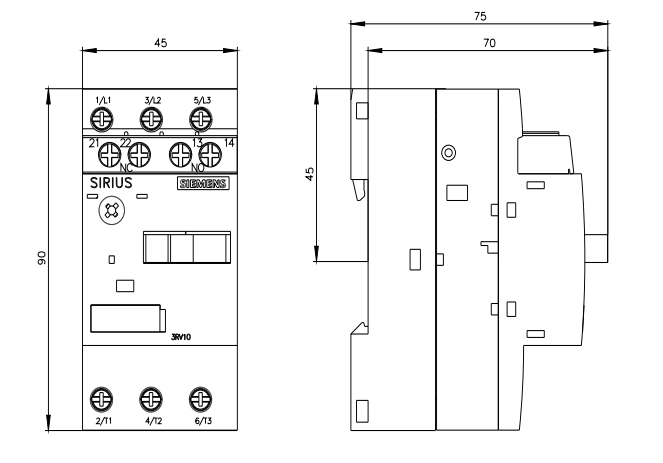

6.Drawing of 3RV1011-1EA15


Siemens 3RV1011-1EA15 Thermal Magnetic Circuit Breaker 2.8~4A 690VAC DIN Rail Mount

Siemens 3RV1011-1EA15 Thermal Magnetic Circuit Breaker 2.8~4A 690VAC DIN Rail Mount
