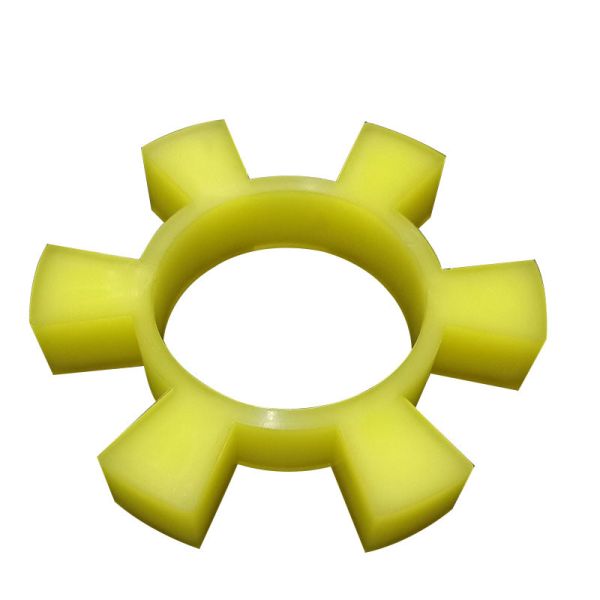

T Type PU Coupling Spider with 90-98 Shore A Hardness and 12-50Mpa Tensile Strength in Standard Sizes
T Type PU Coupling Spider with 90-98 Shore A Hardness and 12-50Mpa Tensile Strength in Standard Sizes
T Type PU Coupling Spider with 90-98 Shore A Hardness and 12-50Mpa Tensile Strength in Standard Sizes
T Type PU Coupling Spider with 90-98 Shore A Hardness and 12-50Mpa Tensile Strength in Standard Sizes
T Type PU Coupling Spider with 90-98 Shore A Hardness and 12-50Mpa Tensile Strength in Standard Sizes
T Type PU Coupling Spider with 90-98 Shore A Hardness and 12-50Mpa Tensile Strength in Standard Sizes
T Type PU Coupling Spider with 90-98 Shore A Hardness and 12-50Mpa Tensile Strength in Standard Sizes
T Type PU Coupling Spider with 90-98 Shore A Hardness and 12-50Mpa Tensile Strength in Standard Sizes
T Type PU Coupling Spider with 90-98 Shore A Hardness and 12-50Mpa Tensile Strength in Standard Sizes
T Type PU Coupling Spider with 90-98 Shore A Hardness and 12-50Mpa Tensile Strength in Standard Sizes
Specifications
Hardness :
80-98shore a
Color :
yellow,red,purple,black
Size :
standard size
Density :
1.25g/cm³
Brand Name :
3Arubber
Model Number :
3A2006
Certification :
ROHS/FCC/SGS
Place of Origin :
China
MOQ :
100pieces
Price :
neogation
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
10000kgs per month
Delivery Time :
10 working days after recieved your payment
Packaging Details :
Packed in cartons
Elongation :
650%
Surface :
smooth
Tensile Strength :
12-50Mpa
Type :
T type
Description
All Kinds of Type PU Spider 90-98 Shore A Standard Size
Comprehensive range of polyurethane and rubber coupling spiders available in standard sizes with 90-98 Shore A hardness.
Standard Polyurethane Coupling Sizes
  • GR Series: GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
  • MT Series: MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13
  • HRC Series: HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
  • L Series: L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276
  • FALK-R Series: 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R
Standard Rubber Coupling Sizes
  • Hb Series: Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
  • HRC Series: HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
  • L Series: L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225
  • NM Series: NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
  • Gear Series: 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J
Custom sizes available according to buyer's drawings and specifications.
When requesting a quote, please confirm product number and required quantity.
Material Specifications
Material: NBR, CSM/SBR or TPU
Color: Black, Yellow
Hardness: 80-90 Shore A
Size Range: T40-210
Working Temperature: -20°C to +100°C
Product Features
  • T type rubber coupling, T type polyurethane coupling, T type PU coupling
  • High-quality polyurethane or rubber materials
  • Excellent stability and performance
  • Easy to maintain and install
  • ISO9001-2000 certified manufacturing
Coupling Types Available
  • Jaw coupling / SBT coupling
  • Flange cast iron with insert rubber
  • Taper bore universal series
  • Keyway dimensions conform to DIN6885, GB1095-1979 standards
Pricing & Dimensions
Item No. OD (mm) ID (mm) Thickness (mm) USD/Piece (PU) USD/Piece (Rubber)
T40 US$0.18
T45 45 20 10 US$0.18
T50 50 US$0.18
T55 55 26 10 US$0.18
T60 60 26 11 US$0.21
T65 65 30 15 US$0.21
T70 70 32 16 US$0.21
T75 75 36 17 US$0.28 US$0.14
T80 80 36 18 US$0.28 US$0.16
T85 85 41 18 US$0.30 US$0.18
T90 90 41 18 US$0.39 US$0.21
T95 95 45 18 US$0.39 US$0.23
T100 100 54 22 US$0.49 US$0.26
T105 105 54 22 US$0.53 US$0.28
T108 108 52 22 US$0.62 US$0.28
T110 110 55 22 US$0.71 US$0.30
T115 115 55 23 US$0.85 US$0.34
T120 120 55 24 US$0.88 US$0.35
T125 125 60 25 US$0.97 US$0.44
T130 130 60 25 US$1.04 US$0.49
T135 135 60 25 US$1.15 US$0.53
T140 140 70 26 US$1.18 US$0.62
T145 145 72 27 US$1.24 US$0.71
T150 150 76 27 US$1.34 US$1.06
T154 154 78 26 US$1.76 US$1.24
T170 170 80 28 US$5.29 US$1.59
T185 185 113 40 US$5.65
T190 190 0 0 US$6.18
T210 210 100 36 US$7.06 US$3.18
