Specifications
Brand Name :
3A Rubber
Model Number :
3A2006
Place of Origin :
China
MOQ :
1piece
Price :
USD1-10.00 per piece
Supply Ability :
10000pieces/month
Delivery Time :
5-10days
Packaging Details :
Packing in Cartons
Color :
Black Color
Size :
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
Payment Terms :
L/C,D/P,T/T,Western Union,Paypal
Tensile Strength :
8Mpa
Moq :
1piece
Density :
1.4g/cm3
Elongation :
300%
Material :
Black Rubber or Polyurethane
Type :
HRC Type
Hardness :
Rubber 70Shore A, Polyurethane 90Shore A
Description
HRC Rubber Polyurethane Coupling Spider
Product Overview

HRC Rubber Spider, HRC Spider, Polyurethane Spider, PU Spider available in HRC70, HRC90, HRC110, HRC130, HRC150, HRC180 hardness grades with 1.4g/cm³ density.

HRC Series Dimensions
Item HRC280 HRC230 HRC180 HRC150 HRC130 HRC110 HRC90 HRC70
OD (mm) 252 201 160 133 115.3 95.8 72.4 58.3
ID (mm) 119.4 97 76 62 49.4 43.7 31.2 29.6
Thickness (mm) 50.4 42.3 32 28 22 19.4 15.4 11.9
Weight (g) 1500 780 400 270 155 90 55 20

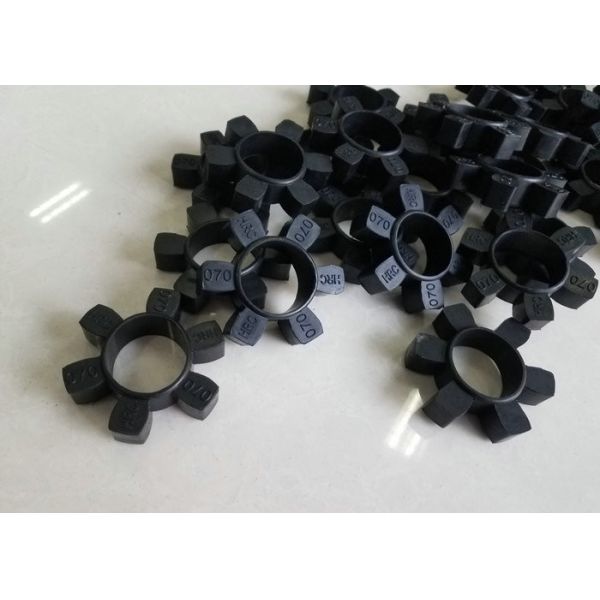

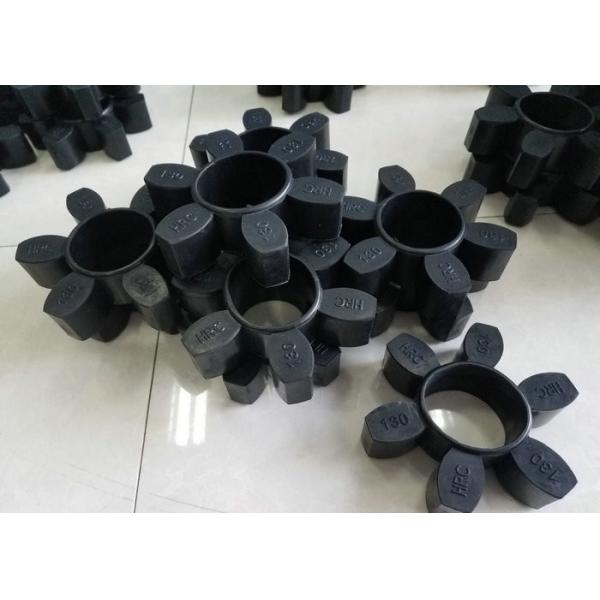

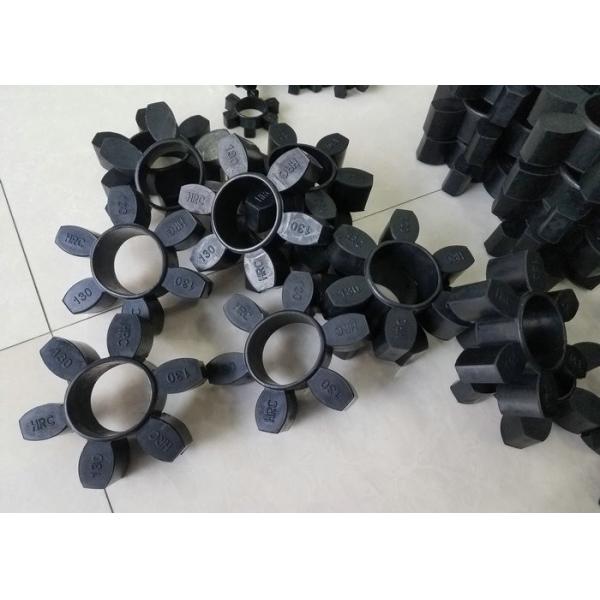

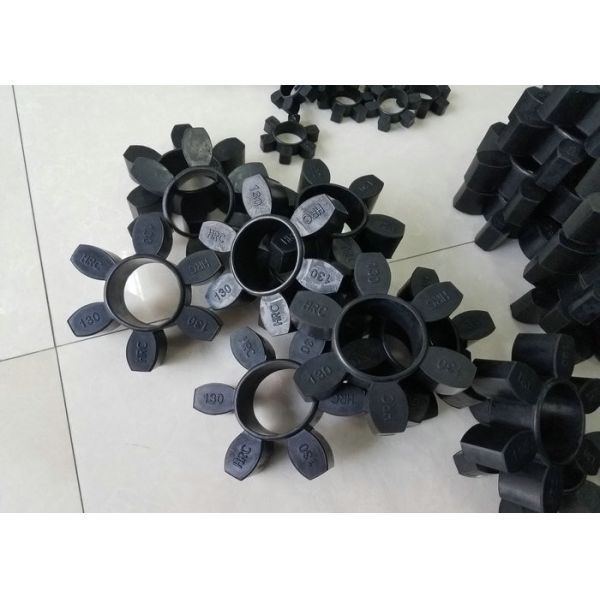

Product Images
HRC Rubber Polyurethane Coupling Spider HRC70 HRC90 HRC110 Size with 1.4g/cm3 Density and Black Rubber or Polyurethane Material HRC Rubber Polyurethane Coupling Spider HRC70 HRC90 HRC110 Size with 1.4g/cm3 Density and Black Rubber or Polyurethane Material HRC Rubber Polyurethane Coupling Spider HRC70 HRC90 HRC110 Size with 1.4g/cm3 Density and Black Rubber or Polyurethane Material
Product Description

Our polyurethane and rubber couplings are manufactured using injection molding with high-quality TPU material or molded CSM/SBR. Designed specifically for all types of metal shaft couplings, these products deliver exceptional performance including high tensile strength, superior wear resistance, excellent elastic resilience, water resistance, oil resistance, outstanding fatigue resilience, and high impact resistance.

We maintain comprehensive mold sets and supply a full range of coupling series including GR, GS, MT, ML, MH, Hb, HRC, L, T, NM, and Gear J series with superior quality and extensive manufacturing experience. Suitable for all types of industrial metal shaft coupling applications.

Technical Specifications
  • Material: TPU, CSM/SBR, NBR, nylon, etc.
  • Color: Yellow, red, purple, green, black, beige, etc.
  • Surface: Smooth
  • Tensile Strength: 8-55 MPa
  • Hardness: 70-98 Shore A
  • Elongation: 400%-650%
  • Density: 1.25 g/cm³
  • Elasticity Impact: >25%
  • Tear Strength: 35-155 KN/m
  • Akron Abrasion Loss: <0.05 cm³/1.61 km
  • Compression Set (22h*70°C): <10%
  • Working Temperature: 120°C
Standard Sizes Available

Polyurethane Coupling Series: GR14-GR180, GS14-GS180, MT1-MT13, ML1-ML13, MH45-MH200, HRC70-HRC280, L35-L276, FALK-R 10R-80R, SBT T40-T210

Rubber Coupling Series: Hb80-Hb315, HRC70-HRC280, L35-L225, NM50-NM265, NOR-MEX series, FCL1#-FCL8#, FCL90-FCL630, Gear 3J-14J, Hytre 4H-11H, Tyre F40-F160, SBT T75-T210

Nylon Coupling Series: NL1-NL10, M28-M65

Custom sizes available according to buyer's drawings and specifications.

When submitting an inquiry, please confirm the product number and required quantity.
