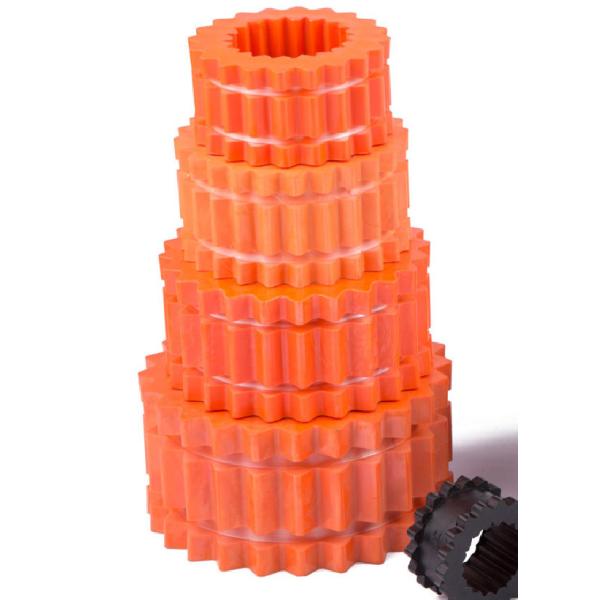

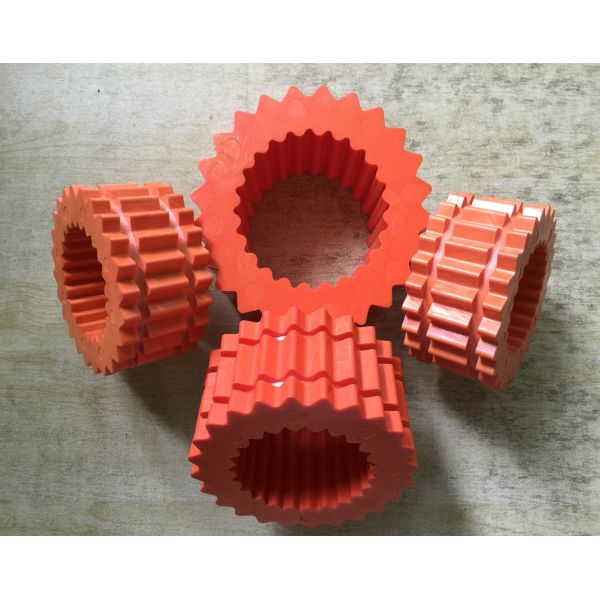

High Strength Wear Resistant Oil Resistant Polyurethane Coupling and Rubber Coupling Hub
High Strength Wear Resistant Oil Resistant Polyurethane Coupling and Rubber Coupling Hub
High Strength Wear Resistant Oil Resistant Polyurethane Coupling and Rubber Coupling Hub
High Strength Wear Resistant Oil Resistant Polyurethane Coupling and Rubber Coupling Hub
High Strength Wear Resistant Oil Resistant Polyurethane Coupling and Rubber Coupling Hub
High Strength Wear Resistant Oil Resistant Polyurethane Coupling and Rubber Coupling Hub
High Strength Wear Resistant Oil Resistant Polyurethane Coupling and Rubber Coupling Hub
High Strength Wear Resistant Oil Resistant Polyurethane Coupling and Rubber Coupling Hub
High Strength Wear Resistant Oil Resistant Polyurethane Coupling and Rubber Coupling Hub
High Strength Wear Resistant Oil Resistant Polyurethane Coupling and Rubber Coupling Hub
Specifications
Color :
Grey
Name :
Coupling Hub
Brand Name :
3A Rubber
Model Number :
3A2006
Certification :
ISO9001
Place of Origin :
China
MOQ :
10sets
Price :
USD70.00/set
Supply Ability :
10000sets/month
Delivery Time :
7-15days
Packaging Details :
packing in cartons
Keyword :
Coupling hub 8S
Material :
Cast Iron
Payment Terms :
L/C,D/P,T/T,Western Union
Description
Pipe High Strength Rubber Coupling Wear Resistant

8J, 8JE, 8H, 8HS, 8S Rubber Coupling, Metal Coupling, Coupling Hubs (3-8J)

The polyurethane elastomeric is a new polymer synthetic material between rubber and plastic, combining the high strength of plastic with the high elasticity of rubber.

Key Characteristics
  • Wide hardness range (Shore A10-D80) while maintaining rubber elongation and resilience
  • High strength with superior tensile strength, tear strength, and load carrying capacity
  • Exceptional wear resistance (0.01-0.10cm³/1.61km), approximately 3-5 times better than standard rubber
  • Excellent oil resistance due to low affinity with non-polar mineral oils
  • Good resistance to oxygen and ozone
  • Superior vibration absorption performance for damping and buffering applications
  • Excellent low temperature performance
  • High radiation resistance with satisfactory performance at 10-10 deg radiation dose
  • Good machining performance
Product Specifications
Material TPU, CSM/SBR, NBR, nylon etc.
Color Yellow, red, purple, green, black, beige etc.
Surface Smooth
Tensile Strength 8-55 Mpa
Hardness 70-98 Shore A
Elongation 400%-650%
Density 1.25 g/cm³
Elasticity Impact >25%
Tear Strength 35-155 KN/m
Akron Abrasion Loss <0.05 cm³/1.61km
Compression Set (22h*70°C) <10%
Working Temperature 120°C
Standard Sizes - Polyurethane Coupling
GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
GS5, GS7, GS9, GS12, GS14, GS19, GS24, GS28, GS38, GS42, GS48, GS550, GS65, GS75
MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13
ML1, ML2, ML3, ML4, ML5, ML6, ML7, ML8, ML9, ML10, ML11, ML12, ML13
MH45, MH55, MH65, MH80, MH90, MH115, MH130, MH145, MH175, MH200
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276
FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R
SBT T40, T45, T50, T55, T60, T65, T70, T75, T80, T85, T90, T95, T100, T105, T108, T110, T115, T120, T125, T130, T135, T140, T145, T150, T154, T170, T185, T190, T210
Joong Ang CR0050, 0070, 0010, 0020, 2035, 2035A, 3545, 4560, 6070, 7080
MS0511, MS0714, MS1119, MS1424, MS1928, MS1938, MS2845, MS3860, MS4275, MS6510
D14, D14L, D20, D25, D30, D30L, D35, D40, D45, D49, D55, D65
5H, 6H, 7H, 8H, 9H, 10H, 11H
Standard Sizes - Rubber Coupling
Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225
NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
NOR-MEX168-10, NOR-MEX194-10, NOR-MEX214-10, NOR-MEX240-10, NOR-MEX265-10
FCL1#, FCL2#, FCL3#, FCL4#, FCL5#, FCL6#, FCL7#, FCL8#
FCL90, FCL100, FCL112, FCL125, FCL140, FCL160, FCL180, FCL200, FCL224, FCL250, FCL280, FCL315, FCL335, FCL400, FCL450, FCL560, FCL630
Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J, 12J, 13J, 14J
Hytre 4H, 5H, 6H, 7H, 8H, 9H, 11H
Tyre F40, F50, F60, F70, F80, F90, F100, F110, F120, F140, F160
SBT T75, T80, T85, T90, T95, T100, T105, T108, T110, T115, T120, T125, T130, T135, T140, T145, T150, T154, T170, T210
FCLpin #1, #2, #3, #4, #5, #6, #8
GR42, GR48, GR55, GR65, GR75
DL1, DL2, DL3, DL4, DL5, DL6, DL7, DL8, DL9, DL10, DL11
Standard Sizes - Nylon Coupling
NL1, NL2, NL3, NL4, NL5, NL6, NL7, NL8, NL9, NL10
M28, M32, M38, M42, M48, M58, M65

Packing: Bags, cartons, pallets or crates

Customization: OEM & customized sizes available upon agreement

Special Supply: All kinds of steel coupling for FCL, NM, MH, HRC, Love Joy, Joongang, Centafelx, XL-GR, Tyre

For more data & information, please contact:

sales@3Arubber.com

When enquiring, please confirm the type, size number and quantity
