Premium Grade Virgin PTFE Rod with Corrosion Resistance and Temperature Resistance from -180°C to +260°C
Premium Grade Virgin PTFE Rod with Corrosion Resistance and Temperature Resistance from -180°C to +260°C
Premium Grade Virgin PTFE Rod with Corrosion Resistance and Temperature Resistance from -180°C to +260°C
Premium Grade Virgin PTFE Rod with Corrosion Resistance and Temperature Resistance from -180°C to +260°C
Premium Grade Virgin PTFE Rod with Corrosion Resistance and Temperature Resistance from -180°C to +260°C
Premium Grade Virgin PTFE Rod with Corrosion Resistance and Temperature Resistance from -180°C to +260°C
Premium Grade Virgin PTFE Rod with Corrosion Resistance and Temperature Resistance from -180°C to +260°C
Premium Grade Virgin PTFE Rod with Corrosion Resistance and Temperature Resistance from -180°C to +260°C
Specifications
tensile strength :
20-30Mpa
break down voltage :
10KV/mm
quality :
premium grade
elongation at break :
200%-320%
hardness :
55+/-5shore D
density :
2.1-2.3g/cm3
material :
virgin PTFE
color :
white, black
Payment Terms :
L/C,T/T,Western Union,Paypal
surface :
smooth/smooth
Brand Name :
3A Rubber
Model Number :
3A3001
Certification :
ROHS/FCC/SGS
Place of Origin :
China
MOQ :
100kgs
Price :
negotiation
Supply Ability :
1000000pieces per month
Delivery Time :
10 working days after received your payment
Packaging Details :
Packed in cartons
temperature resist :
-180°C - +260°C
Description

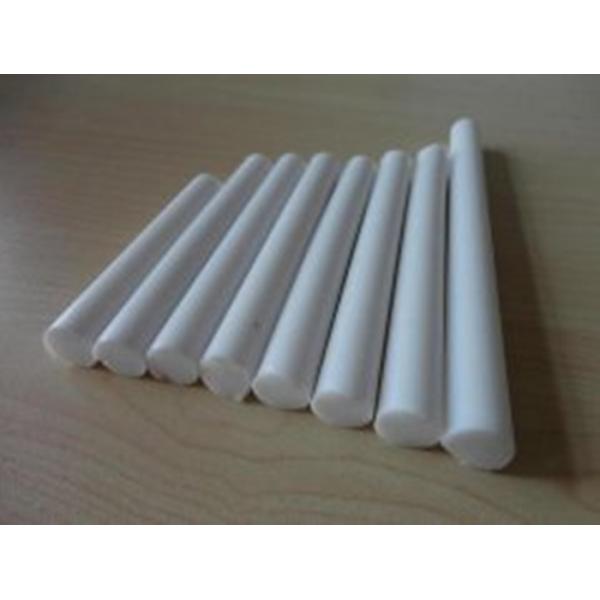

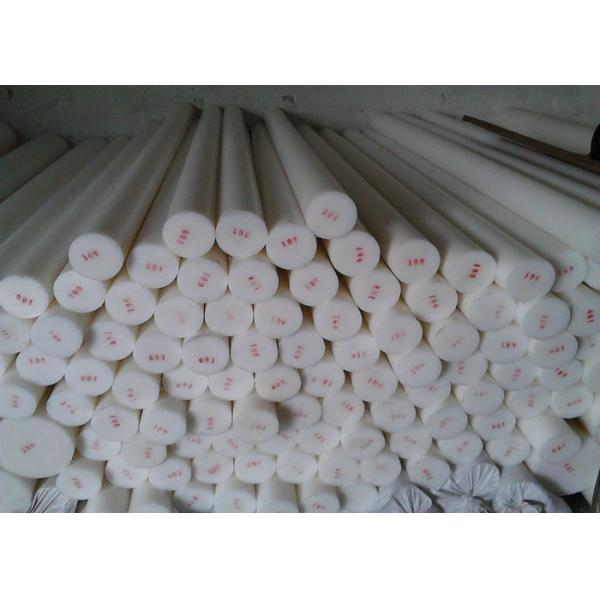

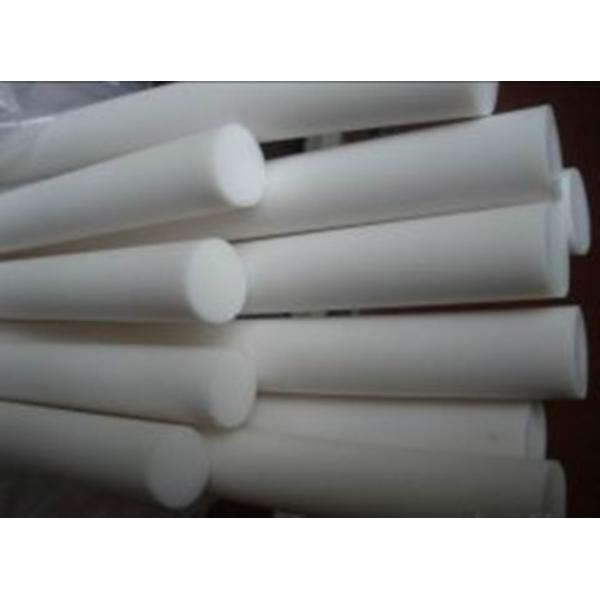

Premium Grade 100% Virgin PTFE Rod
Our white PTFE rods offer exceptional corrosion resistance and are manufactured from 100% virgin polytetrafluoroethylene material. These rods represent the highest quality polymer material for chemical resistance among all known plastics.
Key Features & Benefits
  • Superior chemical resistance - the best among all known plastic materials
  • Excellent weathering resistance and dielectric properties
  • Lowest coefficient of friction among all solid materials
  • Wide operating temperature range: -180°C to +260°C
  • Wax-like non-stick surface prevents material adhesion
  • Outstanding electrical insulation properties
Technical Specifications
MaterialVirgin PTFE
Quality GradePremium
Available ColorsWhite, Black, Brown
Surface FinishSmooth
Tensile Strength20-30 MPa
Hardness55±5 Shore D
Elongation at Break200%
Density2.1-2.3 g/cm³
Breakdown Voltage10 KV/mm
Temperature Resistance-180°C to +260°C
Manufacturing Methods
Our PTFE rods are manufactured using specialized processes based on diameter requirements: Ø4-9mm (paste extruded), Ø10-50mm (ram extruded), and Ø50-300mm (moulded).
Standard Sizes Available
Ø6mm x 1m
Ø7mm x 1m
Ø8mm x 1m
Ø10mm x 1m
Ø12mm x 1m
Ø15mm x 1m
Ø16mm x 1m
Ø18mm x 1m
Ø20mm x 1m
Ø22mm x 1m
Ø25mm x 1m
Ø28mm x 1m
Ø30mm x 1m
Ø32mm x 1m
Ø35mm x 1m
Ø40mm x 1m
Ø45mm x 1m
Ø50mm x 1m
Ø55mm x 1m
Ø60mm x 1m
Ø65mm x 1m
Ø70mm x 1m
Ø75mm x 1m
Ø80mm x 1m
Ø85mm x 1m
Ø90mm x 1m
Ø95mm x 1m
Ø100mm x 1m
Ø105mm x 1m
Ø110mm x 1m
Ø120mm x 1m
Ø125mm x 1m
Ø130mm x 1m
Ø135mm x 1m
Ø140mm x 1m
Ø145mm x 1m
Ø150mm x 1m
Ø160mm x 1m
Ø170mm x 1m
Ø180mm x 1m
Ø190mm x 1m
Ø195mm x 1m
Ø200mm x 1m
Ø210mm x 1m
Ø220mm x 1m
Ø230mm x 1m
Ø250mm x 1m
Ø260mm x 0.3m
Ø270mm x 0.3m
Ø280mm x 0.3m
Ø290mm x 0.3m
Ø300mm x 0.3m
Ø350mm x 0.3m
Ø400mm x 0.3m
Special Options
Black PTFE rods are available with either 3% graphite or 10% carbon fillers for enhanced performance characteristics.
Important: When requesting a quotation, please specify the required color, size, and quantity for accurate pricing and availability.
