Specifications
Material :
TPU
Structure :
Jaw / Spider
Size :
Standard sizes
Standard or nonstandard :
Standard
Flexible or rigid :
Flexible
Product name :
GR90 Spider for TS-B Rotex Jaw Coupling
Brand Name :
3A Rubber
Model Number :
GR, GS
Certification :
ISO9001
Place of Origin :
China
MOQ :
10pieces
Price :
FCA Sanhe China USD2.00/piece
Supply Ability :
1000000pieces/month
Delivery Time :
7-15days
Packaging Details :
packing in cratons
Type :
GR, GS
Color :
Red, Yellow, Green
Service :
OEM or ODM
Hardness :
92, 95, 98shore A
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Description

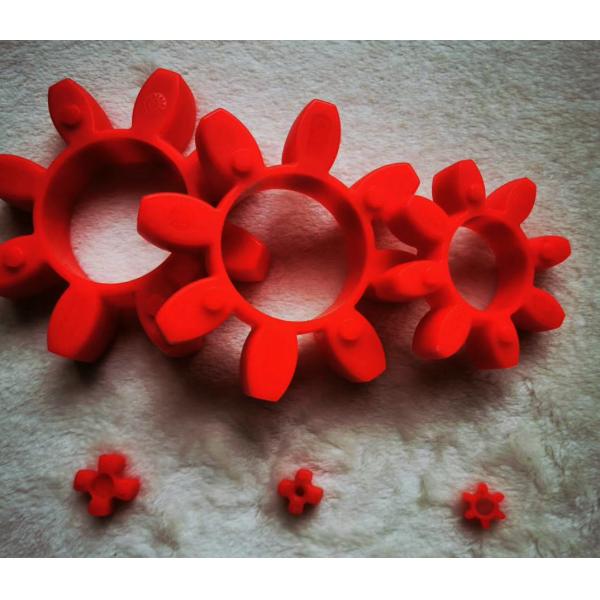

GR GS Polyurethane Coupling Spider Multi Color High Impact Resistant
Product Overview

Polyurethane Coupling Spider, also known as PU Coupling Spider, GR Coupling Spider, and GS Coupling Spider, is manufactured using high-quality TPU material or molded CSM/SBR. These components are specifically designed for various metal shaft couplings, offering exceptional performance characteristics.

Material Properties

Polyurethane elastomer is a synthetic polymer material that combines the high strength of plastic with the high elasticity of rubber. Key characteristics include:

  • Wide hardness range (Shore A10-D80) while maintaining rubber-like elongation and resilience
  • High strength with superior tensile strength, tear strength, and load capacity compared to general rubber
  • Exceptional wear resistance (0.01-0.10cm³/1.61km), approximately 3-5 times better than rubber materials
  • Excellent oil resistance due to high polarity with low affinity for non-polar mineral oils
  • Good resistance to oxygen and ozone
  • Superior vibration absorption performance for damping and buffering applications
  • Good low temperature performance
  • High radiation resistance with satisfactory performance at 10-10 deg radiation dose
  • Excellent machining performance
Technical Specifications
Parameter Specification
Material TPU, CSM/SBR, NBR, nylon etc.
Color Yellow, red, purple, green, black, beige etc.
Surface Smooth
Tensile Strength 8-55 Mpa
Hardness 70-98 Shore A
Elongation 400%-650%
Density 1.25 g/cm³
Elasticity Impact >25%
Tear Strength 35-155 KN/m
Akron Abrasion Loss <0.05 cm³/1.61km
Compression Set (22h*70°C) <10%
Working Temperature 120°C
Standard Sizes Available
Polyurethane Couplings
  • GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
  • GS5, GS7, GS9, GS12, GS14, GS19, GS24, GS28, GS38, GS42, GS48, GS550, GS65, GS75
  • MT1-MT13 Series
  • ML1-ML13 Series
  • MH45-MH200 Series
  • HRC70-HRC280 Series
  • L35-L276 Series
  • FALK-R 10R-80R Series
  • SBT T40-T210 Series
  • Joong Ang CR Series
  • MS0511-MS6510 Series
  • D14-D65 Series
  • 5H-11H Series
Rubber Couplings
  • Hb80-Hb315 Series
  • HRC70-HRC280 Series
  • L35-L225 Series
  • NM50-NM265 Series
  • NOR-MEX Series
  • FCL1#-FCL8# Series
  • FCL90-FCL630 Series
  • Gear 3J-14J Series
  • Hytre 4H-11H Series
  • Tyre F40-F160 Series
  • SBT T75-T210 Series
  • FCLpin #1-#8 Series
  • GR42-GR75 Series
  • DL1-DL11 Series
Nylon Couplings
  • NL1-NL10 Series
  • M28-M65 Series
Additional Information

We provide comprehensive solutions including full sets of injection molds and supply of complete coupling ranges. Our products are suitable for all types of industrial metal shaft coupling applications.

Special supply available for all kinds of steel couplings including FCL, NM, MH, HRC, Love Joy, Joongang, Centafelx, XL-GR, and Tyre series.

Packing options include bags, cartons, pallets, or crates. OEM and customized sizes are available upon agreement.

Important: When making an enquiry, please confirm the type, size number, and quantity required.
