T40-T210 SBT Polyurethane Coupling with 70-98 Shore A Hardness and 22.4-2500NM Torque for Jaw Coupling
T40-T210 SBT Polyurethane Coupling with 70-98 Shore A Hardness and 22.4-2500NM Torque for Jaw Coupling
T40-T210 SBT Polyurethane Coupling with 70-98 Shore A Hardness and 22.4-2500NM Torque for Jaw Coupling
T40-T210 SBT Polyurethane Coupling with 70-98 Shore A Hardness and 22.4-2500NM Torque for Jaw Coupling
T40-T210 SBT Polyurethane Coupling with 70-98 Shore A Hardness and 22.4-2500NM Torque for Jaw Coupling
T40-T210 SBT Polyurethane Coupling with 70-98 Shore A Hardness and 22.4-2500NM Torque for Jaw Coupling
T40-T210 SBT Polyurethane Coupling with 70-98 Shore A Hardness and 22.4-2500NM Torque for Jaw Coupling
T40-T210 SBT Polyurethane Coupling with 70-98 Shore A Hardness and 22.4-2500NM Torque for Jaw Coupling
T40-T210 SBT Polyurethane Coupling with 70-98 Shore A Hardness and 22.4-2500NM Torque for Jaw Coupling
T40-T210 SBT Polyurethane Coupling with 70-98 Shore A Hardness and 22.4-2500NM Torque for Jaw Coupling
Specifications
Payment Terms :
Western Union,L/C,D/P,T/T,Paypal
Type :
SBT type
Material :
TPU or NBR
Tensile Strength :
10-50Mpa
Density :
1.25g/cm3
Elongation :
690% maximum
Size :
T40-T210
Hardness :
70, 90, 95, 98Shore A
Color :
Black, Yellow, Red
Brand Name :
3A Rubber
Model Number :
3A2006
Certification :
ISO9001
Place of Origin :
China
MOQ :
10pieces
Price :
connect with us
Supply Ability :
1000000pieces/month
Delivery Time :
10-20days
Packaging Details :
packing in cartons
Description

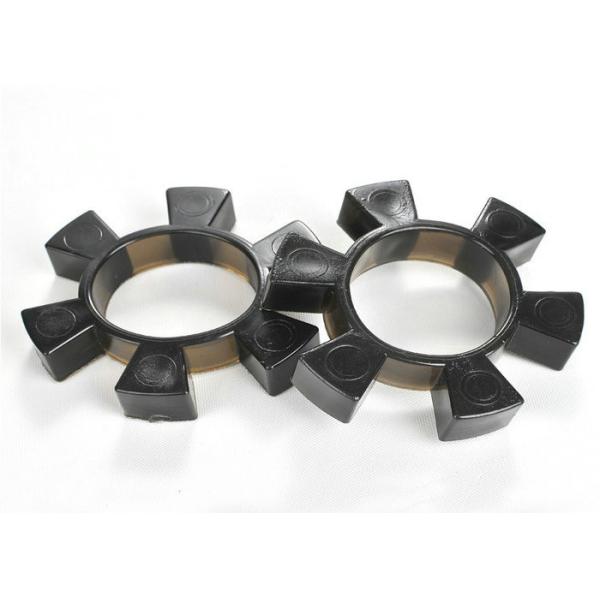

T40 - T210 SBT Polyurethane Coupling Curved Jaw Coupling Yellow
Product Overview

T40 - T210 SBT Elastic Spider, SBT Polyurethane Coupling, SBR Spider Coupling for Jaw Coupling

SBT Type elastic spider is suitable for water pumps and provides mechanical cushioning effect to joint of transmission shaft.

Key Advantages
  • Extremely resistant to wear, oil, ozone and ageing. Also resistant to hydrolysis (ideal for tropical climates)
  • Protect the drive against dynamic overload
  • Good physical properties
  • Easy installation
  • OEM compatible
Technical Specifications
Product Advantage Widely used in all types of water pumps
Easy installation
Material Composition TPU, NBR
Working Temperature -30℃ to +100℃
Product Hardness (Shore A) TPU: 90, 95, 98±2 Shore A
NBR: 70±5 Shore A
Torque 22.4-2500 NM
Size Any regular size or based on customer request
Color Black or natural
Logo Customer logo available
Working Media Water, oil
OEM & ODM Welcome
Sample Lead Time Within 7 days
Production Lead Time 15 days or as per customer's order quantity
Shipping Methods Ocean/air or express available
Delivery Port Sanhe, Beijing or Shanghai
Payment Terms T/T, L/C, Western Union
Standard Sizes - SBT Series
Part Number ID (mm) OD (mm) H (mm)
SBT-40 18 40 10
SBT-45 20 45 10
SBT-56 27 56 15
SBT-62 30 62 15
SBT-65 30 65 15
SBT-75 35 75 15
SBT-79 40 79 15
SBT-90 45 90 18
SBT-94 45 94 18
SBT-104 55 104 23
SBT-108 55 108 24
SBT-126 60 126 28
SBT-133 60 133 25
SBT-154 79 154 27
SBT-170 80 170 28
SBT-175 85 175 30
SBT-180 90 180 30
SBT-200 100 200 36
T40-T210 SBT Polyurethane Coupling with 70-98 Shore A Hardness and 22.4-2500NM Torque for Jaw Coupling
Additional Standard Sizes Available

Polyurethane Coupling: GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180, GS14, GS19, GS24, GS28, GS38, GS42, GS48, GS55, GS65, GS75, GS90, GS100, GS110, GS125, GS140, GS160, GS180, MT1-MT13, ML1-ML13, MH45, MH55, MH65, MH80, MH90, MH115, MH130, MH145, MH175, MH200, HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280, L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276, FALK-R 10R-80R, T40-T210

Rubber Coupling: Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315, HRC70-HRC280, L35-L225, NM50-NM265, Gear 3J-11J

Nylon Coupling: NL1-NL10

Special sizes can be manufactured according to customer drawings and specifications.

When making an inquiry, please confirm product number and quantity for accurate pricing and delivery information.
