Smooth Nylon Plastic Rod with 10KV Breakdown Voltage and 78Mpa Tensile Strength
Smooth Nylon Plastic Rod with 10KV Breakdown Voltage and 78Mpa Tensile Strength
Smooth Nylon Plastic Rod with 10KV Breakdown Voltage and 78Mpa Tensile Strength
Smooth Nylon Plastic Rod with 10KV Breakdown Voltage and 78Mpa Tensile Strength
Smooth Nylon Plastic Rod with 10KV Breakdown Voltage and 78Mpa Tensile Strength
Smooth Nylon Plastic Rod with 10KV Breakdown Voltage and 78Mpa Tensile Strength
Smooth Nylon Plastic Rod with 10KV Breakdown Voltage and 78Mpa Tensile Strength
Smooth Nylon Plastic Rod with 10KV Breakdown Voltage and 78Mpa Tensile Strength
Smooth Nylon Plastic Rod with 10KV Breakdown Voltage and 78Mpa Tensile Strength
Smooth Nylon Plastic Rod with 10KV Breakdown Voltage and 78Mpa Tensile Strength
Specifications
color :
brown, red, beige, yellow
breakdown voltage :
10KV
Payment Terms :
L/C,D/P,T/T,Western Union,paypal
size :
od8-200mm x 1m
surface :
smooth
Brand Name :
3A Rubber
Model Number :
3A6012
Certification :
ISO9001
Place of Origin :
China
MOQ :
100kgs
Price :
USD2.80/kg
Supply Ability :
100000kgs/month
Delivery Time :
10-20days
Packaging Details :
packing in pallets
material :
phenolic+cotton
tensile strength :
78Mpa
Description
Smooth Nylon Plastic Rod 10KV Breakdown Voltage 78Mpa Tensile Strength
phenolic cotton rod, bakelite cotton rod, insulation cotton rod, cotton laminate rod
Phenolic cotton rod is manufactured from cotton cloth impregnated with phenolic resin under high pressure and heat. This material features low water absorption rate, high mechanical strength, excellent electrical performance in both moist and dry environments, high temperature resistance, superior dielectric properties, and excellent mechanical processing capabilities. Ideal for PCB fixtures, ICT fixtures, drilling machine pads, gears, motors, generators, transformers, fixture inverters, switches, and various electrical insulation components.
Product Specifications
Material:
Phenolic resin + cotton fabric
Color:
Brown, beige, yellow, red
Surface:
Smooth
Tensile Strength:
78 MPa
Flexural Strength:
90-110 MPa
Compression Strength:
138 MPa
Breakdown Voltage:
10 KV
Density:
1.25-1.40 g/cm³
Heat Resistance:
B class 130
Size:
OD 8-200mm * 1m
Technical Properties by Grade
Properties Units 3723 3724 3725 3726
Density g/cm³ 1.25-1.40 1.25-1.40 1.25-1.40 1.25-1.40
Water absorption rate (D-24/23) % 1.7 1 1.2 1
Flexural strength MPa 90 95 110 95
Tensile strength MPa 78 - - -
Compression strength (Axial) MPa 138 138 138 138
Breakdown voltage parallel to laminations (in transformer oil) KV 10 10 10 10
Color - Natural Natural Natural Natural

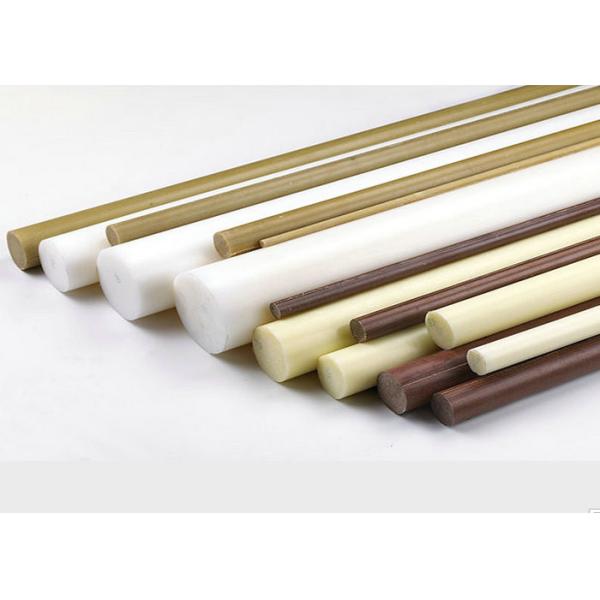

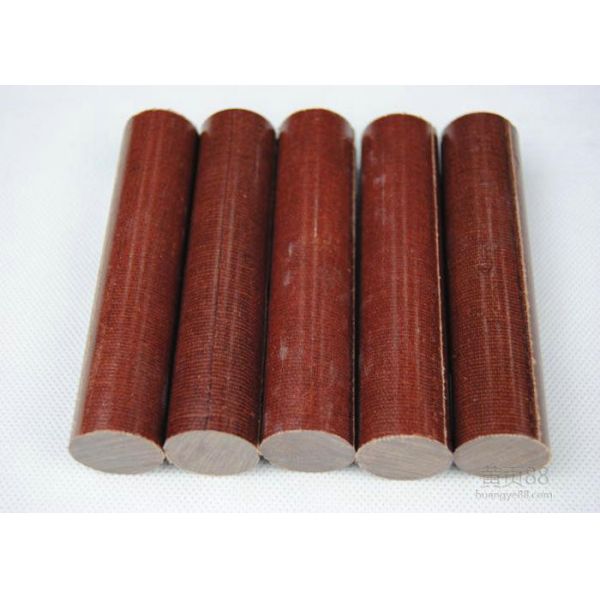

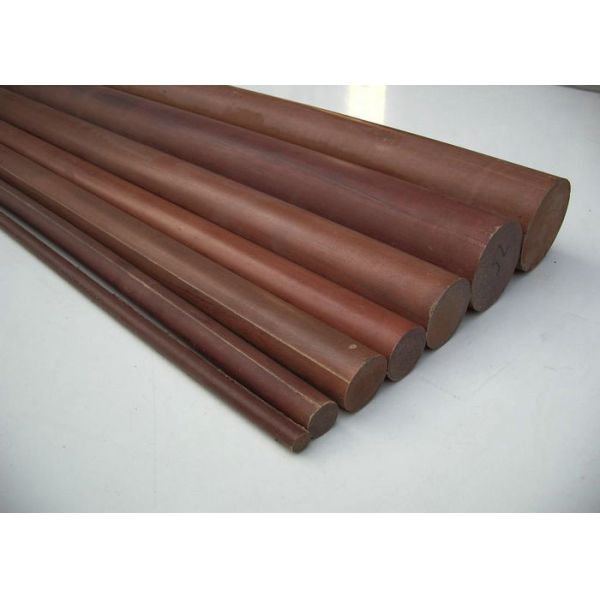

Product Images
Smooth Nylon Plastic Rod with 10KV Breakdown Voltage and 78Mpa Tensile Strength Smooth Nylon Plastic Rod with 10KV Breakdown Voltage and 78Mpa Tensile Strength Smooth Nylon Plastic Rod with 10KV Breakdown Voltage and 78Mpa Tensile Strength Smooth Nylon Plastic Rod with 10KV Breakdown Voltage and 78Mpa Tensile Strength
